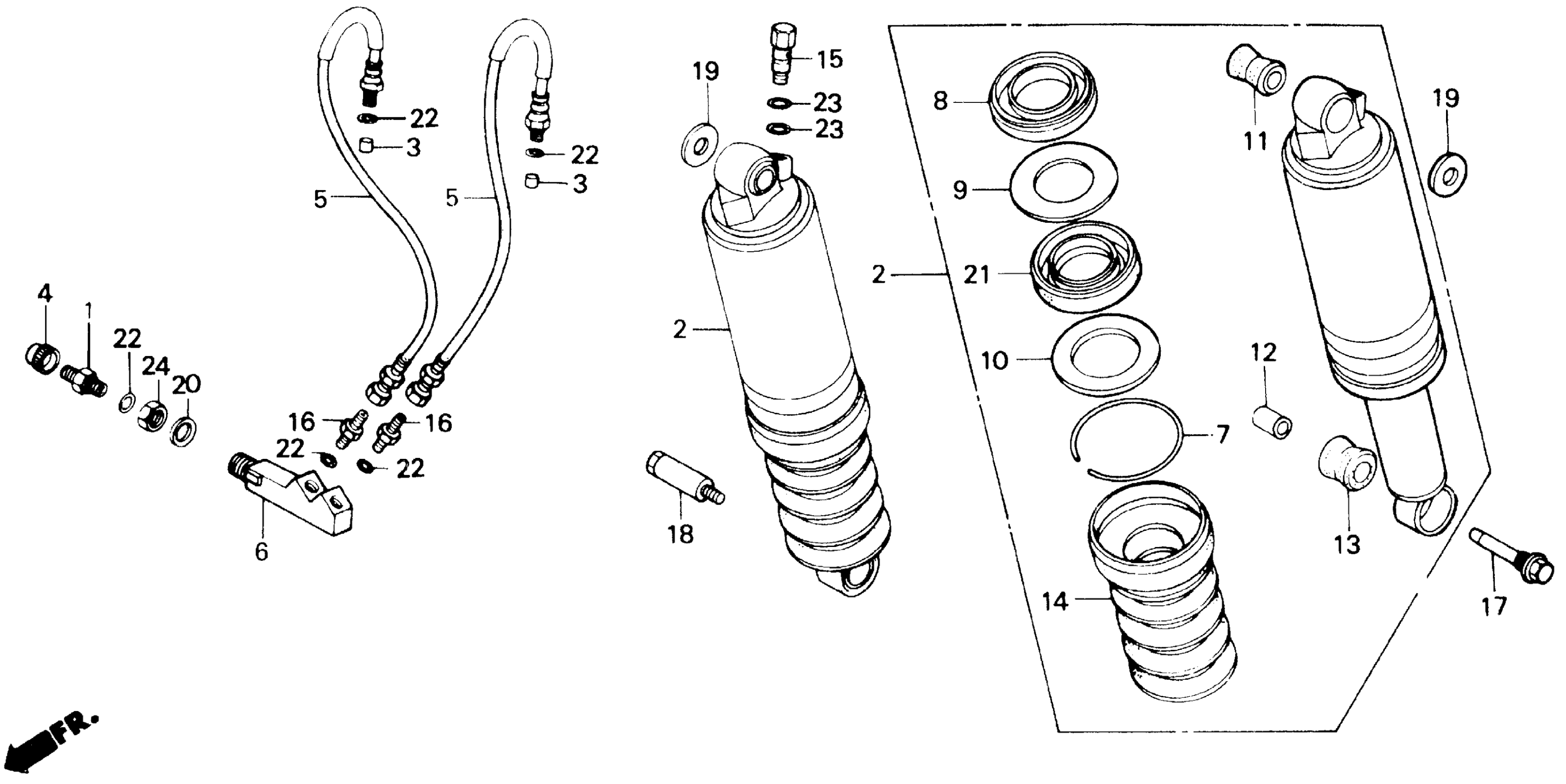

Honda GL1200AA (86) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-GA200536 TO 1HFSC142-GA223987 REAR SHOCK ABSORBER Diagram

VALVE, AIR (SHOWA)

51456-469-013

$33.69

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-MG9-771

Unavailable

CAP, AIR VALVE (SHOWA)

52425-169-003

$4.94

HOSE, AIR (NOT AVAILABLE)

52432-MG9-671

Unavailable

JOINT (THREE-WAY) (NOT AVAILABLE)

52434-MG9-671

Unavailable

RING B, STOPPER (NOT AVAILABLE)

52460-MG9-671

Unavailable

GUIDE, DAMPER CASE

52462-463-003

Unavailable

RING A, BACK-UP

52463-463-003

Unavailable

RING B, BACK-UP (NOT AVAILABLE)

52477-MG9-671

Unavailable

RUBBER, JOINT

52484-292-000

$5.87

COLLAR, RR. SHOCK ABSORBER

52486-MG9-671

$10.62

BUSH, RUBBER (UPPER) (SHOWA)

52489-461-771

$6.34

BOOT, RR. SHOCK ABSORBER

52611-MG9-671

$48.20

CONNECTOR (NOT AVAILABLE)

53140-MG9-671

Unavailable

BOLT, BRAKE STOPPER (NOT AVAILABLE)

90158-MG9-000

Unavailable

BOLT, RR. CUSHION

90159-MG9-000

$17.60

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

WASHER, PLAIN (14MM) (NOT AVAILABLE)

90549-444-000

Unavailable

OIL SEAL (36X66X10.5)

91257-MG9-671

$19.31

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

O-RING (5.8X1.9)

91305-323-000

$2.92

NUT, HEX. (14MM)

94002-14080-0S

$2.08
