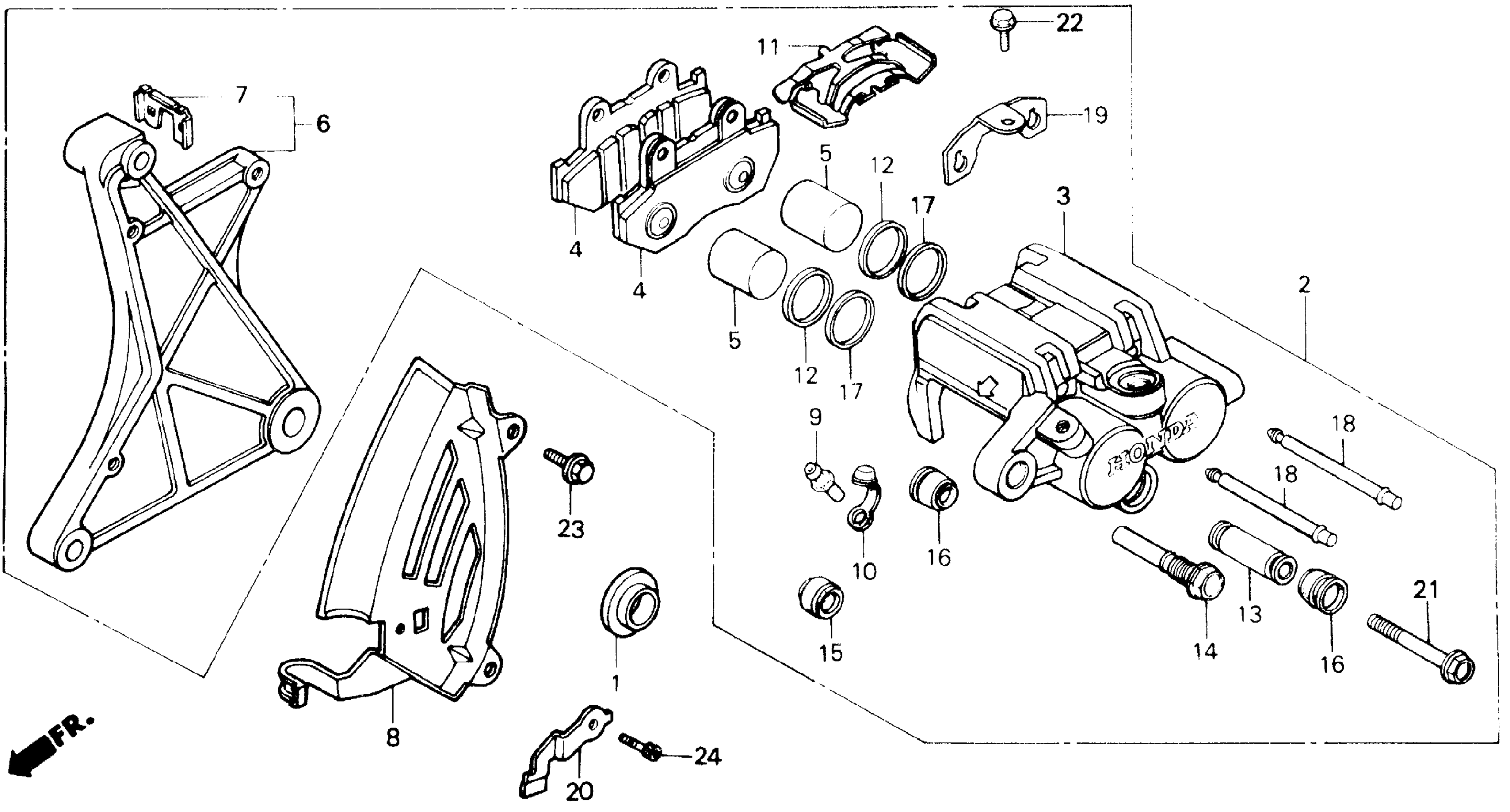

Honda GL1200AA (86) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-GA200536 TO 1HFSC142-GA223987 REAR BRAKE CALIPER Diagram

#

Description
Price

NI

BRAKE PAD SET

06435-MG9-405

Unavailable

NI

BRAKE PAD SET This part replaces 431A0-MG9-007.

06435-MG9-405

Unavailable

1

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42313-MG9-000

Unavailable

2

CALIPER ASSY., RR. This part replaces 43100-MG9-007.

43100-MG9-037

Unavailable

3

CALIPER, RR. (NOT AVAILABLE) This part replaces 43101-MG9-006.

43101-MG9-026

Unavailable

4

PAD, RR. This part replaces 43105-MG9-007.

43105-MG9-017

Unavailable

4

PAD, RR.

43105-MG9-017

Unavailable

5

PISTON

43107-MA7-006

$45.55

6

BRACKET, RR. This part replaces 43110-MG9-006.

43110-MG9-711

Unavailable

7

RETAINER, RR. BRACKET

43112-445-631

Unavailable

8

COVER, RR. DISK (NOT AVAILABLE)

43140-ML8-670

Unavailable

9

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

10

CAP, BLEEDER

43353-461-771

$5.05

11

SPRING, PAD

45108-MA2-006

Unavailable

12

DUST SEAL

45109-MA7-006

$5.31

13

SLEEVE

45111-MA3-006

$13.38

14

BOLT, PIN

45131-MA3-006

$17.59

15

BOOT B

45133-MA3-006

$5.46

16

BOOT, PIN

45133-166-016

$3.85

17

SEAL, PISTON

45209-MA7-006

$6.61

18

PIN, HANGER

45215-MA2-006

Unavailable

19

PLATE

45217-MA3-006

$4.45

20

CLAMP B, BRAKE HOSE

52116-ML8-670

Unavailable

21

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

22

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

22

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

23

BOLT, FLANGE (6X20) This part replaces 96000-06020-07.

96001-06020-07

$1.49

23

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

24

BOLT, SOCKET (6X10)

96600-06010-07

$1.49

24

BOLT, SOCKET (6X10) This part replaces 96700-06010-07.

96600-06010-07

$1.49
