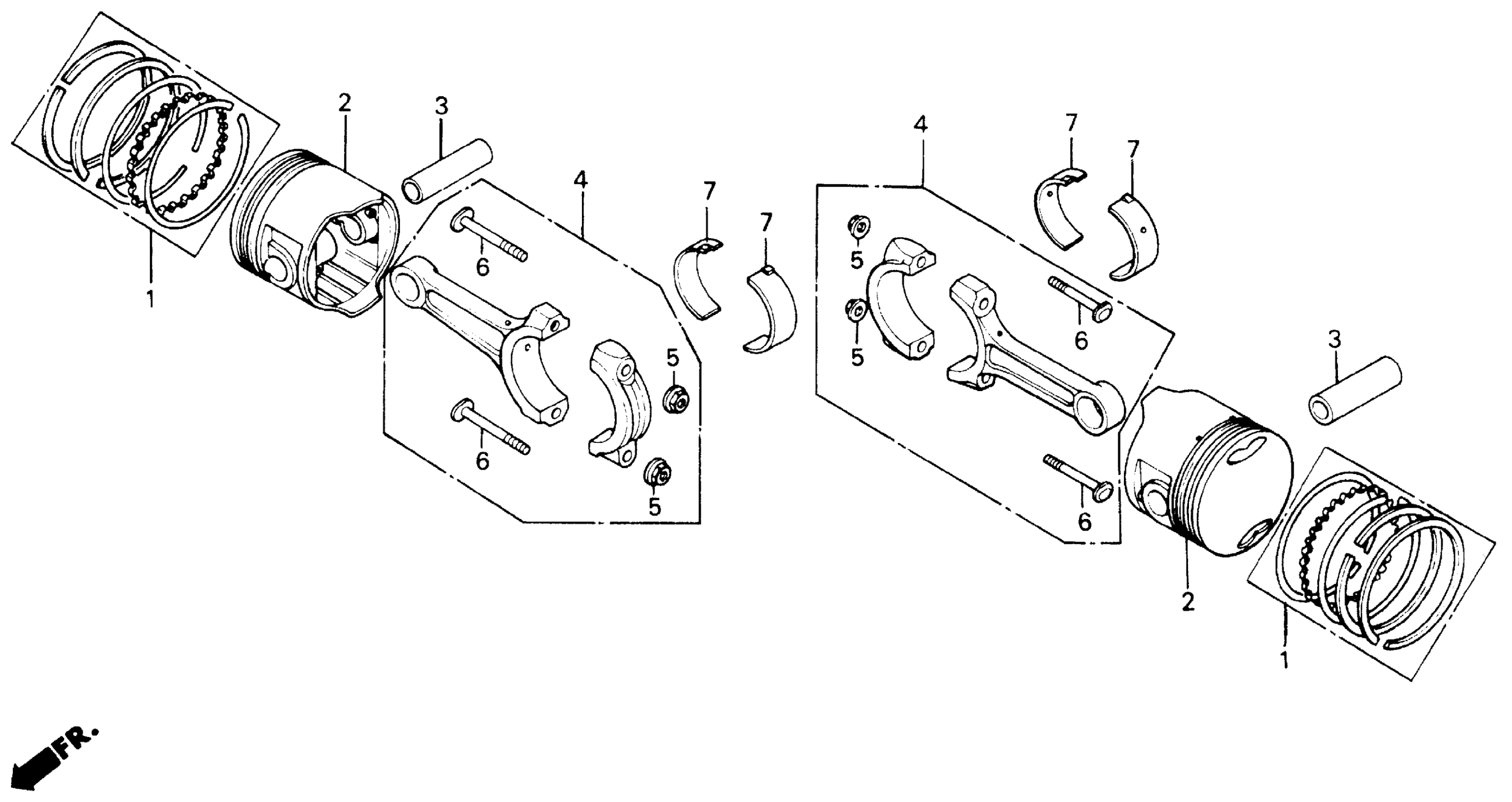

Honda GL1200AA (86) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-GA200536 TO 1HFSC142-GA223987 PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD)

13011-MG9-000

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.25) (NOT AVAILABLE) | (Optional).

13021-MG9-000

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE) | (Optional).

13031-MG9-000

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE) | (Optional).

13041-MG9-000

Unavailable

1

RING SET, PISTON (1.00) (NOT AVAILABLE) | (Optional).

13051-MG9-000

Unavailable

2

PISTON (STD) (NOT AVAILABLE) This part replaces 13101-MG9-000.

13101-ML8-600

Unavailable

2

PISTON (OVER SIZE) (0.25) | (Optional). This part replaces 13102-MG9-000.

13102-ML8-505

Unavailable

2

PISTON (OVER SIZE) (0.25) | (Optional).

13102-ML8-505

Unavailable

2

PISTON (OVER SIZE) (0.50) | (Optional). This part replaces 13103-MG9-000.

13103-ML8-505

Unavailable

2

PISTON (OVER SIZE) (0.50) | (Optional).

13103-ML8-505

Unavailable

2

PISTON (0.75) | (Optional). This part replaces 13104-MG9-000.

13104-ML8-505

Unavailable

2

PISTON (1.00) | (Optional). This part replaces 13105-MG9-000.

13105-ML8-505

$77.72

2

PISTON (1.00) | (Optional).

13105-ML8-505

$77.72

3

PIN, PISTON

13111-MG9-000

Unavailable

4

ROD ASSY. E, CONNECTING This part replaces 13201-MG9-000.

13205-MG9-405

Unavailable

4

ROD ASSY. E, CONNECTING This part replaces 13202-MG9-000.

13205-MG9-405

Unavailable

4

ROD ASSY. E, CONNECTING This part replaces 13203-MG9-000.

13205-MG9-405

Unavailable

4

ROD ASSY. E, CONNECTING This part replaces 13204-MG9-000.

13205-MG9-405

Unavailable

4

ROD ASSY. E, CONNECTING This part replaces 13205-MG9-000.

13205-MG9-405

Unavailable

4

ROD ASSY. E, CONNECTING

13205-MG9-405

Unavailable

4

ROD ASSY. E, CONNECTING This part replaces 13206-MG9-000.

13205-MG9-405

Unavailable

4

ROD ASSY. E, CONNECTING This part replaces 13207-MG9-000.

13205-MG9-405

Unavailable

4

ROD ASSY. E, CONNECTING This part replaces 13208-MG9-000.

13205-MG9-405

Unavailable

5

NUT, CONNECTING ROD

13205-634-010

$5.26

5

NUT, CONNECTING ROD This part replaces 13205-689-004.

13205-634-010

$5.26

6

BOLT, CONNECTING ROD (NAGOYA RASHI)

13213-463-003

$16.11

6

BOLT, CONNECTING ROD (NAGOYA RASHI) This part replaces 13213-463-004.

13213-463-003

$16.11

7

BEARING A, CONNECTING ROD (2&4 BLUE) (NOT AVAILABLE)

13215-463-003

Unavailable

7

BEARING B, CONNECTING ROD (2&4 BLACK) (NOT AVAILABLE)

13216-463-003

Unavailable

7

BEARING C, CONNECTING ROD (2&4 BROWN)

13217-463-003

Unavailable

7

BEARING D, CONNECTING ROD (2&4 GREEN)

13218-463-003

Unavailable

7

BEARING E, CONNECTING ROD (2&4 YELLOW) (NOT AVAILABLE)

13219-463-003

Unavailable
