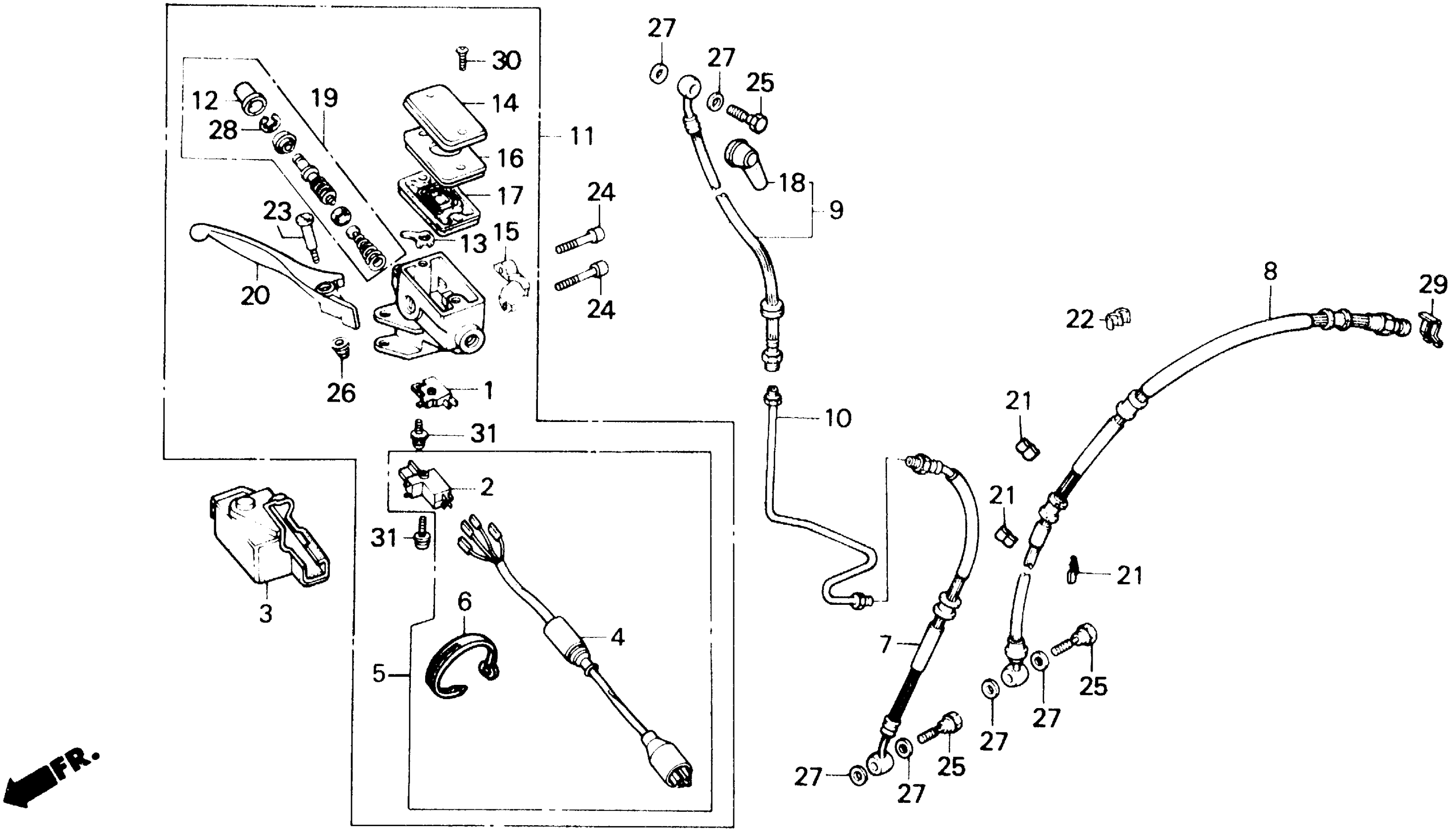

Honda GL1200AA (86) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-GA200536 TO 1HFSC142-GA223987 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

HOSE A, FR. BRAKE (NOT AVAILABLE)

45124-MG9-772

Unavailable

HOSE A, FR. BRAKE (NOT AVAILABLE)

45125-ML8-671

Unavailable

HOSE B, FR. BRAKE (NOT AVAILABLE)

45126-MG9-772

Unavailable

PIPE, FR. BRAKE (C) (NOT AVAILABLE)

45127-MG9-770

Unavailable

MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-MG9-407)

45500-MG9-771

Unavailable

BOOT

45504-410-003

$12.16

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER

45513-MB4-673

$47.89

HOLDER, MASTER CYLINDER

45517-MB0-006

Unavailable

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

DIAPHRAGM

45520-MA5-672

$18.13

BOOT, MASTER CYLINDER

45522-422-000

$8.68

MASTER CYLINDER SET

45530-471-831

$40.86

LEVER, R. HANDLEBAR

53175-MA6-016

Unavailable

CLAMP, SPEEDOMETER SENSOR WIRE

61108-MB0-000

Unavailable

CLAMP, SPEEDOMETER SENSOR WIRE (NOT AVAILABLE)

61109-MG9-870

Unavailable

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

BOLT, OIL (10X22)

90145-KM3-751

$11.02

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

CLIP, BRAKE HOSE

90651-538-000

$6.77

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-08

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49
