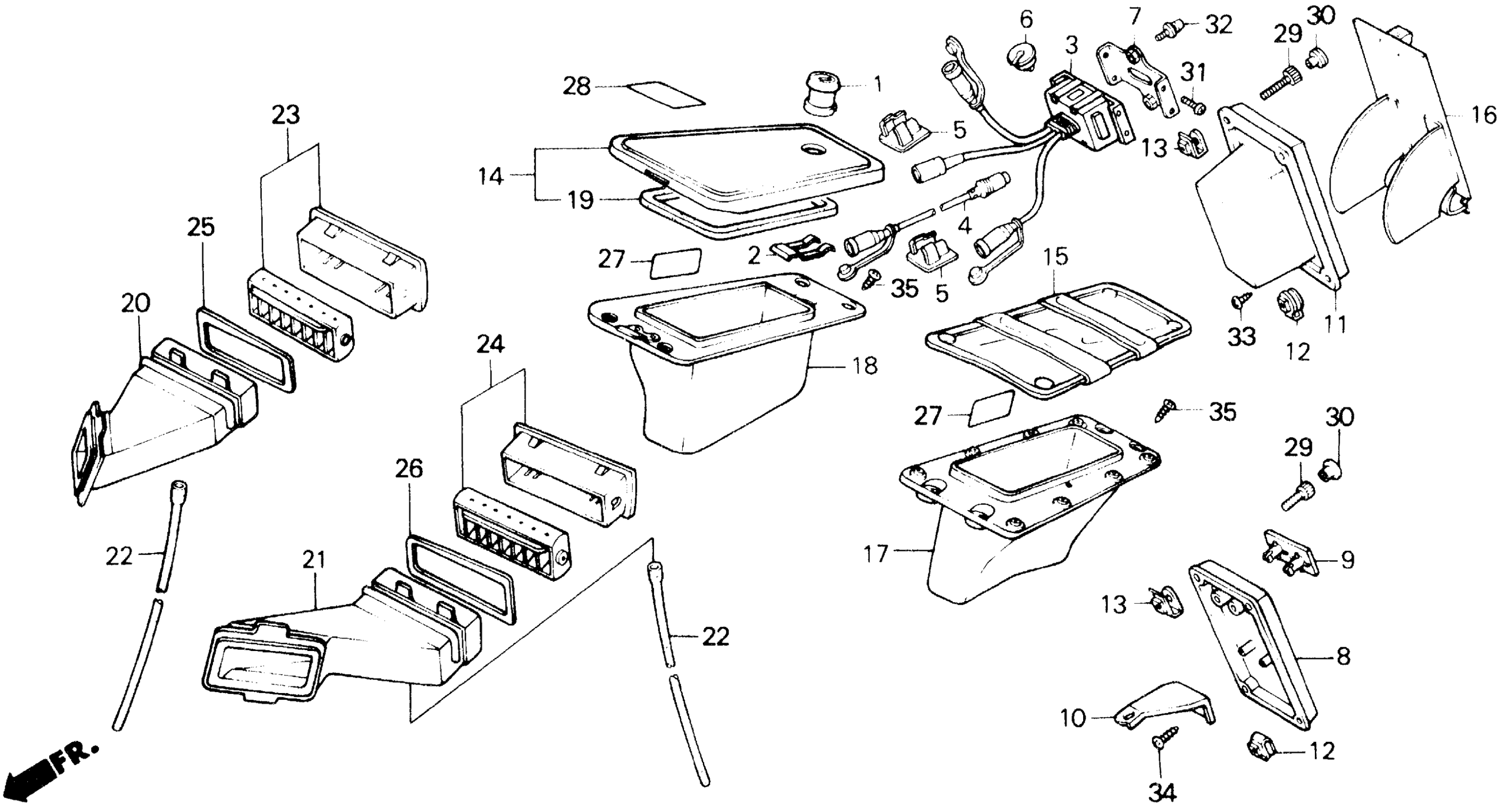

Honda GL1200AA (86) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-GA200536 TO 1HFSC142-GA223987 FAIRING POCKET Diagram

#

Description
Price

1

LOCK, FILLER LID

37220-439-007

$54.29

2

SPRING, LOCK KEY SETTING

37222-463-000

$8.05

3

BOX, HEADSET JUNCTION | (Optional).

39240-ML8-751

Unavailable

4

LEAD, JUNCTION (NOT AVAILABLE) | (Optional).

39241-MG9-951

Unavailable

5

HOLDER ASSY., CONNECTOR | (Optional). This part replaces 39242-MG9-951.

39242-MN5-000

Unavailable

5

HOLDER ASSY., CONNECTOR | (Optional).

39242-MN5-000

Unavailable

6

GROMMET, HEADSET HARNESS | (Optional).

39243-MG9-951

$2.85

8

COVER, CB BLIND

64225-MG9-770

Unavailable

9

COVER, AUTO VOLUME *R128PA* (PEARL SATURN RED) (NOT AVAILABLE) This part replaces 64232-MG9-770.

64232-MG9-770ZC

Unavailable

10

STAY, AUTO VOLUME

64233-MG9-870

$10.34

12

NUT, CLIP (5MM)

64238-MG9-770

Unavailable

13

NUT, PLATE

64241-463-770

Unavailable

14

COVER, R. POCKET (TYPE 3) *NH105* (MAT BLACK) This part replaces 64243-MG9-770.

64243-MG9-770ZC

Unavailable

14

COVER, R. POCKET (TYPE 3) *NH105* (MAT BLACK)

64243-MG9-770ZC

Unavailable

15

COVER, L. POCKET (TYPE 3) *NH105* (MAT BLACK) (NOT AVAILABLE) This part replaces 64245-MG9-770.

64245-MG9-770ZC

Unavailable

17

POCKET, L. (NOT AVAILABLE)

64246-MG9-770

Unavailable

18

POCKET, R. (NOT AVAILABLE)

64247-MG9-770

Unavailable

19

GASKET, R. POCKET SEAL (NOT AVAILABLE)

64248-MG9-770

Unavailable

20

TUBE, R. AIR DUCT

64275-MG9-680

Unavailable

21

TUBE, L. AIR DUCT

64276-MG9-680

Unavailable

22

TUBE, DUCT DRAIN (NOT AVAILABLE)

64412-MG9-770

Unavailable

23

OUTLET, R. FRESH AIR *R128PA* (PEARL SATURN RED) (NOT AVAILABLE) This part replaces 64480-MG9-680.

64480-MG9-680ZC

Unavailable

24

OUTLET, L. FRESH AIR *R128PA* (PEARL SATURN RED) This part replaces 64490-MG9-680.

64490-MG9-680ZC

Unavailable

24

OUTLET, L. FRESH AIR *R128PA* (PEARL SATURN RED)

64490-MG9-680ZC

Unavailable

25

RUBBER, R. OUTLET

64498-MG9-680

Unavailable

26

RUBBER, L. OUTLET

64499-MG9-680

Unavailable

27

LABEL, FAIRING POCKET CAUTION

87523-ML8-670

Unavailable

28

LABEL, R. POCKET CAUTION (NOT AVAILABLE)

87524-MG9-770

Unavailable

29

BOLT, SOCKET (5X22)

90089-MG9-770

Unavailable

30

CAP, SOCKET BOLT (5MM)

91456-MG9-770

$3.99

34

SCREW, TAPPING (4X12)

93902-34380

Unavailable

35

SCREW, TAPPING (4X16)

93903-34480

$1.49
