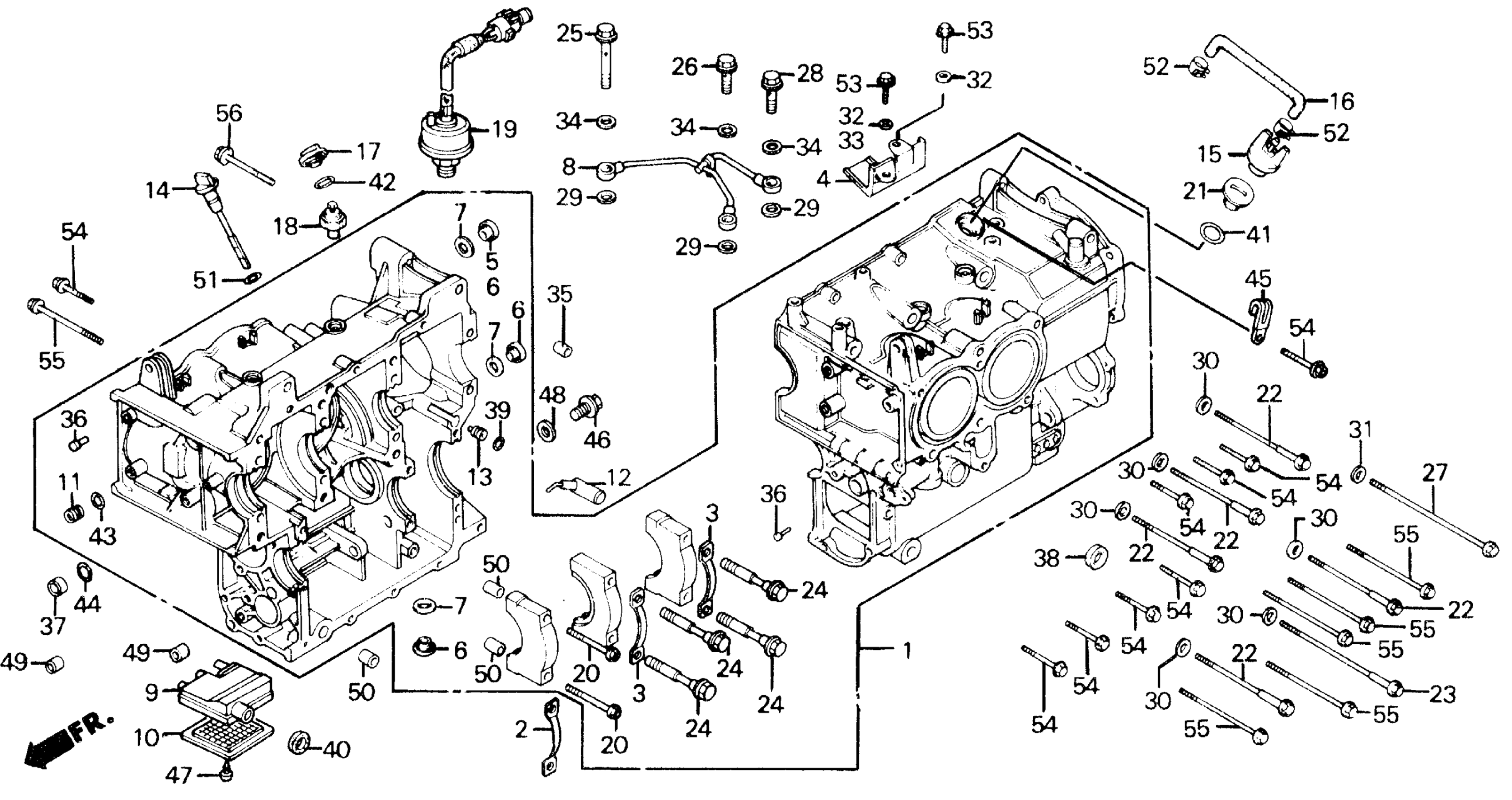

Honda GL1200AA (86) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-GA200536 TO 1HFSC142-GA223987 CYLINDER BLOCK Diagram

#

Description
Price

1

BLOCK ASSY., CYLINDER (NOT AVAILABLE)

11000-ML8-000

Unavailable

3

PLATE, BEARING CAP

11125-MG9-000

Unavailable

4

GUIDE, OIL (NOT AVAILABLE)

11220-371-000

Unavailable

6

BOLT, SEALING (18MM)

12206-ML8-300

$9.11

6

BOLT, SEALING (18MM) This part replaces 12206-371-305.

12206-ML8-300

$9.11

7

WASHER, SEALING BOLT

12207-611-300

Unavailable

8

PIPE, OIL PASSAGE (NOT AVAILABLE)

12230-MG9-000

Unavailable

9

CASE, OIL STRAINER

15151-ML8-000

Unavailable

10

SCREEN, OIL STRAINER

15152-ML8-000

Unavailable

11

PLUG, OIL TUBE (NOT AVAILABLE)

15337-300-010

Unavailable

12

NOZZLE, OIL SUPPLY (NOT AVAILABLE)

15520-371-000

Unavailable

13

ORIFICE, CHAIN

15530-371-000

Unavailable

14

DIPSTICK, OIL

15650-MG9-000

Unavailable

17

CAP, LEVEL GAUGE (NOT AVAILABLE)

25611-371-000

Unavailable

18

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

18

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

20

BOLT, FLANGE (10X82) (NOT AVAILABLE)

90003-371-013

Unavailable

21

BOLT, SPECIAL (25MM) This part replaces 90008-371-000.

90008-443-000

Unavailable

21

BOLT, SPECIAL (25MM)

90008-443-000

Unavailable

22

BOLT, FLANGE (10X120) This part replaces 90009-371-003.

90009-371-015

$10.71

22

BOLT, FLANGE (10X120) This part replaces 90009-371-005.

90009-371-015

$10.71

22

BOLT, FLANGE (10X120) (SATO)

90009-371-015

$10.71

23

BOLT, FLANGE (10X166) (TOKA1) (NOT AVAILABLE)

90010-371-003

Unavailable

23

BOLT, FLANGE (10X166) (SATO) (NOT AVAILABLE)

90010-371-005

Unavailable

24

BOLT, FLANGE (12X90)

90024-MG9-000

Unavailable

25

BOLT A, OIL

90025-MG9-000

Unavailable

26

BOLT B, OIL (NOT AVAILABLE)

90026-MG9-000

Unavailable

27

BOLT, FLANGE (8X175) (NOT AVAILABLE)

90026-371-004

Unavailable

28

BOLT C, OIL | Use up to Engine SN 2616888 This part replaces 90027-MG9-000.

90027-MG9-010

Unavailable

28

BOLT C, OIL

90027-MG9-010

Unavailable

29

WASHER, OIL BOLT

90405-ML8-000

Unavailable

30

WASHER, SPECIAL (11X21X2.3)

90438-463-000

$2.53

31

WASHER, SEALING (8MM)

90441-422-000

$4.85

32

WASHER, SEALING (6MM)

90442-397-000

$2.28

34

WASHER, OIL BOLT

90545-300-000

$3.99

35

COLLAR (15X20)

90702-371-000

$5.87

36

PIN (4X12MM) (NOT AVAILABLE)

90702-634-300

Unavailable

37

COLLAR (17X10) (NOT AVAILABLE)

90703-371-000

Unavailable

38

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

39

O-RING (9.5X1.7)

91259-333-000

$3.69

40

RING, OIL STRAINER SEAL

91301-ML8-003

Unavailable

41

O-RING (25.4X2.4)

91307-703-000

Unavailable

42

O-RING (27X2.7)

91318-500-000

Unavailable

43

O-RING (13X2.5)

91319-300-000

$5.07

44

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.13

44

O-RING (17.0X2.5) (ARAI) This part replaces 91333-567-010.

91333-KE5-003

$2.13

45

CLIP, WIRE HARNESS

91406-657-671

$9.42

46

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

47

SCREW, TAPPING (3X8)

93901-12110

$1.49

48

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

49

PIN, DOWEL (8X14)

94301-08140

$2.25

50

PIN, DOWEL (12X20)

94301-12200

$2.29

51

O-RING (8.4X2.4)

94608-10000

$1.49

53

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

53

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

54

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

54

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

55

BOLT, FLANGE (6X110) This part replaces 95700-06110-00.

95701-06110-00

$3.09

55

BOLT, FLANGE (6X110)

95701-06110-00

$3.09

56

BOLT, FLANGE (8X70) This part replaces 95700-08070-00.

95701-08070-00

$2.67

56

BOLT, FLANGE (8X70)

95701-08070-00

$2.67
