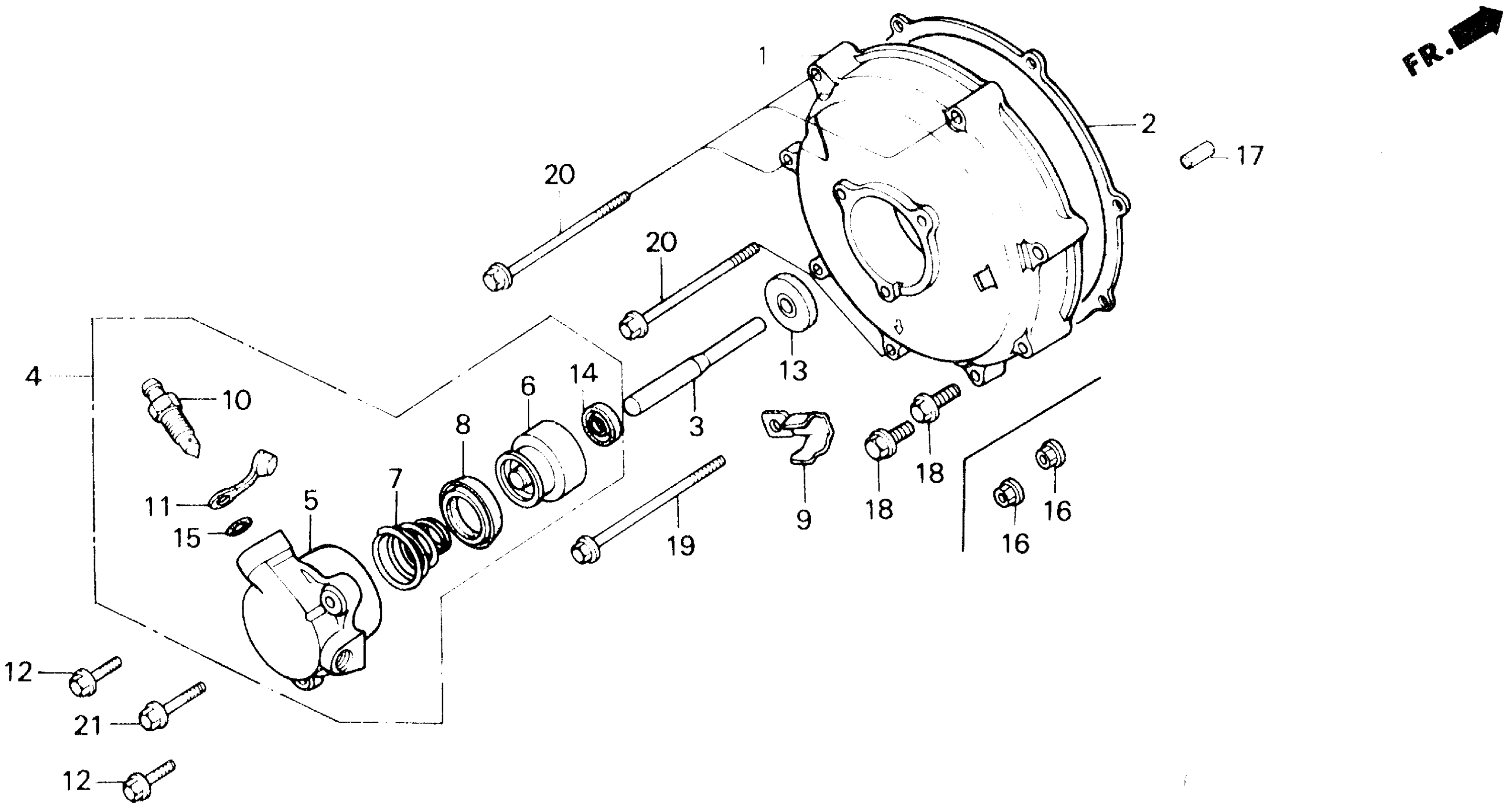

Honda GL1200AA (86) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-GA200536 TO 1HFSC142-GA223987 CLUTCH COVER Diagram

COVER, CLUTCH

11340-ML8-000

Unavailable

GASKET, CLUTCH COVEER

11393-MG9-307

Unavailable

GASKET, CLUTCH COVEER This part replaces 11393-MG9-680.

11393-MG9-307

Unavailable

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-MG9-000

Unavailable

CYLINDER ASSY., CLUTCH SLAVE

22860-MG9-000

Unavailable

CYLINDER, CLUTCH SLAVE (NOT AVAILABLE)

22861-MG9-000

Unavailable

PISTON, SLAVE CYLINDER

22863-MG9-003

$29.05

SPRING, SLAVE CYLINDER

22864-MB0-003

$6.25

CUP

22865-MG9-003

$12.58

CLAMP, CLUTCH HOSE (A)

22871-MG9-000

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

BOLT, FLANGE (6X25) (NOT AVAILABLE)

90006-MG9-000

Unavailable

OIL SEAL (8X25X8) (ARAI) This part replaces 91204-MB0-003.

91204-MB0-013

$4.06

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

OIL SEAL (8X18X5)

91209-MB0-003

$4.06

NUT, FLANGE (6MM)

94050-06000

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X90) This part replaces 95700-06090-00.

95701-06090-00

$1.92

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

BOLT, FLANGE (6X85) This part replaces 95800-06085-00.

95801-06085-00

$2.19

BOLT, FLANGE (6X85)

95801-06085-00

$2.19

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
