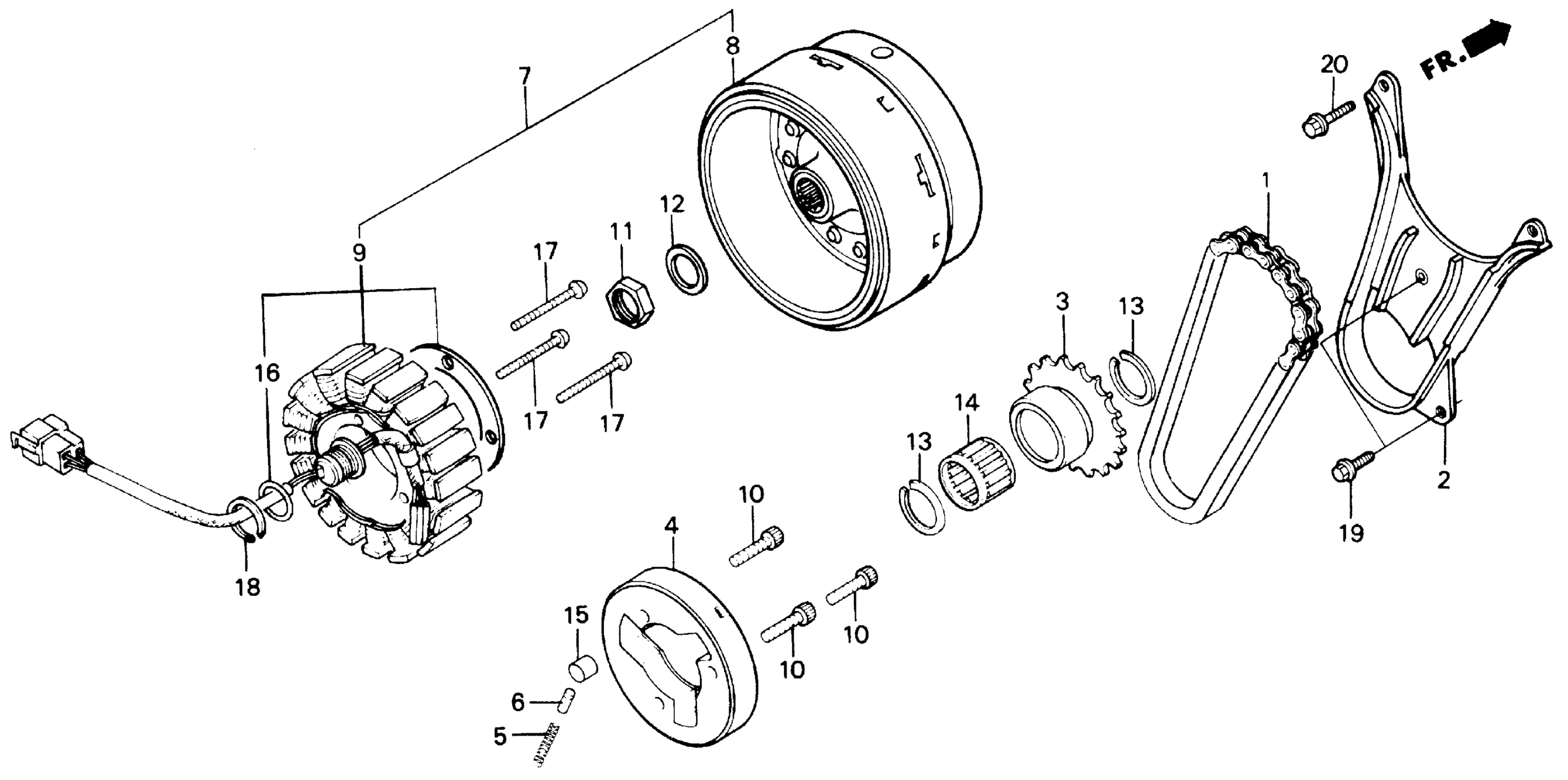

Honda GL1200AA (86) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-GA200536 TO 1HFSC142-GA223987 ALTERNATOR Diagram

#

Description
Price

NI

REPAIR KIT, ALTERNATOR CONNECTOR

31105-ML8-305

$19.22

1

CHAIN, STARTING (NOT AVAILABLE)

28101-MG9-681

Unavailable

2

GUIDE, STARTER CHAIN (NOT AVAILABLE) This part replaces 28106-ML8-000.

28106-ML8-010

Unavailable

3

SPROCKET, STARTER (NOT AVAILABLE)

28111-MG9-000

Unavailable

4

CLUTCH, STARTING (OUTER) (NOT AVAILABLE)

28120-MG9-000

Unavailable

5

SPRING, STARTER CLUTCH ROLLER

28125-516-030

$2.73

6

CAP, STARTER CLUTCH ROLLER SPRING

28126-415-000

$18.84

7

ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31100-ML8-671.

31100-ML8-305

Unavailable

7

ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31100-ML8-672.

31100-ML8-305

Unavailable

7

ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31100-ML8-673.

31100-ML8-305

Unavailable

7

ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31100-ML8-674.

31100-ML8-305

Unavailable

8

FLYWHEEL (NOT AVAILABLE) This part replaces 31110-MG9-681.

31110-MG9-682

Unavailable

9

STATOR This part replaces 31120-ML8-671.

31120-ML8-305

Unavailable

9

STATOR

31120-ML8-305

Unavailable

9

STATOR This part replaces 31120-ML8-670.

31120-ML8-305

Unavailable

9

STATOR This part replaces 31120-ML8-672.

31120-ML8-305

Unavailable

9

STATOR This part replaces 31120-ML8-673.

31120-ML8-305

Unavailable

10

BOLT, SOCKET (8MM) This part replaces 90010-415-000.

90010-KCJ-690

$4.78

11

NUT, LOCK (22MM) (NOT AVAILABLE)

90202-KG4-000

Unavailable

12

WASHER, SPECIAL (22MM) (NOT AVAILABLE)

90401-MG9-000

Unavailable

13

CLIP (40) (NOT AVAILABLE) This part replaces 90605-MG9-000.

90605-MG9-008

Unavailable

13

CLIP (40) (NOT AVAILABLE)

90605-MG9-008

Unavailable

14

BEARING, NEEDLE (35X40X27) (NOT AVAILABLE)

91101-MG9-008

Unavailable

15

ROLLER (15X13)

91101-516-000

$6.32

16

O-RING (23X2)

91354-371-000

$3.19

17

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

17

SCREW, PAN (6X40)

93500-06040-0A

$1.49

18

CIRCLIP (OUTER) (26MM)

94511-26000

Unavailable

19

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

19

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

20

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

20

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
