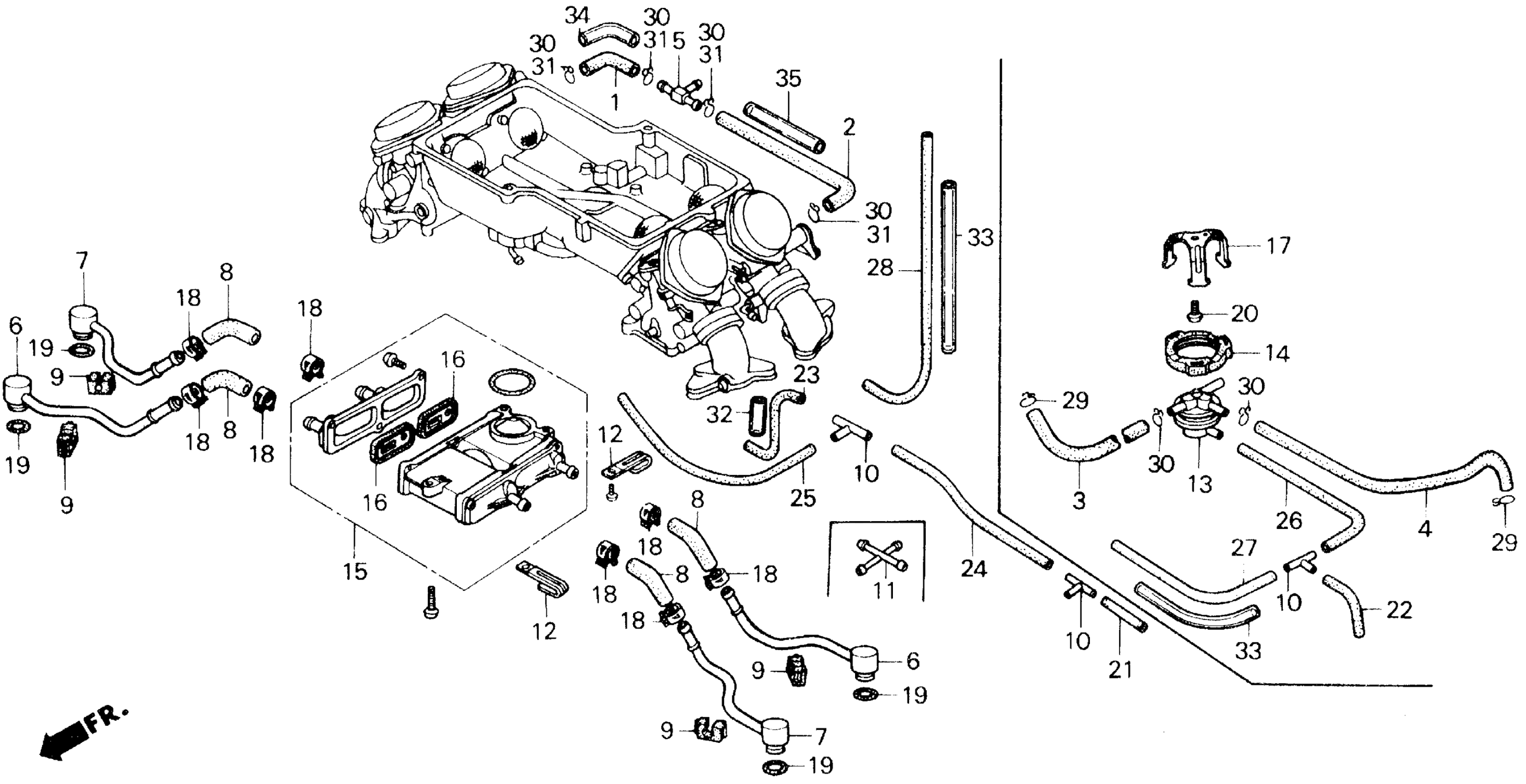

Honda GL1200AA (86) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-GA200536 TO 1HFSC142-GA223987 AIR SUCTION VALVE Diagram

TUBE, R. FUEL (NOT AVAILABLE)

16191-MG9-000

Unavailable

TUBE, L. FUEL (NOT AVAILABLE)

16192-MG9-000

Unavailable

JOINT, FUEL TUBE (NOT AVAILABLE)

16958-MG9-000

Unavailable

PIPE A, AIR FEED (NOT AVAILABLE)

17130-ML8-000

Unavailable

PIPE B, AIR FEED (NOT AVAILABLE)

17140-ML8-000

Unavailable

HOSE, AIR FEED (NOT AVAILABLE)

17150-MG9-000

Unavailable

RUBBER, AIR PIPE SETTING

17151-MG9-000

Unavailable

JOINT A, VACUUM TUBE

17201-MG9-000

$15.94

CLAMP A, TUBE (NOT AVAILABLE)

17215-MG9-000

Unavailable

VALVE ASSY., AIR SUCTION (NOT AVAILABLE) This part replaces 18600-MG9-004.

18600-MG9-014

Unavailable

VALVE, REED This part replaces 18601-MG9-005.

18601-MJ1-791

$22.10

VALVE, REED

18601-MJ1-791

$22.10

CLAMP D (15.5MM)

53729-671-003

$3.39

O-RING (9.8X2.4) This part replaces 91352-425-003.

91305-422-000

$2.47

O-RING (9.8X2.4)

91305-422-000

$2.47

BULK HOSE, FUEL (3.5X3000) (3.5X90)

95001-35003-60M

$20.85

BULK HOSE, FUEL (3.5X3000) (3.5X170)

95001-35003-60M

$20.85

BULK HOSE, FUEL (3.5X3000) (3.5X190)

95001-35003-60M

$20.85

BULK HOSE, FUEL (3.5X3000) (3.5X470)

95001-35003-60M

$20.85

CLIP, TUBE (B10)

95002-02100

$1.90

TUBE, VINYL (8X9X2000) (NA USE ALT:95003-21003-10M) This part replaces 95003-21020-20.

95003-21200-20

Unavailable

BULK HOSE, VINYL (11X13X3000)

95003-36003-10M

Unavailable
