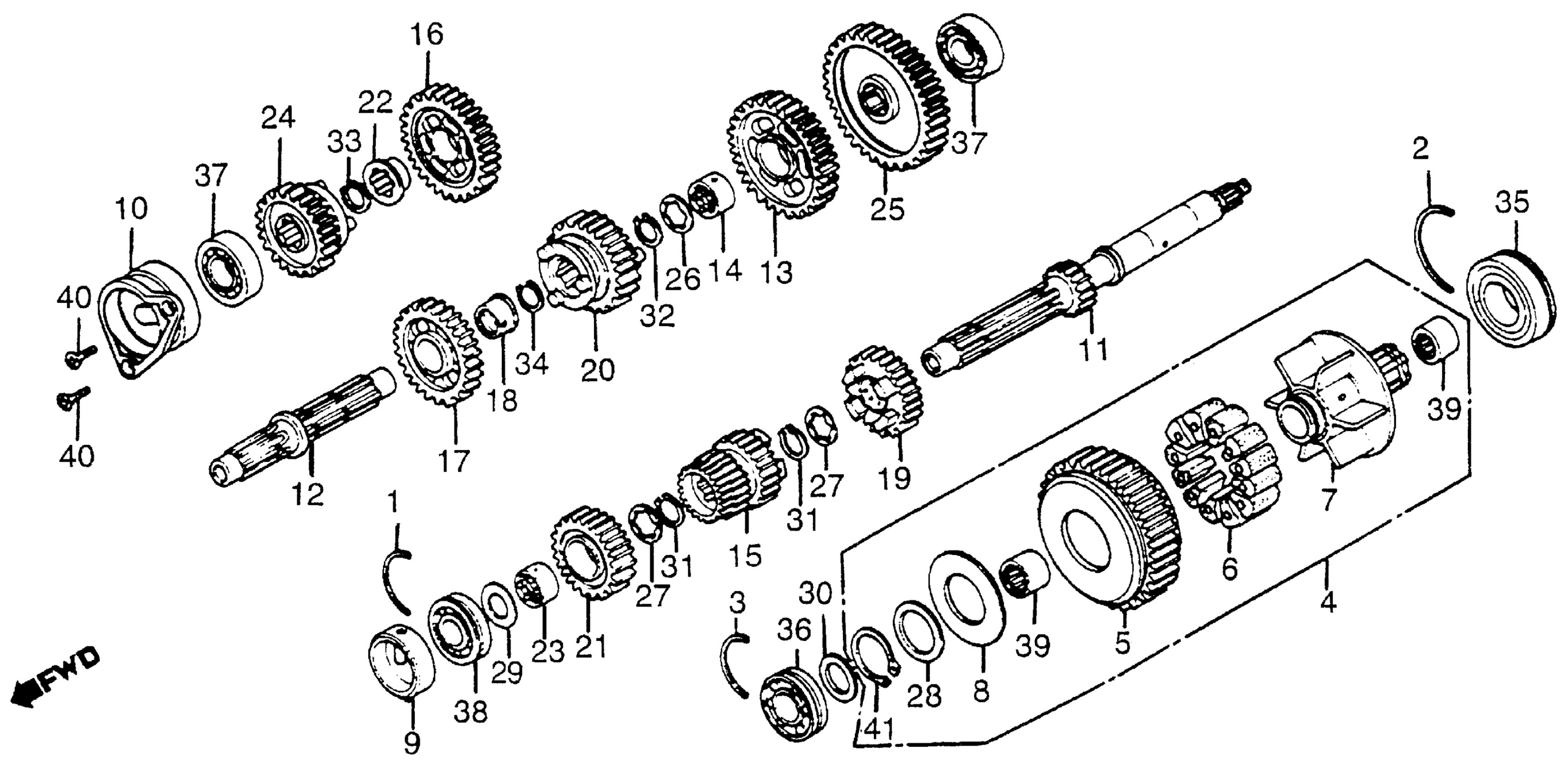

Honda GL1200AA (85) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-FA102502 TO 1HFSC142-FA126301 TRANSMISSION Diagram

#

Description
Price

1

RING A, BALL BEARING SETTING

13495-MG9-000

Unavailable

2

RING B, BALL BEARING SETTING

13496-MG9-000

Unavailable

3

RING, BALL BEARING C SETTING

13497-MG9-000

Unavailable

4

SPROCKET, PRIMARY DRIVEN (NOT AVAILABLE)

23110-MG9-000

Unavailable

5

SPROCKET, PRIMARY DRIVEN (NOT AVAILABLE)

23111-MG9-000

Unavailable

6

DAMPER, PRIMARY

23114-MG9-000

Unavailable

7

HUB, PRIMARY SPROCKET (NOT AVAILABLE)

23121-MG9-000

Unavailable

8

SPRING, PRIMARY DAMPER

23125-MG9-000

Unavailable

9

PASSAGE, MAINSHAFT OIL (NOT AVAILABLE)

23141-MG9-000

Unavailable

10

HOLDER C, BEARING (NOT AVAILABLE)

23151-431-020

Unavailable

11

MAINSHAFT

23211-MG9-000

Unavailable

12

COUNTERSHAFT

23220-MG9-010

Unavailable

13

GEAR, COUNTERSHAFT FIRST (36T)

23421-MG9-680

Unavailable

14

COLLAR, SPLINE (28)

23425-MG9-000

Unavailable

15

GEAR, MAINSHAFT SECOND & THIRD (24T,28T) (NOT AVAILABLE) This part replaces 23431-MG9-000.

23431-MB9-000

Unavailable

16

GEAR, COUNTERSHAFT SECOND (40T) (NOT AVAILABLE)

23441-MG9-010

Unavailable

17

GEAR, COUNTERSHAFT THIRD (35T)

23451-MG9-000

Unavailable

18

BUSH (31) (NOT AVAILABLE)

23455-463-000

Unavailable

19

GEAR, MAINSHAFT FOURTH (32T) (NOT AVAILABLE)

23460-MB9-000

Unavailable

20

GEAR, COUNTERSHAFT FOURTH (32T)

23471-MG9-000

Unavailable

21

GEAR, MAINSHAFT FIFTH (35T) (NOT AVAILABLE) This part replaces 23481-MG9-680.

23481-MG9-682

Unavailable

21

GEAR, MAINSHAFT FIFTH (35T) (NOT AVAILABLE) This part replaces 23481-MG9-681.

23481-MG9-682

Unavailable

21

GEAR, MAINSHAFT FIFTH (35T) (NOT AVAILABLE)

23481-MG9-682

Unavailable

22

BUSH (31) (NOT AVAILABLE)

23455-463-000

Unavailable

23

COLLAR, SPLINE (25) (NOT AVAILABLE)

23485-463-000

Unavailable

24

GEAR, COUNTERSHAFT FIFTH (28T) (NOT AVAILABLE)

23491-MG9-680

Unavailable

25

GEAR, FINAL DRIVE (37T) This part replaces 23501-463-000.

23501-463-010

Unavailable

25

GEAR, FINAL DRIVE (37T)

23501-463-010

Unavailable

26

WASHER, THRUST (28MM)

90451-422-000

$8.36

27

WASHER, THRUST (25X34)

90452-371-000

$4.82

28

WASHER, THRUST (45)

90453-MG9-000

Unavailable

29

WASHER, THRUST (20MM)

90458-292-000

$3.54

30

WASHER A, THRUST (25MM) (NOT AVAILABLE)

90458-506-810

Unavailable

31

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

32

CIRCLIP (28MM)

90601-422-000

$2.98

33

CIRCLIP, OUTER (28MM)

90602-463-000

$3.64

34

CIRCLIP, OUTER (28MM)

90602-463-000

$3.64

35

BEARING, RADIAL BALL (6008U) (NOT AVAILABLE)

91001-463-008

Unavailable

36

BEARING, SPECIAL BALL (62/28) This part replaces 91002-MG9-005.

91002-MG9-008

Unavailable

36

BEARING, SPECIAL BALL (62/28)

91002-MG9-008

Unavailable

37

BEARING, RADIAL BALL (20X52X15) (TOYO) This part replaces 91002-371-004.

91003-MG8-003

$40.08

37

BEARING, RADIAL BALL (20X52X15) (TOYO)

91003-MG8-003

$40.08

38

BEARING, BALL (6304CS) (TOYO)

91004-371-008

Unavailable

39

BEARING, NEEDLE (25X32X20)

91010-300-008

Unavailable

40

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

40

SCREW, FLAT (6X20)

93600-06020-0A

$1.49

41

CIRCLIP (OUTER) (45MM)

94510-45000

$2.05
