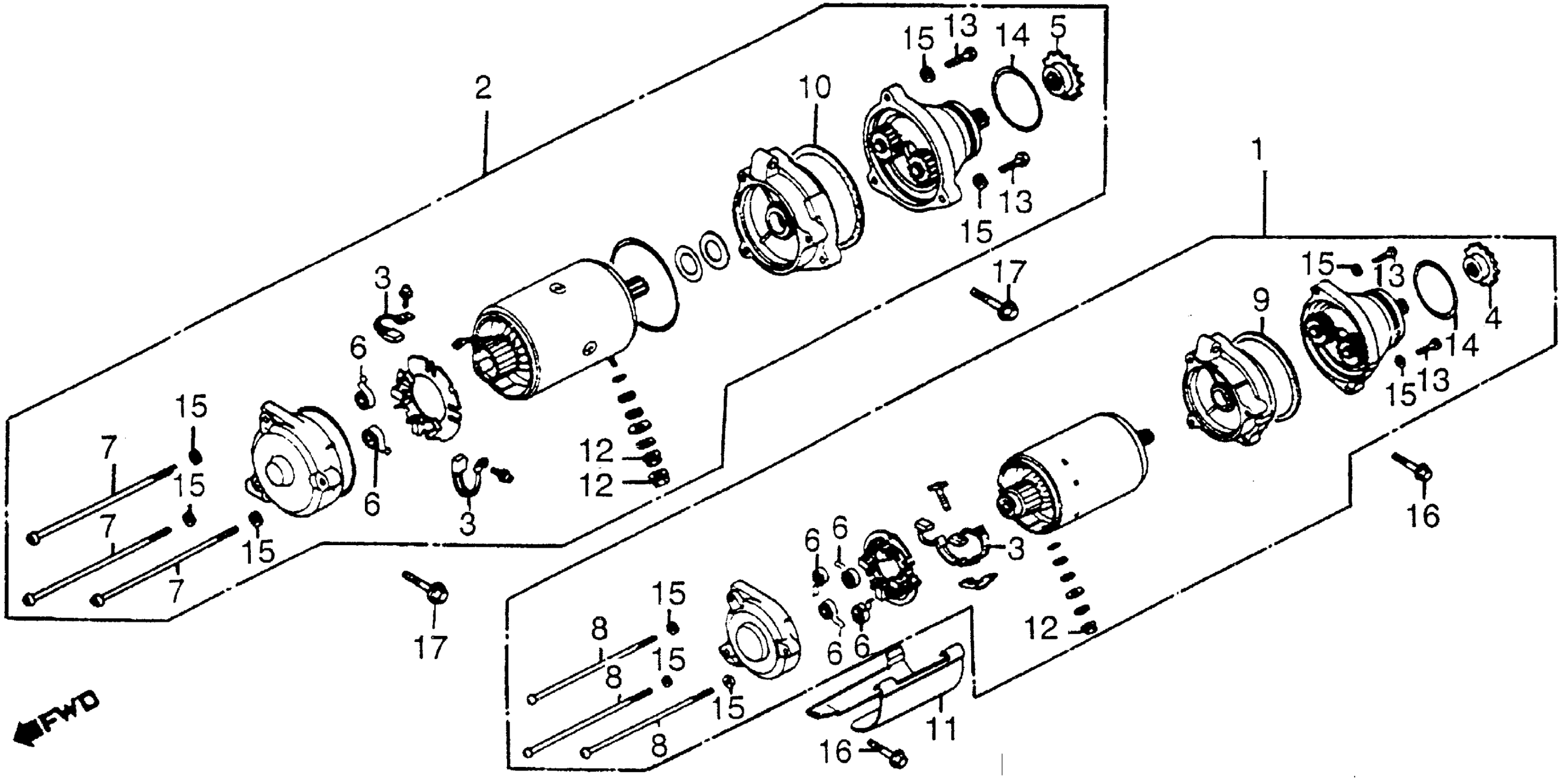

Honda GL1200AA (85) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-FA102502 TO 1HFSC142-FA126301 STARTER MOTOR Diagram

STARTER MOTOR ASSY. This part replaces 31200-MG9-681.

31200-MG9-406

Unavailable

BRUSH, CARBON

31201-MG9-004

Unavailable

SPROCKET (NOT AVAILABLE)

31202-MG9-681

Unavailable

SPRING, CARBON BRUSH

31204-292-158

$3.57

SCREW, PAN (5X115) (NOT AVAILABLE)

31205-MB0-000

Unavailable

RING (NOT AVAILABLE)

31208-MG9-681

Unavailable

NUT-WASHER (6MM)

90071-MB0-000

$1.88

BOLT (5X20)

91001-MG9-004

Unavailable

O-RING

91309-MA6-000

$3.69

WASHER, SPRING (5MM)

94111-05000

$1.03

BOLT, FLANGE (6X32) This part replaces 96000-06032-02.

96001-06032-02

$1.17

BOLT, FLANGE (6X32)

96001-06032-02

$1.17
