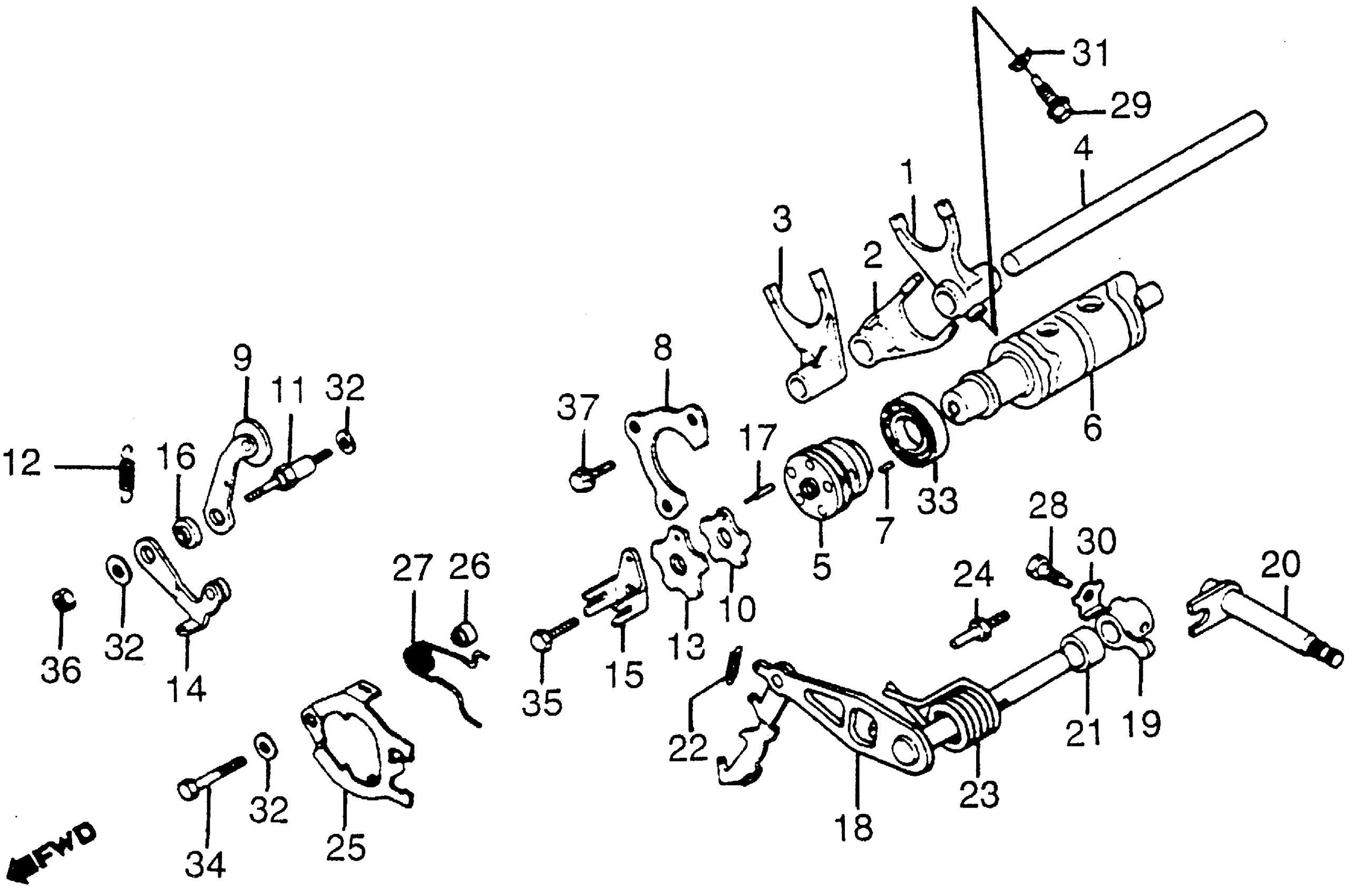

Honda GL1200AA (85) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-FA102502 TO 1HFSC142-FA126301 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-MG9-000

Unavailable

2

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24212-MG9-000

Unavailable

3

FORK, L. GEARSHIFT (NOT AVAILABLE)

24213-MG9-020

Unavailable

4

SHAFT, GEARSHIFT FORK (NOT AVAILABLE) This part replaces 24261-MG9-000.

24261-MG9-010

Unavailable

4

SHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24261-MG9-010

Unavailable

5

CENTER, GEARSHIFT DRUM (NOT AVAILABLE)

243A0-MG9-300

Unavailable

6

DRUM, GEARSHIFT This part replaces 24301-MB9-300.

24301-MB9-310

Unavailable

6

DRUM, GEARSHIFT

24301-MB9-310

Unavailable

6

DRUM, GEARSHIFT This part replaces 24301-MG9-300.

24301-MB9-310

Unavailable

7

PIN, GEARSHIFT DRUM

24306-235-300

Unavailable

8

PLATE, DRUM SETTING (NOT AVAILABLE)

24307-MG9-000

Unavailable

9

STOPPER, DRUM (NOT AVAILABLE)

24430-MB9-000

Unavailable

10

PLATE, DRUM STOPPER CAM (NOT AVAILABLE)

24434-MB9-000

Unavailable

11

SHAFT, DRUM STOPPER (NOT AVAILABLE)

24434-371-000

Unavailable

12

SPRING, DRUM STOPPER (NOT AVAILABLE)

24435-371-000

Unavailable

13

STOPPER, ROLLER (NOT AVAILABLE)

24436-MB9-000

Unavailable

14

ARM, NEUTRAL STOPPER (NOT AVAILABLE)

24440-MB9-000

Unavailable

15

JOINT, GEARSHIFT DRUM

24443-MB9-010

Unavailable

16

COLLAR, NEUTRAL STOPPER PIVOT (NOT AVAILABLE)

24447-371-000

Unavailable

17

PIN, GUIDE (NOT AVAILABLE)

24501-MB9-000

Unavailable

18

ARM, GEARSHIFT (NOT AVAILABLE)

24610-371-000

Unavailable

19

ARM B, GEARSHIFT (NOT AVAILABLE)

24615-371-000

Unavailable

20

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24620-371-000

Unavailable

21

COLLAR, GEARSHIFT SPRING (NOT AVAILABLE)

24624-371-000

Unavailable

22

SPRING, SHIFT ARM (NOT AVAILABLE)

24641-371-000

Unavailable

23

SPRING, SHIFT RETURN

24651-371-000

Unavailable

24

PIN, SHIFT RETURN SPRING (NOT AVAILABLE)

24652-300-000

Unavailable

25

STOPPER, GEARSHIFT POSITIVE

24661-ML8-000

Unavailable

26

PIVOT, POSITIVE STOPPER (NOT AVAILABLE) This part replaces 24663-MB9-000.

24663-MB9-010

Unavailable

27

SPRING, POSITIVE STOPPER (NOT AVAILABLE)

24666-300-000

Unavailable

28

BOLT, SPECIAL (8X24) This part replaces 90029-611-000.

90029-611-010

$8.88

28

BOLT, HEX. (8X24)

90029-611-010

$8.88

29

BOLT, SPECIAL (7X18)

90041-MB0-000

$4.92

30

WASHER, LOCK (8MM)

90406-422-000

$2.63

31

WASHER, LOCK

90407-MB0-000

$2.66

32

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

33

BEARING, RADIAL BALL (16004) (NOT AVAILABLE)

91001-235-300

Unavailable

34

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

34

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

34

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

35

BOLT, HEX. (6X45) (NOT AVAILABLE)

92220-06045-0H

Unavailable

36

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM)

94001-06200-0S

$1.49

37

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

37

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
