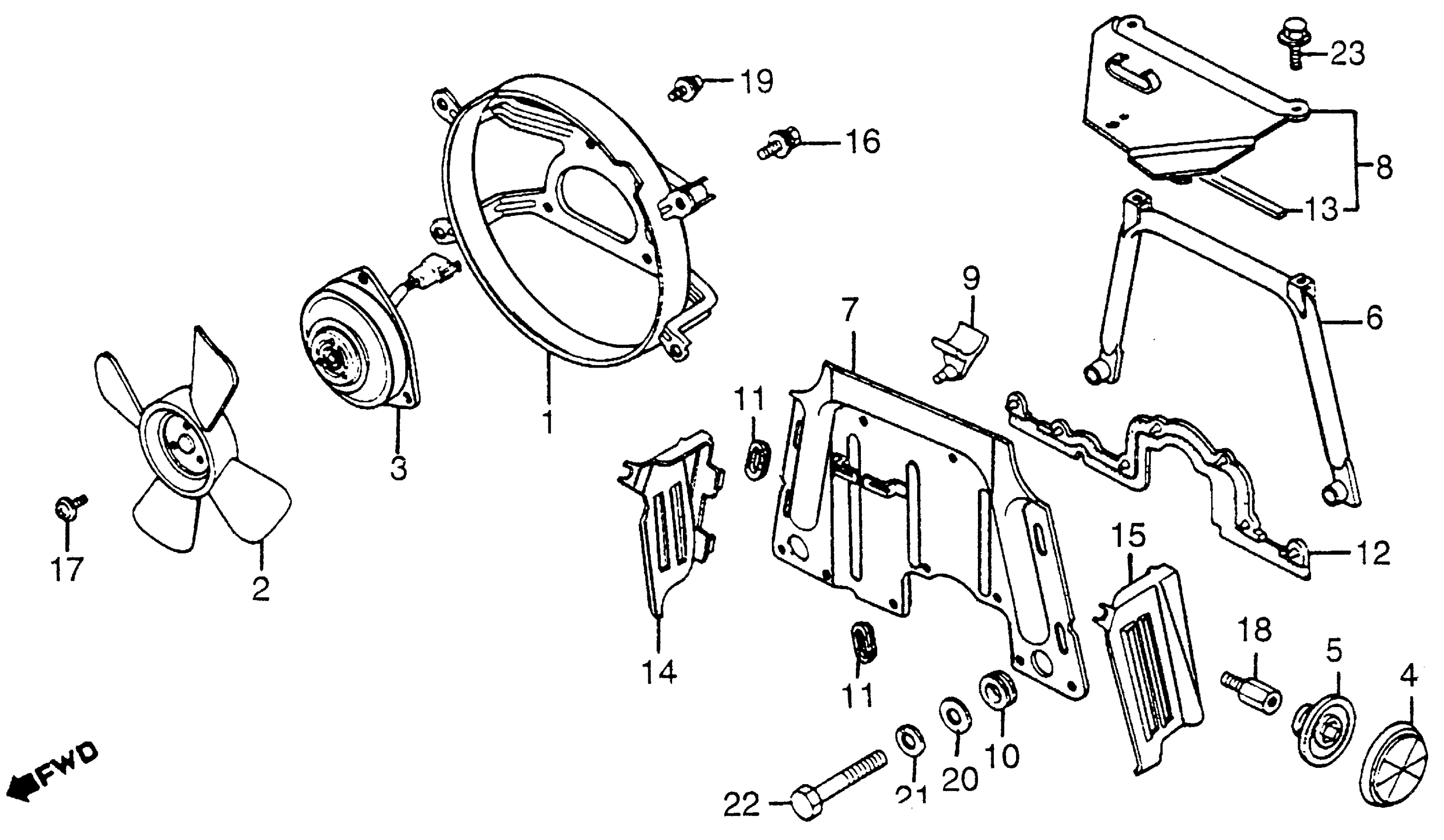

Honda GL1200AA (85) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-FA102502 TO 1HFSC142-FA126301 COOLING FAN + SHROUD Diagram

SHROUD (NOT AVAILABLE)

19020-MG9-003

Unavailable

FAN, COOLING (NOT AVAILABLE)

19025-MG9-003

Unavailable

MOTOR ASSY., FAN (NOT AVAILABLE)

19030-MG9-003

Unavailable

ROD, TORQUE

50353-MG9-000

Unavailable

SHROUD A This part replaces 62401-MG9-681.

62401-MG9-950

Unavailable

SHROUD A

62401-MG9-950

Unavailable

SHROUD (B)

62402-MG9-000

$13.16

RUBBER (A) (NOT AVAILABLE)

62403-MG9-000

Unavailable

RUBBER, SHROUD SETTING (NOT AVAILABLE)

62403-371-000

Unavailable

GROMMET (NOT AVAILABLE)

62404-MG9-000

Unavailable

RUBBER, SHROUD SEAL (NOT AVAILABLE)

62405-MG9-000

Unavailable

SEAL, SHROUD (UPPER)

62405-MG9-300

Unavailable

BOLT-WASHER (6x10) (DENSO) (NOT AVAILABLE)

90042-679-003

Unavailable

SCREW (4MM) (NOT AVAILABLE)

90101-MG9-003

Unavailable

SCREW-WASHER (5X10)

93893-05010-08

$1.49

WASHER, PLAIN (10MM)

94101-10000

$1.49

WASHER, SPRING (10MM)

94111-10000

$1.49

BOLT, HEX. (10X50) (NOT AVAILABLE) This part replaces 95325-10050.

95325-10050-00

Unavailable

BOLT, HEX. (10X50) (NOT AVAILABLE)

95325-10050-00

Unavailable

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

BOLT, FLANGE (8X20)

95701-08020-00

$1.78
