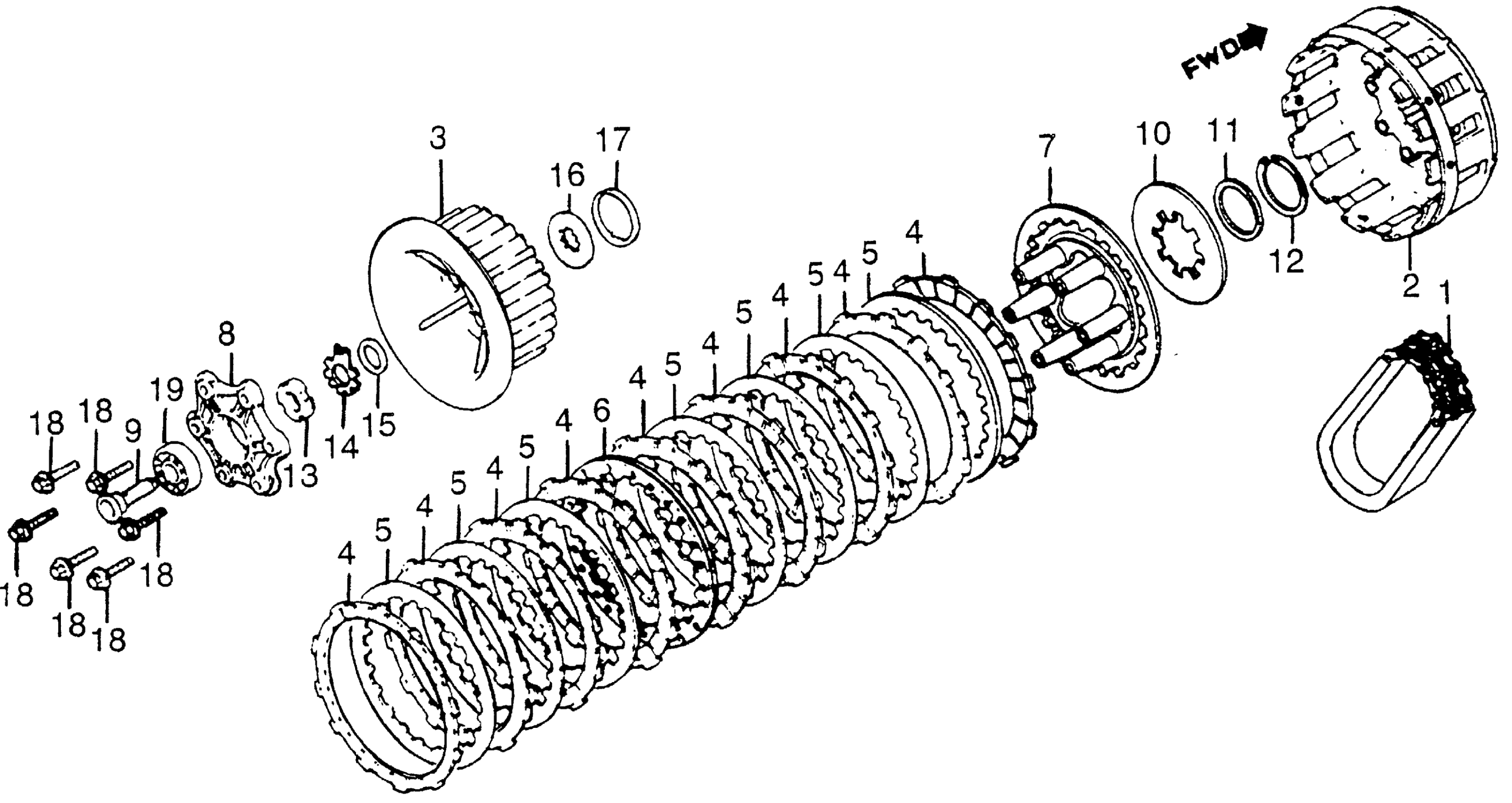

Honda GL1200AA (85) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-FA102502 TO 1HFSC142-FA126301 CLUTCH Diagram

CHAIN, OIL PUMP (NOT AVAILABLE)

15130-371-003

Unavailable

CLUTCH (OUTER) (NOT AVAILABLE)

22100-MG9-000

Unavailable

CENTER, CLUTCH (NOT AVAILABLE)

22120-MG9-000

Unavailable

DISK A, CLUTCH FRICTION

22201-MG9-000

$22.51

PLATE A, CLUTCH This part replaces 22321-MG9-000.

22321-371-010

$26.21

PLATE A, CLUTCH

22321-371-010

$26.21

PLATE B, CLUTCH (NOT AVAILABLE)

22322-MG9-000

Unavailable

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-MG9-000

Unavailable

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22360-463-000

Unavailable

PIN, CLUTCH LIFTER GUIDE (NOT AVAILABLE)

22366-MB9-000

Unavailable

SPRING, CLUTCH (NOT AVAILABLE)

22441-MG9-000

Unavailable

SEAT, CLUTCH SPRING (NOT AVAILABLE)

22442-MG9-000

Unavailable

RING, CLUTCH SPRING SETTING

22443-MG9-000

Unavailable

NUT, LOCK (20MM) (NOT AVAILABLE)

90204-426-000

Unavailable

WASHER, LOCK (20MM) (NOT AVAILABLE)

90431-MG9-000

Unavailable

WASHER, LOCK

90432-121-000

$4.21

WASHER, SPLINE (23MM) This part replaces 90432-371-000.

90433-MB0-000

$15.39

WASHER, SPLINE (23MM)

90433-MB0-000

$15.39

CIRCLIP (OUTER) (40MM) (NOT AVAILABLE)

90602-371-000

Unavailable

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

BOLT, FLANGE (6X20) This part replaces 95920-06020-08.

95701-06020-08

$1.49

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
