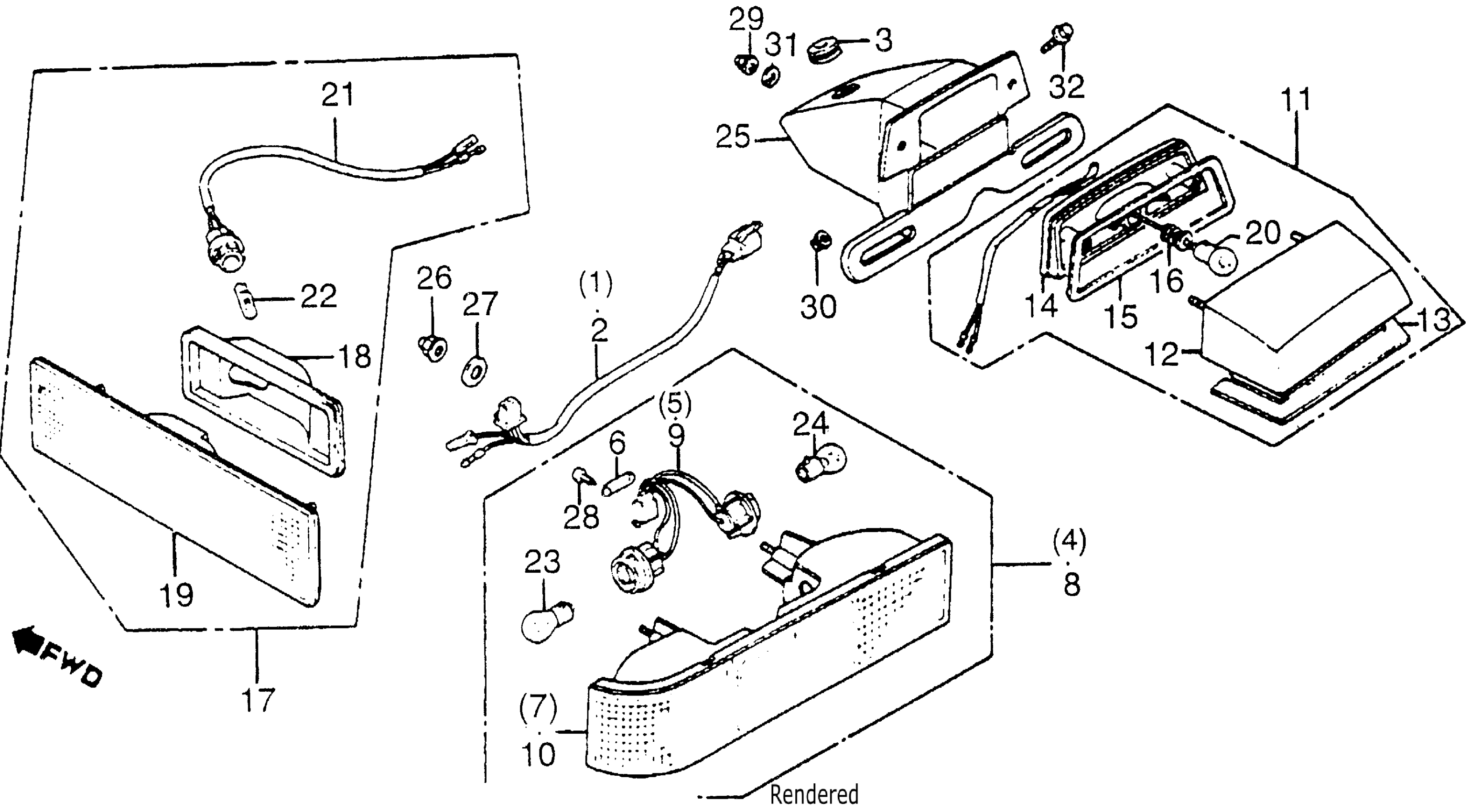

Honda GL1200AA (85) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-FA102502 TO 1HFSC142-FA126301 120I/A/LLICENSE LIGHT + REAR COMBINATION LIGHT 84-85 Diagram

#

Description
Price

1

SUB-WIRE HARNESS, R. RR. COMBINATION (NOT AVAILABLE) This part replaces 32107-MG9-770.

32107-ML8-670

Unavailable

1

SUB-WIRE HARNESS, R. RR. COMBINATION (NOT AVAILABLE)

32107-ML8-670

Unavailable

2

SUB-WIRE HARNESS, L. RR. COMBINATION (NOT AVAILABLE) This part replaces 32109-MG9-770.

32109-ML8-670

Unavailable

2

SUB-WIRE HARNESS, L. RR. COMBINATION (NOT AVAILABLE)

32109-ML8-670

Unavailable

3

GROMMET, WIRE HARNESS

32983-011-000

$3.31

4

LIGHT ASSY., R. RR. COMBINATION (NOT AVAILABLE)

33500-MG9-771

Unavailable

5

WIRE, R. (NOT AVAILABLE)

33503-MG9-771

Unavailable

6

STAY

33507-SB0-671

Unavailable

7

LENS, R. (B) (NOT AVAILABLE)

33510-MG9-771

Unavailable

8

LIGHT ASSY., L. RR. COMBINATION (NOT AVAILABLE)

33550-MG9-771

Unavailable

9

WIRE, L. (NOT AVAILABLE)

33553-MG9-771

Unavailable

10

LENS, L. (B) (NOT AVAILABLE)

33560-MG9-771

Unavailable

11

LIGHT ASSY., LICENSE

33720-MG9-771

Unavailable

12

COVER (NOT AVAILABLE)

33721-MG9-771

Unavailable

13

LENS, LICENSE This part replaces 33722-MG9-771.

33722-MG9-772

Unavailable

13

LENS, LICENSE

33722-MG9-772

Unavailable

14

BASE

33723-MG9-771

Unavailable

15

GASKET, LENS (NOT AVAILABLE)

33724-MG9-771

Unavailable

16

WIRE

33725-MG9-771

Unavailable

20

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

20

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

20

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

20

BULB (12V8W)

34909-505-003

$2.92

20

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

23

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

24

BULB, STOP & TAILLIGHT (12V 27/7W)

34906-MG9-771

$4.15

25

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84700-MG9-770

Unavailable

26

NUT, CAP (6MM)

90201-428-900

$2.23

27

WASHER, PLAIN (6MM)

90525-428-900

$1.92

28

SCREW, TAPPING (4X12)

93901-34320

$1.49

29

NUT, CAP (4MM)

94021-04020-0S

Unavailable

30

NUT, FLANGE (6MM)

94050-06000

$1.49

31

WASHER, SPRING (4MM)

94111-04000

$1.49

32

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

32

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
