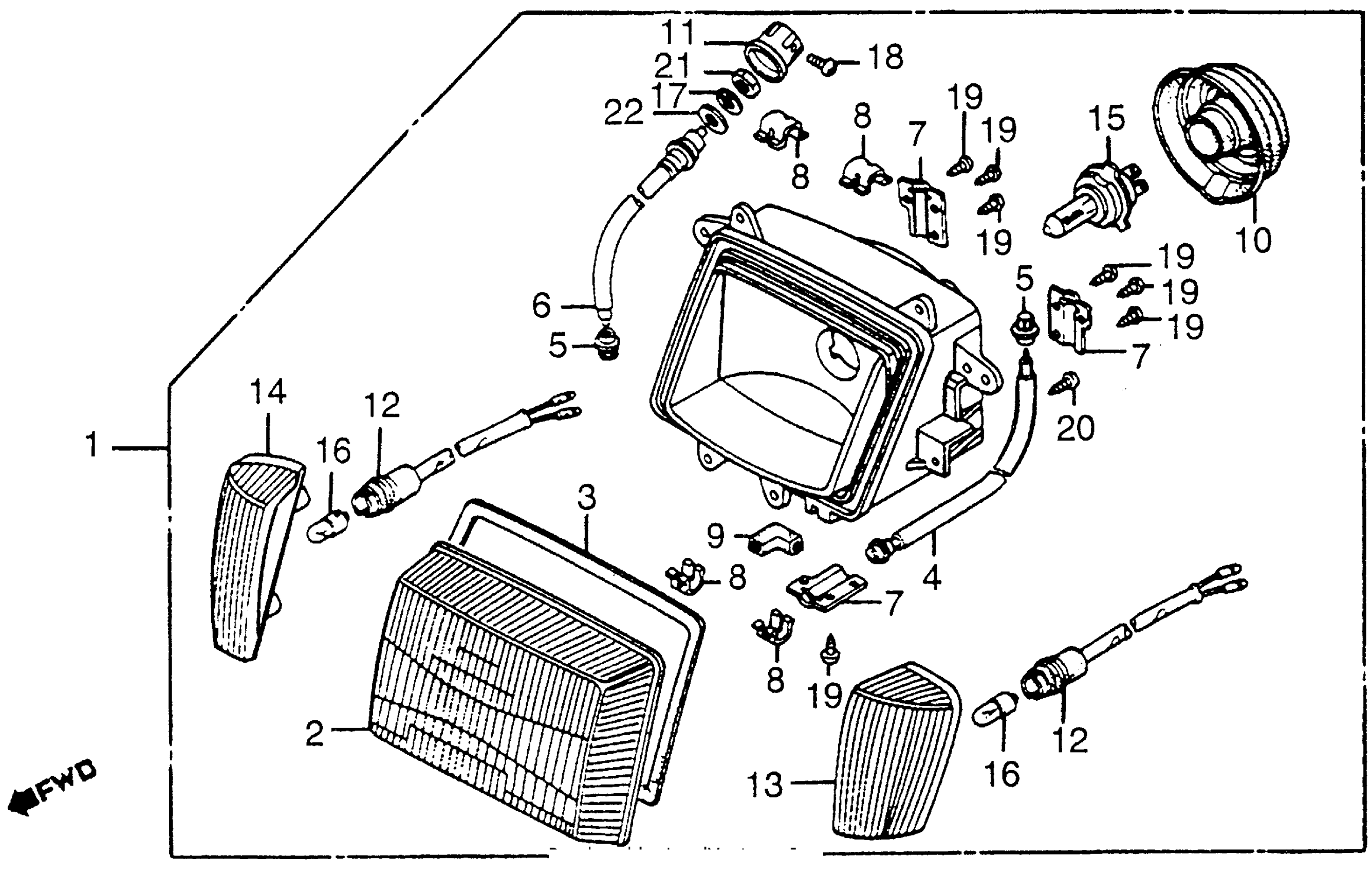

Honda GL1200AA (85) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-FA102502 TO 1HFSC142-FA126301 1200I/ALHEADLIGHT 84-85 Diagram

HEADLIGHT ASSY.

33100-MG9-771

Unavailable

LENS, HEADLIGHT

33102-MG9-771

Unavailable

GASKET, SEAL (NOT AVAILABLE)

33103-MG9-771

Unavailable

CABLE A, BEAM ADJUSTING

33108-MG9-771

Unavailable

GEAR, BEAM ADJUSTING

33109-MG9-771

Unavailable

CABLE B, BEAM ADJUSTING

33111-MG9-771

Unavailable

HOLDER, BEAM ADJUST

33112-MG9-771

Unavailable

CLIP, LENS HOLDER

33113-MC7-611

Unavailable

COVER

33115-MG9-771

Unavailable

COVER, HEADLIGHT BULB RUBBER

33126-SA5-951

Unavailable

KNOB, BEAM ADJUSTING (NOT AVAILABLE)

33156-MG9-771

Unavailable

WIRE, POSITION LIGHT (NOT AVAILABLE)

33164-MG9-771

Unavailable

LENS, L. POSITION LIGHT (NOT AVAILABLE)

33170-MG9-771

Unavailable

LENS, R. POSITION LIGHT (NOT AVAILABLE)

33171-MG9-771

Unavailable

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

BULB, POSITION (12V 4W)

34903-388-611

$4.77

WASHER, SPECIAL

90150-MG9-771

Unavailable

SCREW, PAN (3X10)

93500-03010-0G

Unavailable

SCREW, TAPPING (4X10)

93901-34220

$1.49

SCREW, TAPPING (4X16)

93901-34420

$1.49

NUT, HEX. (12MM)

94002-12080-0S

$1.66

WASHER, PLAIN (12MM)

94101-12700

$3.81
