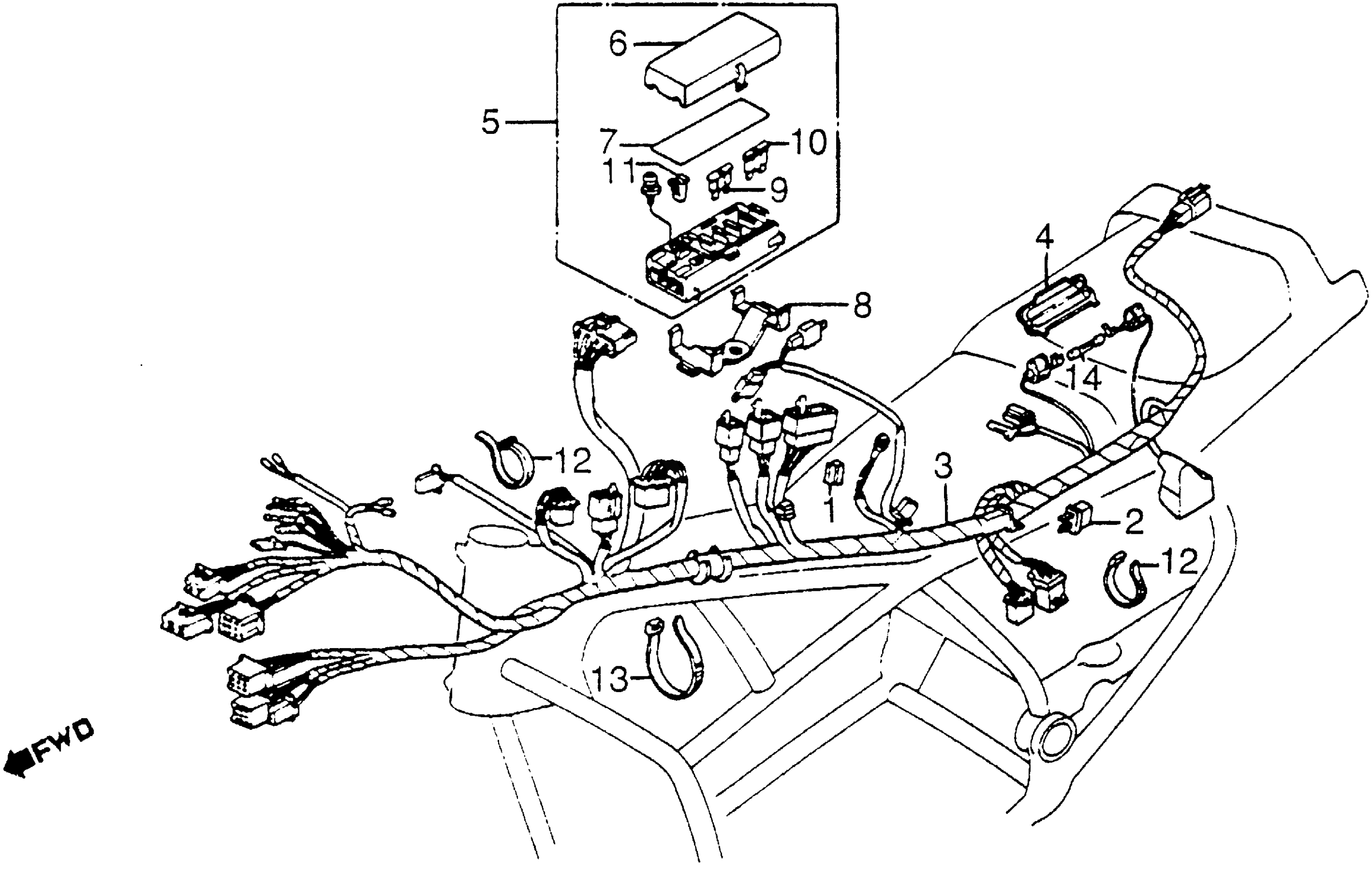

Honda GL1200AA (85) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-FA102502 TO 1HFSC142-FA126301 1200/I/AWIRE HARNESS Diagram

#

Description
Price

1

CONDENSER (NOT AVAILABLE)

30511-MG9-680

Unavailable

2

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

2

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

3

WIRE HARNESS (NOT AVAILABLE)

32100-MG9-930

Unavailable

5

BOX ASSY FUSE This part replaces 38000-MG9-931.

38000-MG9-405

Unavailable

6

COVER ASSY., FUSE (NOT AVAILABLE) This part replaces 38210-MG9-681.

38210-ML8-671

Unavailable

7

LABEL, FUSE

38215-MG9-931

Unavailable

8

HOLDER, FUSE BOX

38220-MG9-010

$20.75

9

FUSE, BLADE (15A)

98200-31500

$1.49

10

FUSE, BLADE (10A)

98200-31000

$1.49

11

PULLER, FUSE (DAIICHI)

38235-SA5-004

Unavailable

12

BAND, WIRE HARNESS

90650-MA6-720

$4.15

13

BAND, WIRE HARNESS

90651-MA6-720

$3.73

14

FUSE B (10A)

98200-21000

$1.49
