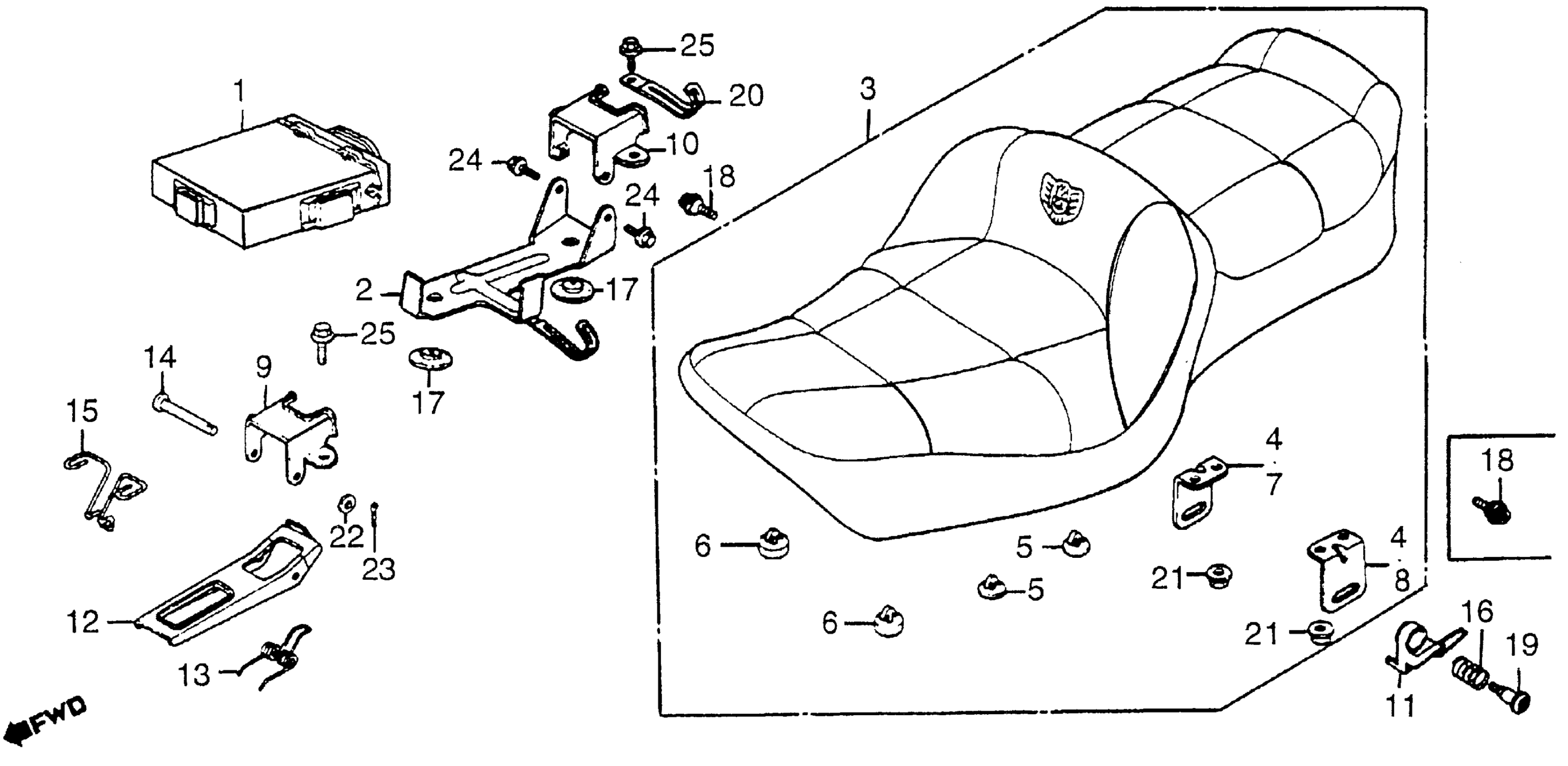

Honda GL1200AA (84) GOLD WING ASPENCADE, USA, VIN# 1HFSC142-EA002273 TO 1HFSC142-EA034452 SEAT Diagram

SEAT *YR87L* (TYPE2) (CLASSIC BROWN)

77200-MG9-870ZB

Unavailable

SEAT *R51L* (TYPE1) (MIDNIGHT MAROON) (NOT AVAILABLE)

77200-MG9-870ZA

Unavailable

STAY, RR. (NOT AVAILABLE)

77202-MG9-000

Unavailable

CLIP A (NOT AVAILABLE)

77203-MG9-000

Unavailable

CLIP B

77203-MG9-870

Unavailable

STAY, SEAT (UPPER)

77231-MG9-000

Unavailable

LEVER, SEAT ADJUSTING (NOT AVAILABLE)

77232-MG9-000

Unavailable

SPRING, SEAT ADJUSTING (NOT AVAILABLE)

77233-MG9-000

Unavailable

PIN, SEAT ADJUSTING (NOT AVAILABLE)

77234-MG9-000

Unavailable

SPRING, SEAT LOCK (NOT AVAILABLE)

77235-MG9-000

Unavailable

BOLT ASSY., SOCKET

90118-MG9-000

Unavailable

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

PIN, SPLIT (1.6X12)

94201-16120

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
