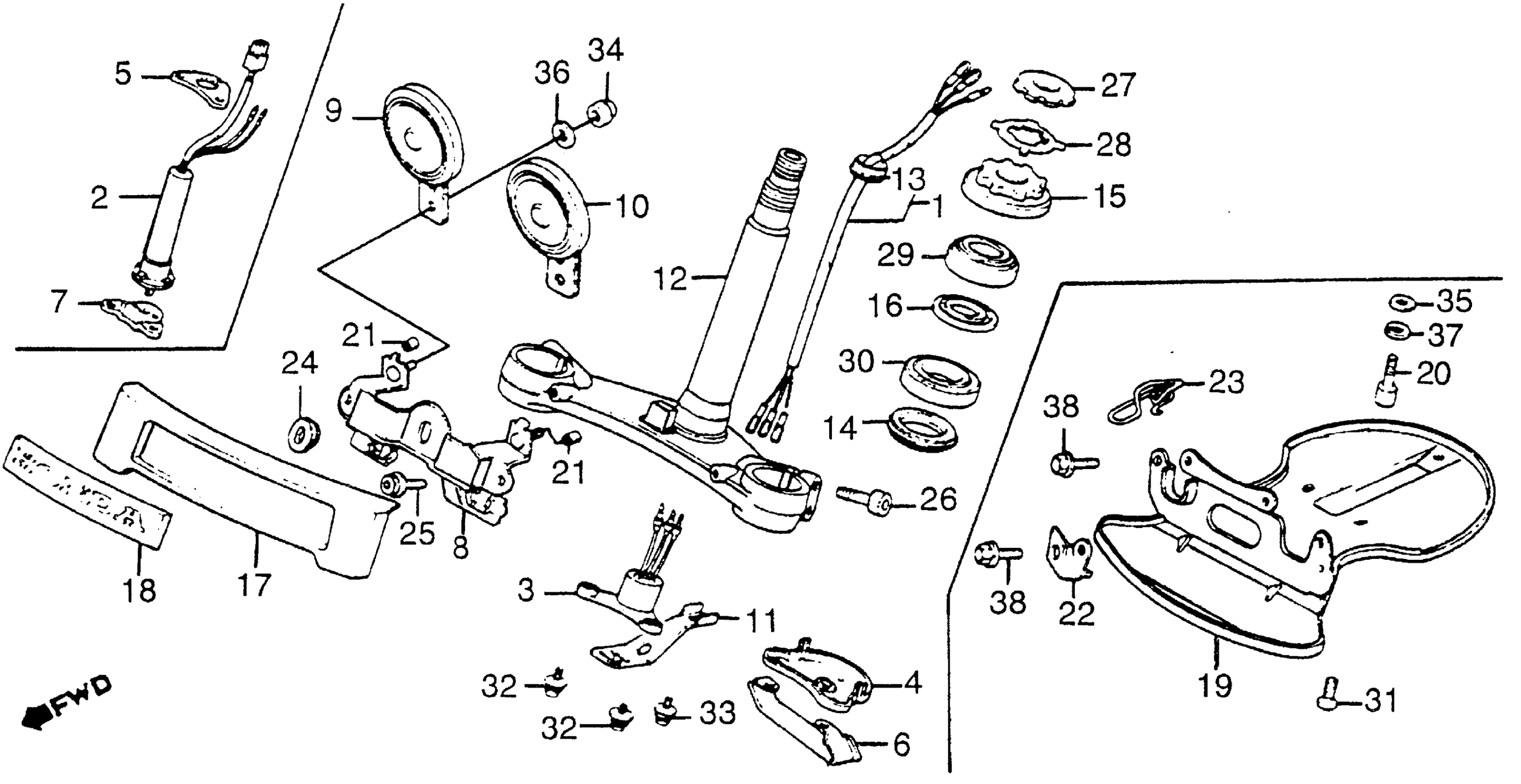

Honda GL1200A (84) GOLD WING, USA, VIN# 1HFSC140-EA000101 TO 1HFSC140-EA022728 STEERING STEM + HORN Diagram

SUB-WIRE, ANGLE (NOT AVAILABLE) This part replaces 32108-MG9-000.

32108-MB9-000

Unavailable

SENSOR, ANGLE (NOT AVAILABLE)

35230-MB9-007

Unavailable

COVER, ANGLE SENSOR (NOT AVAILABLE)

35231-MB9-000

Unavailable

GUIDE, WIRE HARNESS

35233-MG9-000

Unavailable

STAY, HORN (NOT AVAILABLE)

38102-MG9-000

Unavailable

HORN ASSY. (HIGH) This part replaces 38110-MG1-004.

38110-MJ1-831

Unavailable

HORN ASSY. (HIGH)

38110-MJ1-831

Unavailable

HORN ASSY. (LOW) (NOT AVAILABLE) This part replaces 38120-MB1-700.

38120-MB1-740

Unavailable

HORN ASSY. (LOW) (NOT AVAILABLE)

38120-MB1-740

Unavailable

SUPPORT, SENSOR This part replaces 50231-MB9-000.

50231-MB9-010

$9.77

SUPPORT, SENSOR

50231-MB9-010

$9.77

STEM, STEERING This part replaces 53200-MG9-000.

53200-MG9-680

Unavailable

STEM, STEERING

53200-MG9-680

Unavailable

CAP, STEERING STEM (NOT AVAILABLE)

53209-MB9-000

Unavailable

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

THREAD, STEERING HEAD TOP

53220-422-000

$32.73

HOLDER, GREASE

53223-371-010

Unavailable

COVER, FR. (NOT AVAILABLE)

61401-MG9-000

Unavailable

EMBLEM, FR. COVER (NOT AVAILABLE)

61402-MG9-000

Unavailable

TUBE, RUBBER (NOT AVAILABLE)

61405-MG9-000

Unavailable

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

BOLT, FLANGE SOCKET (6X14)

90009-MG9-000

Unavailable

BOLT, SOCKET

90116-391-670

Unavailable

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$31.00

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$31.00

BEARING, HEAD PIPE (LOWER)

91016-371-000

$55.12

SCREW-WASHER (5X20)

93893-05020-08

$1.49

SCREW-WASHER (5X10)

93894-05010-07

$1.49

NUT, CAP (6MM)

94021-06070-0S

$1.62

WASHER, PLAIN (6MM)

94101-06700

$1.49
