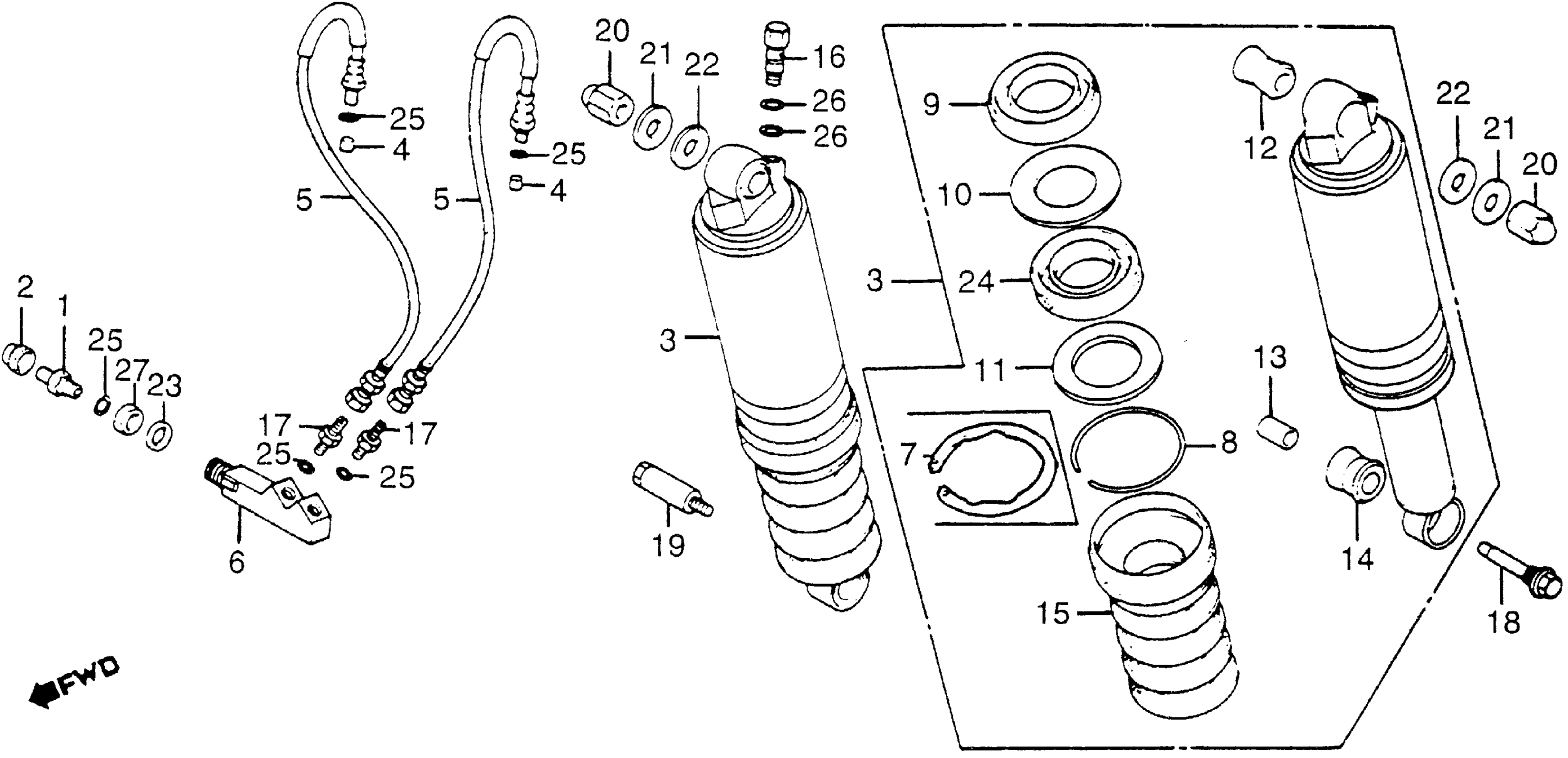

Honda GL1200A (84) GOLD WING, USA, VIN# 1HFSC140-EA000101 TO 1HFSC140-EA022728 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

VALVE, AIR (SHOWA)

51456-469-013

$33.69

2

CAP ASSY., AIR VALVE

51457-469-000

Unavailable

3

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-MG9-671

Unavailable

5

HOSE, AIR (NOT AVAILABLE)

52432-MG9-671

Unavailable

6

JOINT (THREE-WAY) (NOT AVAILABLE)

52434-MG9-671

Unavailable

7

CIRCLIP (INNER) (66MM)

52447-463-003

Unavailable

9

GUIDE, DAMPER CASE

52462-463-003

Unavailable

10

RING A, BACK-UP

52463-463-003

Unavailable

11

RING B, BACK-UP (NOT AVAILABLE)

52464-463-003

Unavailable

12

RUBBER, JOINT

52484-292-000

$5.87

13

COLLAR, RR. SHOCK ABSORBER

52486-MG9-671

$10.62

14

BUSH, RUBBER (UPPER) (SHOWA)

52489-461-771

$6.34

15

BOOT, RR. SHOCK ABSORBER

52611-MG9-671

$48.20

17

CONNECTOR (NOT AVAILABLE)

53140-MG9-671

Unavailable

18

BOLT, BRAKE STOPPER (NOT AVAILABLE)

90158-MG9-000

Unavailable

19

BOLT, RR. CUSHION

90159-MG9-000

$17.60

20

NUT, FLANGE (10MM)

90309-315-000

$5.35

21

WASHER (10.3MM)

90521-292-000

$3.42

22

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

23

WASHER, PLAIN (14MM) (NOT AVAILABLE)

90549-444-000

Unavailable

24

OIL SEAL (36X66X10.5)

91257-MG9-671

$19.31

25

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

25

O-RING (5.8X1.9)

91305-323-000

$2.92

25

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

27

NUT, HEX. (14MM)

94002-14080-0S

$2.08
