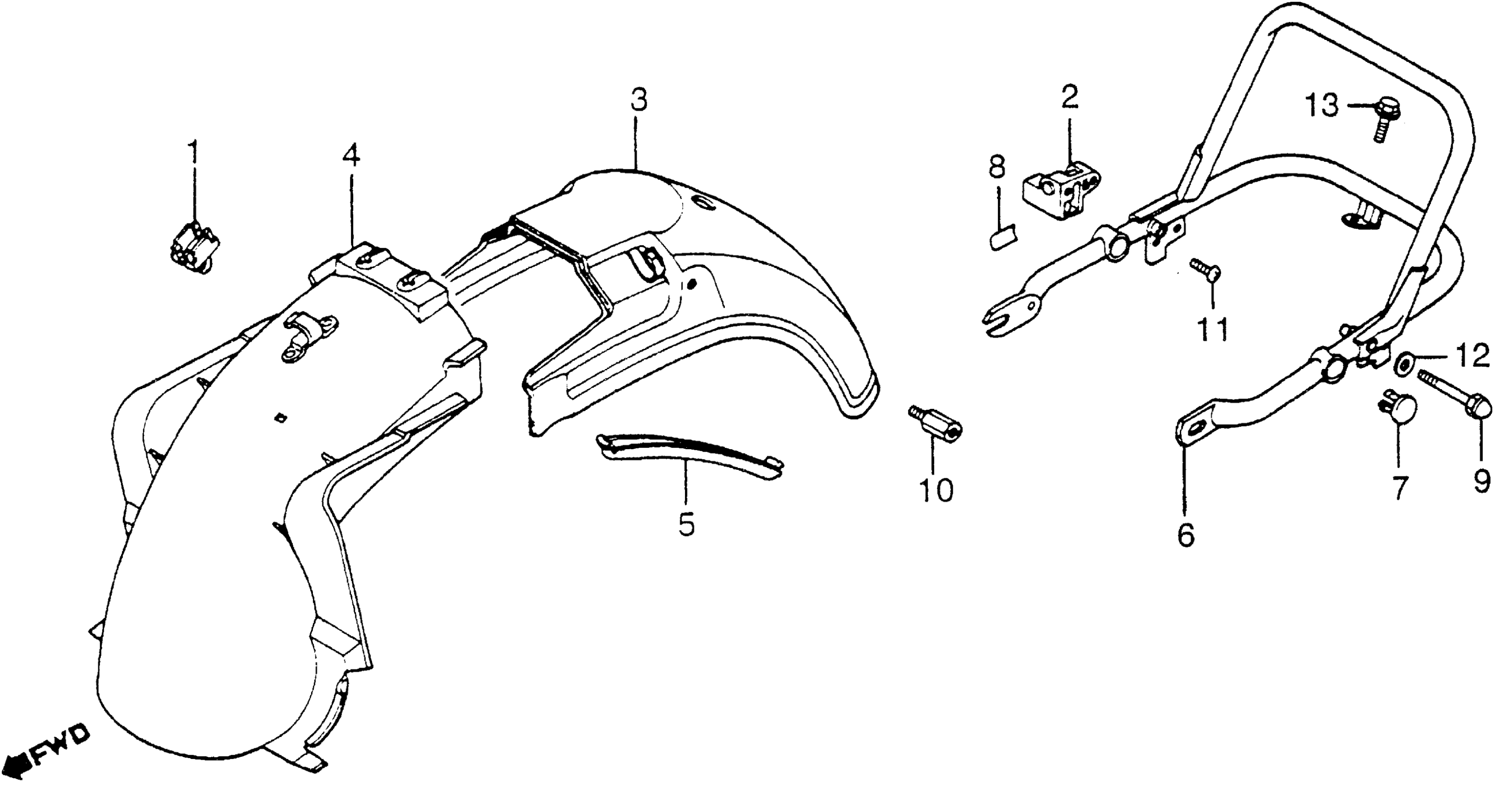

Honda GL1200A (84) GOLD WING, USA, VIN# 1HFSC140-EA000101 TO 1HFSC140-EA022728 REAR FENDER 84 Diagram

HOLDER, CONNECTOR (NOT AVAILABLE)

32637-MG9-000

Unavailable

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

HOLDER ASSY., HELMET (HONDALOCK) This part replaces 50710-371-007.

50710-086-007

$70.34

FENDER A, RR. *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

80100-MG9-670ZA

Unavailable

FENDER A, RR. *NH1Z* (BLACK-Z) (NOT AVAILABLE)

80100-MG9-670ZB

Unavailable

FENDER B, RR. (NOT AVAILABLE)

80101-MG9-000

Unavailable

GUARD, SUB-WIRE (NOT AVAILABLE)

80102-MG9-000

Unavailable

BUMPER, RR. (NOT AVAILABLE)

84101-MG9-000

Unavailable

CAP, RR. BUMPER (NOT AVAILABLE)

84102-MG9-000

Unavailable

LABEL, HELMET HOLDER

87511-323-670

$2.72

BOLT, CAP (8X60) (NOT AVAILABLE) This part replaces 90103-MG9-000.

92600-08060-0B

Unavailable

BOLT, RR. BUMPER MOUNT

90160-425-000

Unavailable

SCREW, PAN (6X12)

93500-06012-0A

$1.49

WASHER, PLAIN (8MM)

94101-08200

$1.49

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
