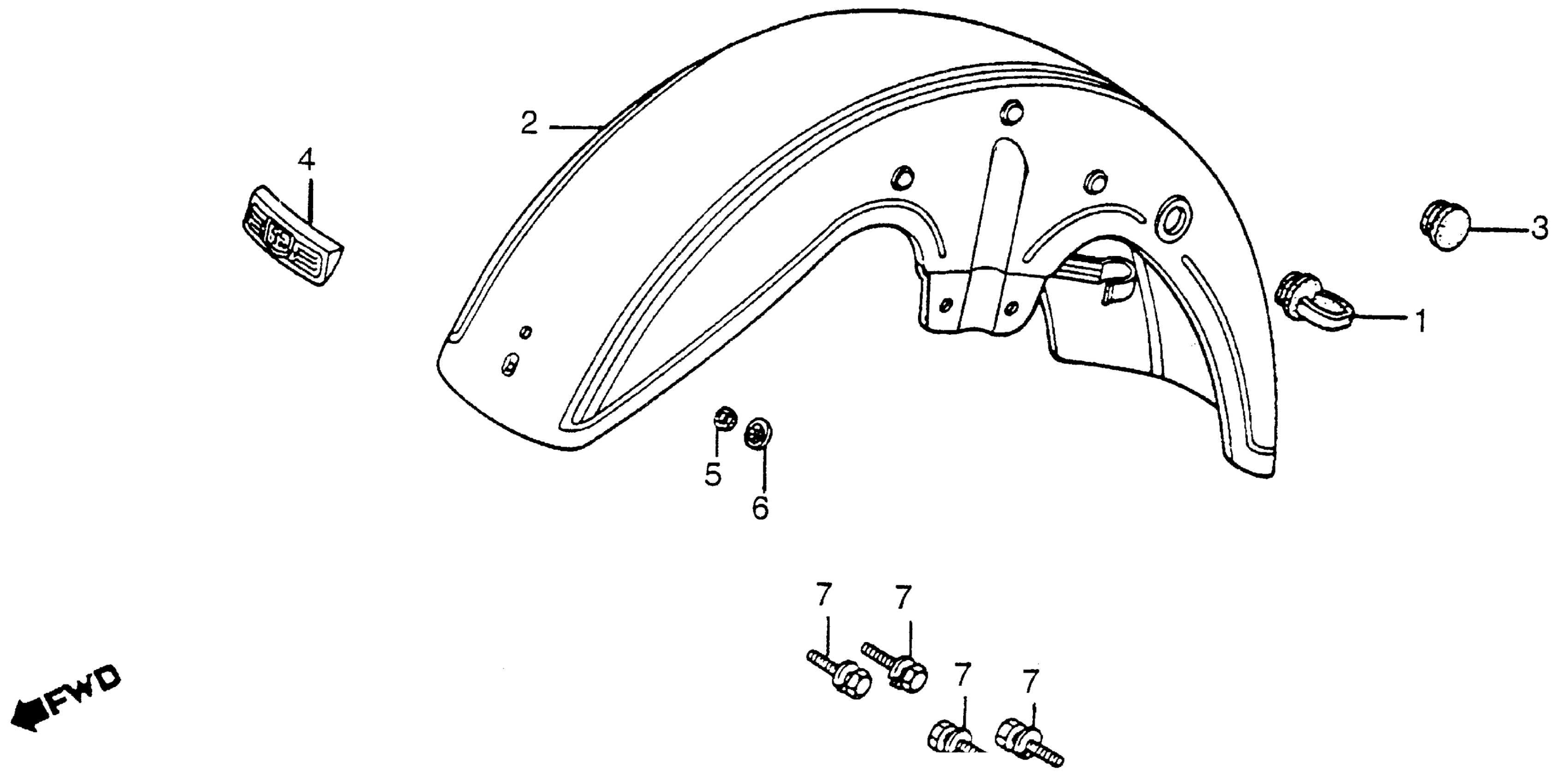

Honda GL1200A (84) GOLD WING, USA, VIN# 1HFSC140-EA000101 TO 1HFSC140-EA022728 FRONT FENDER Diagram

#

Description

Price

1

GROMMET, WIRE

45451-471-000

$4.03

2

FENDER, FR. NH1Z (BLACK-Z)

61100-MG9-000ZC

Unavailable

2

FENDER, FR. R114CU (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

61100-MG9-000ZA

Unavailable

4

EMBLEM, FR. FENDER

87124-MG9-000

Unavailable

5

RUBBER, RR. EMBLEM SETTING

87411-538-910

$6.52

6

NUT, SPEED (3MM)

90313-567-000

$3.69

7

BOLT-WASHER (6X16)

93402-06016-00

Unavailable

7

BOLT-WASHER (6X16) This part replaces 93482-06016-00.

93402-06016-00

Unavailable
