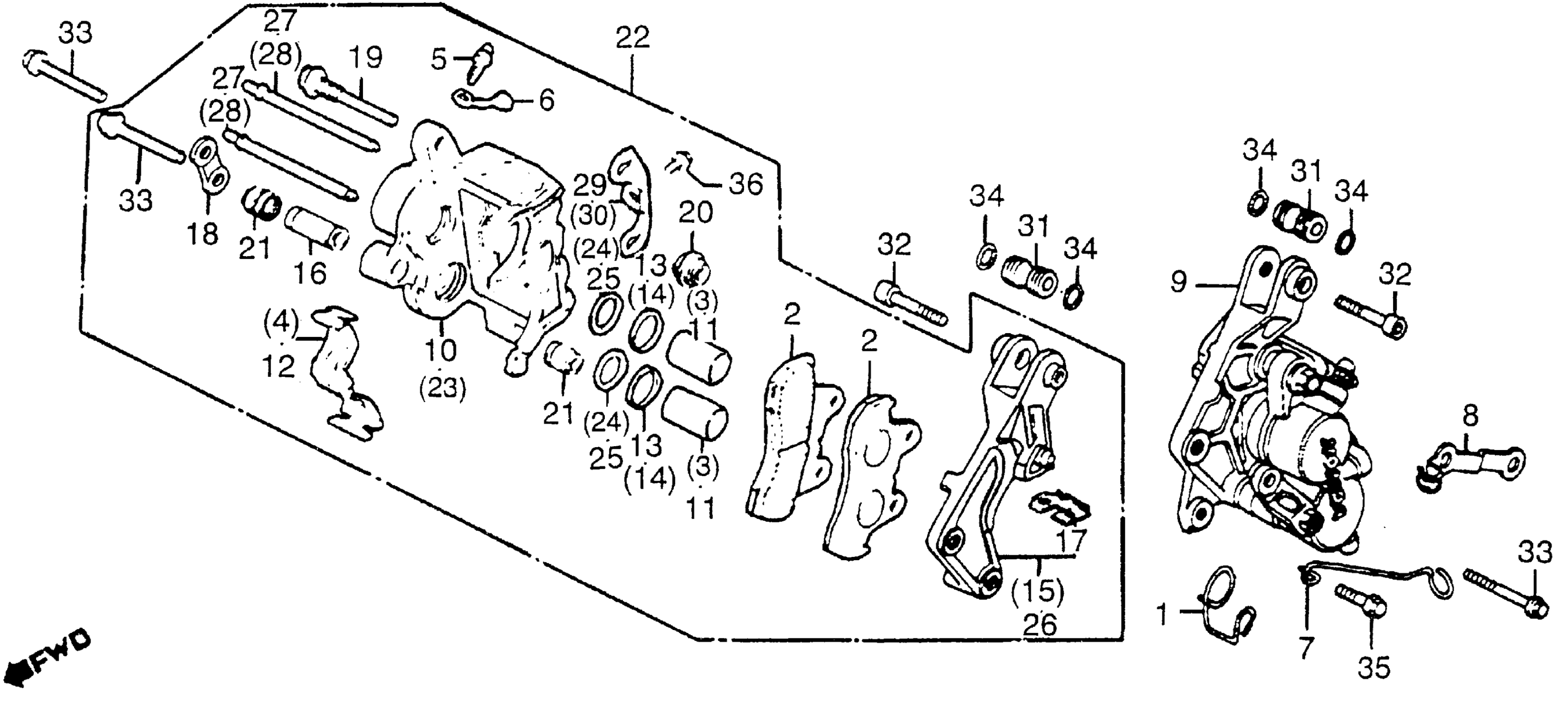

Honda GL1200A (84) GOLD WING, USA, VIN# 1HFSC140-EA000101 TO 1HFSC140-EA022728 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

BRAKE PAD KIT This part replaces 431A0-MB4-307.

431A0-MB4-306

$43.83

NI

BRAKE PAD KIT

431A0-MB4-306

$43.83

2

PAD, RR. (ASK) This part replaces 43105-MB4-007.

43105-MB4-017

$24.10

2

PAD, RR. (ASK)

43105-MB4-017

$24.10

3

PISTON

43107-MA7-006

$45.55

4

SPRING, PAD

43108-MB9-781

Unavailable

5

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

6

CAP, BLEEDER

43353-461-771

$5.05

7

CLAMP, SPEEDOMETER CABLE

44832-MB9-780

Unavailable

9

CALIPER ASSY., L. FR. (NOT AVAILABLE)

45100-MG9-305

Unavailable

10

CALIPER, L. (NOT AVAILABLE)

45101-MG9-305

Unavailable

11

PISTON (25.4MM)

45107-MB9-781

$39.51

12

SPRING, PAD

43108-MB9-781

Unavailable

13

DUST SEAL

45109-GE2-006

$5.31

14

DUST SEAL

45109-MA7-006

$5.31

15

BRACKET, L. FR. (NOT AVAILABLE)

45110-MG9-006

Unavailable

16

SLEEVE

45111-MA3-006

$13.38

17

RETAINER, BRACKET

45112-445-631

$8.98

18

BRIDGE, CALIPER BRACKET (NOT AVAILABLE)

45113-MG9-000

Unavailable

19

BOLT, PIN

45131-MA3-006

$17.59

20

BOOT B

45133-MA3-006

$5.46

21

BOOT, PIN

45133-166-016

$3.85

22

CALIPER ASSY., R. FR. (NOT AVAILABLE)

45200-MG9-305

Unavailable

23

CALIPER, R. (NOT AVAILABLE)

45201-MG9-305

Unavailable

24

SEAL, PISTON

45209-GE2-006

$6.91

25

SEAL, PISTON

45209-MA7-006

$6.61

26

BRACKET, R. FR. (NOT AVAILABLE)

45210-MG9-006

Unavailable

27

PIN, HANGER

45215-MA2-006

Unavailable

28

PIN, HANGER This part replaces 45215-MA6-006.

45215-MA6-016

Unavailable

29

PLATE

45217-MA3-006

$4.45

30

PLATE

45217-MA3-006

$4.45

31

SLEEVE, FR. CALIPER BRACKET

51536-MB2-000

Unavailable

32

BOLT, SOCKET (10X40)

90131-MB2-000

Unavailable

33

BOLT, FLANGE (8X55)

90180-MA3-660

$4.72

34

O-RING (13.8X2.4) (NOK) This part replaces 91308-MC7-003.

91311-PH7-003

$2.28

34

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.28

35

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

35

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

36

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

36

BOLT, FLANGE (6X10)

95701-06010-07

$1.62
