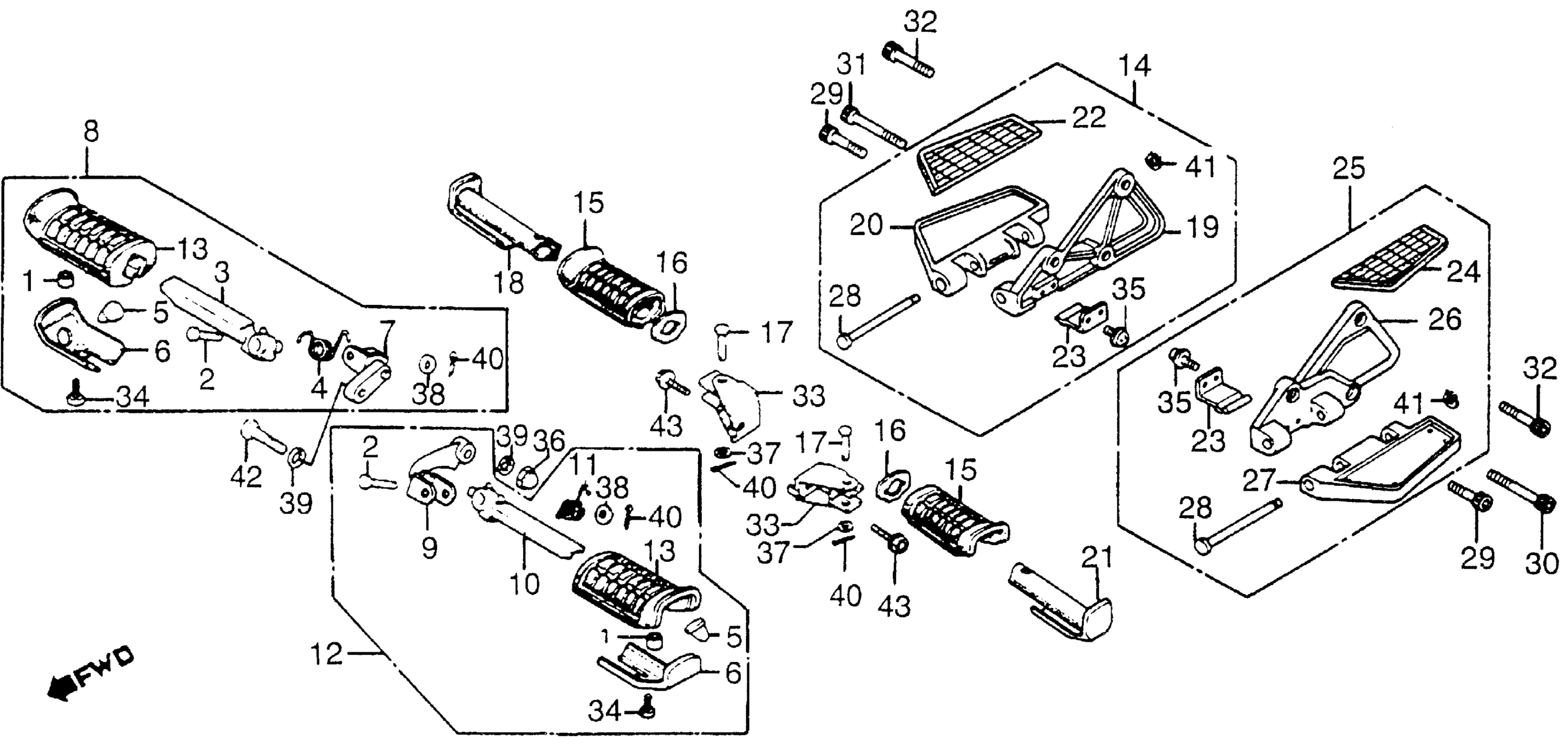

Honda GL1200A (84) GOLD WING, USA, VIN# 1HFSC140-EA000101 TO 1HFSC140-EA022728 FOOTPEGS Diagram

#

Description
Price

1

COLLAR, CHAIN CASE

40515-413-000

$2.92

2

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

2

PIN, STEP BAR JOINT

50603-033-010

$3.30

3

BAR, R. STEP

50612-MG9-000

Unavailable

4

SPRING, R. STEP RETURN

50617-300-670

Unavailable

5

SLIDER, FOOTPEG (NOT AVAILABLE)

50618-MB0-000

Unavailable

6

STOPPER, STEP RUBBER

50619-MB1-000

Unavailable

7

BRACKET, R. STEP (NOT AVAILABLE) This part replaces 50630-MG9-000.

50630-MG9-010

Unavailable

8

STEP ASSY., R. MAIN (NOT AVAILABLE)

50635-MG9-000

Unavailable

9

BRACKET, L. STEP (NOT AVAILABLE)

50640-MG9-000

Unavailable

10

BAR, L. STEP

50642-MG9-000

Unavailable

11

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-300-670

Unavailable

12

FOOTPEG ASSY., L. MAIN

50645-MG9-000

Unavailable

13

RUBBER, MAIN STEP

50661-MB1-000

Unavailable

15

RUBBER, PILLION STEP

50713-MB1-000

$15.82

16

WASHER, PILLION STEP

50714-MB1-000

Unavailable

17

PIN B, PILLION STEP

50714-371-660

Unavailable

18

BAR, R. PILLION STEP

50715-MB9-780

Unavailable

21

BAR, L. PILLION STEP

50718-MB9-780

Unavailable

33

BRACKET, PILLION STEP

90167-371-660

Unavailable

34

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

34

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

34

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

36

NUT, CAP (12MM)

94021-12200-0S

Unavailable

37

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

37

WASHER, PLAIN (6MM)

94101-06800

$1.49

38

WASHER, PLAIN (8MM)

94101-08000

$1.49

39

WASHER, SPRING (12MM)

94111-12000

$1.49

40

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

40

PIN, COTTER (1.6X25)

94201-16250

$1.49

42

BOLT, HEX. (12X35)

95300-12035

Unavailable

43

BOLT, FLANGE (10X16) This part replaces 95700-10016-00.

95701-10016-08

$2.25

43

BOLT, FLANGE (10X16) This part replaces 95700-10016-08.

95701-10016-08

$2.25

43

BOLT, FLANGE (10X16)

95701-10016-08

$2.25
