- GL1200A (84) GOLD WING, USA, VIN# 1HFSC140-EA000101 TO 1HFSC140-EA022728
1200/A/IHANDLEBAR + KEY SET 84-85

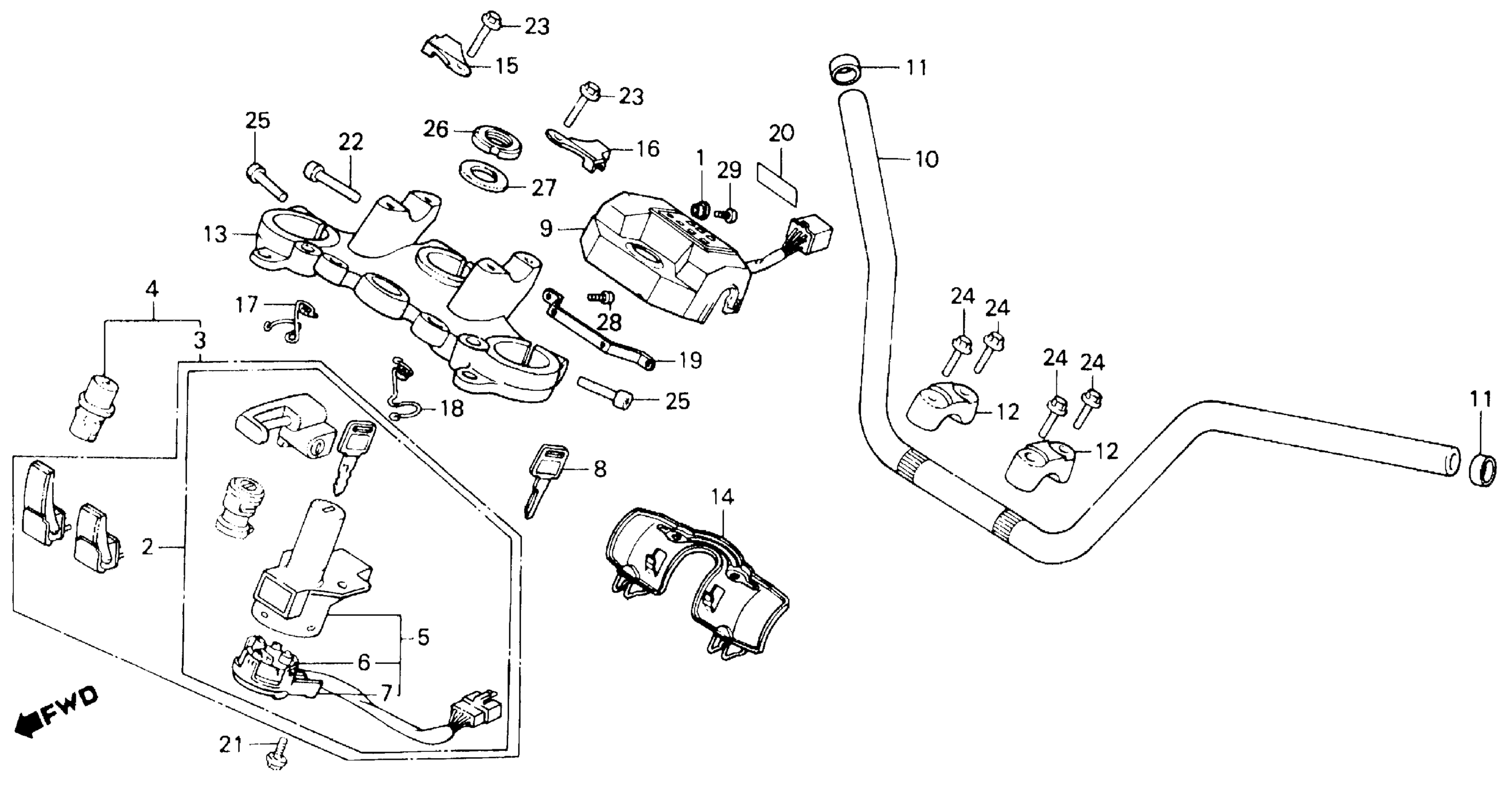

Honda GL1200A (84) GOLD WING, USA, VIN# 1HFSC140-EA000101 TO 1HFSC140-EA022728 1200/A/IHANDLEBAR + KEY SET 84-85 Diagram
#
Description
Price
2
LOCK SET (NOT AVAILABLE) This part replaces 35010-MG9-670.
35010-MG9-672
Unavailable
2
LOCK SET (NOT AVAILABLE) This part replaces 35010-MG9-671.
35010-MG9-672
Unavailable
2
LOCK SET (NOT AVAILABLE)
35010-MG9-672
Unavailable
5
SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE) This part replaces 35100-MG9-671.
35100-MG9-674
Unavailable
5
SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE) This part replaces 35100-MG9-672.
35100-MG9-674
Unavailable
5
SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE) This part replaces 35100-MG9-673.
35100-MG9-674
Unavailable
5
SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE)
35100-MG9-674
Unavailable
6
BASE, CONTACT (NOT AVAILABLE) This part replaces 35101-MG9-671.
35104-MG9-305
Unavailable
6
BASE, CONTACT (NOT AVAILABLE) This part replaces 35101-MG9-672.
35104-MG9-305
Unavailable
6
BASE, CONTACT (NOT AVAILABLE)
35104-MG9-305
Unavailable
8
KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MA6-811.
35121-KW3-771
$10.10
8
KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MA6-811.
35122-KW3-771
$10.10
9
COVER, HANDLE (NOT AVAILABLE)
37600-MG9-000
Unavailable
10
HANDLEBAR (NOT AVAILABLE) This part replaces 53100-MG9-000.
53100-MG9-770
Unavailable
13
BRIDGE, FORK TOP (NOT AVAILABLE)
53230-MG9-000
Unavailable
20
LABEL, FR. FORK CAUTION (NOT AVAILABLE)
87517-MB1-770
Unavailable
22
BOLT, SPECIAL SOCKET
90106-422-000
Unavailable
25
BOLT, SOCKET (7X38)
90151-MB0-000
Unavailable
26
NUT, STEERING STEM (NOT AVAILABLE)
90304-371-000
Unavailable
