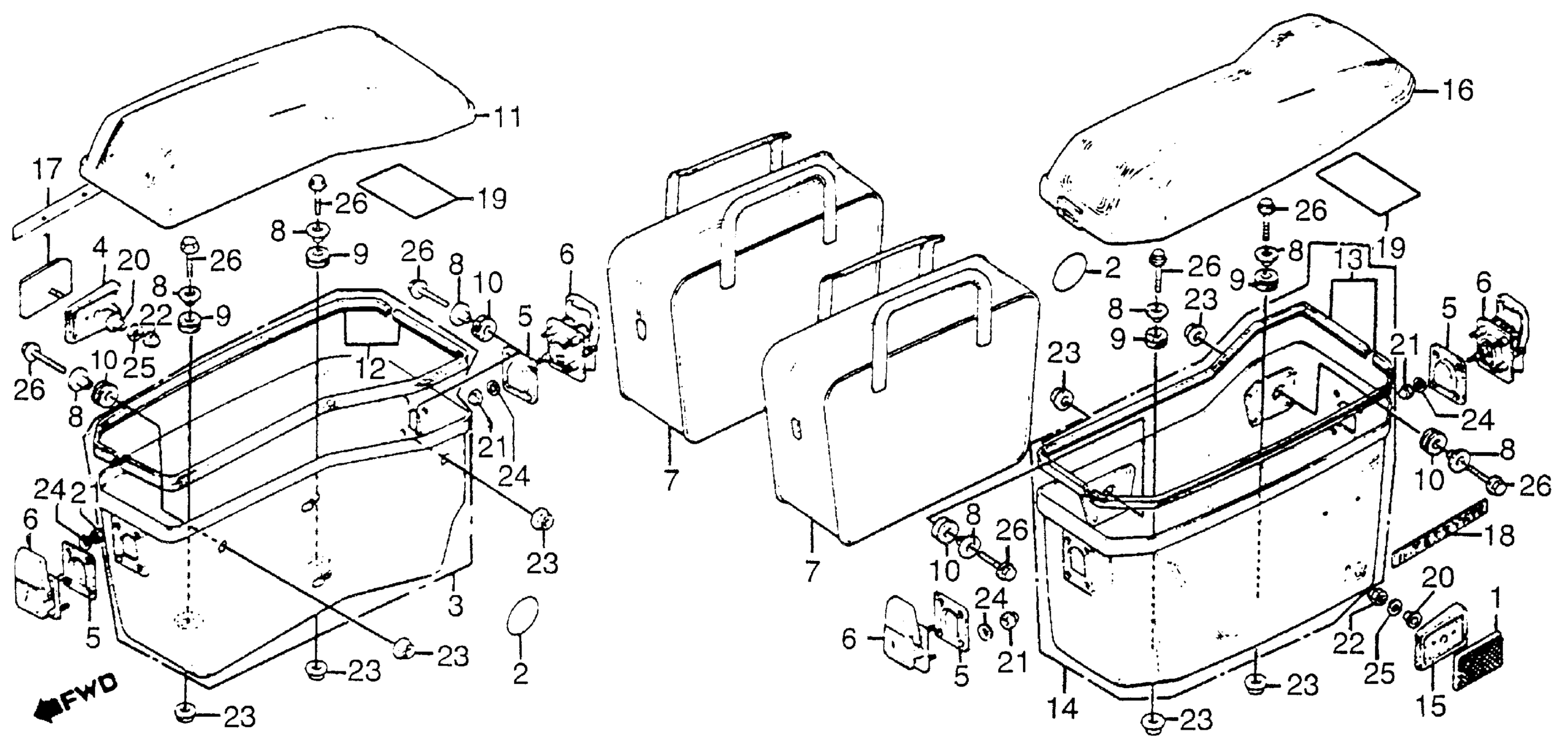

Honda GL1100IA (83) GOLD WING INTERSTATE, USA, VIN# 1HFSC021-DA300101 SADDLEBAG Diagram

#

Description
Price

1

REFLECTOR, RR. REFLEX This part replaces 33741-415-601.

33741-415-602

Unavailable

1

REFLECTOR, RR. REFLEX

33741-415-602

Unavailable

2

SEAL, DOOR HOLE (30MM) (CIRCLE)(BLACK)

75826-605-300

$3.35

2

SEAL, DOOR HOLE (30MM) (BLACK)

91619-SE0-000

$3.35

3

SADDLEBAG, R. (LOWER) *NH1* (BLACK) (NOT AVAILABLE)

81210-MB9-970ZA

Unavailable

3

SADDLEBAG, R. (LOWER) *YR120CU* (CANDY REGAL BROWN-U) (NOT AVAILABLE)

81210-MB9-970ZB

Unavailable

3

SADDLEBAG, R. (LOWER) *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

81210-MB9-970ZD

Unavailable

4

BASE, R. REFLEX REFLECTOR (NOT AVAILABLE)

81216-463-770

Unavailable

5

RUBBER, LOCK

81217-463-770

$3.74

6

LOCK ASSY., SIDE BAG

81218-463-770

Unavailable

7

BAG (INNER) (NOT AVAILABLE)

81228-463-770

Unavailable

8

COLLAR, SADDLEBAG SETTING

81245-463-770

Unavailable

9

RUBBER A, SADDLEBAG SETTING

81246-463-770

Unavailable

10

RUBBER B, SADDLEBAG SETTING

81247-463-770

$3.56

11

SADDLEBAG, R. (UPPER) *NH1* (BLACK) (NOT AVAILABLE)

81250-MB9-970ZA

Unavailable

11

SADDLEBAG, R. (UPPER) *YR120CU* (CANDY REGAL BROWN-U) (NOT AVAILABLE)

81250-MB9-970ZB

Unavailable

11

SADDLEBAG, R. (UPPER) *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

81250-MB9-970ZD

Unavailable

12

RUBBER, R. SADDLEBAG SEAL (NOT AVAILABLE)

81325-463-770

Unavailable

13

RUBBER, L. SADDLEBAG SEAL

81326-463-770

Unavailable

14

SADDLEBAG, L. (LOWER) *NH1* (BLACK) (NOT AVAILABLE)

81410-MB9-970ZA

Unavailable

14

SADDLEBAG, L. (LOWER) *YR120CU* (CANDY REGAL BROWN-U) (NOT AVAILABLE)

81410-MB9-970ZB

Unavailable

14

SADDLEBAG, L. (LOWER) *R114CU* (CANDY WINE BERRY RED-U)

81410-MB9-970ZD

Unavailable

15

BASE, L. REFLEX REFLECTOR (NOT AVAILABLE)

81416-463-770

Unavailable

16

SADDLEBAG, L. (UPPER) *NH1* (BLACK) (NOT AVAILABLE)

81450-MB9-970ZA

Unavailable

16

SADDLEBAG, L. (UPPER) *YR120CU* (CANDY REGAL BROWN-U) (NOT AVAILABLE)

81450-MB9-970ZB

Unavailable

16

SADDLEBAG, L. (UPPER) *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

81450-MB9-970ZD

Unavailable

17

EMBLEM, SADDLEBAG (INTERSTATE) (NOT AVAILABLE)

87111-463-770

Unavailable

18

EMBLEM, SADDLEBAG (INTERSTATE) (NOT AVAILABLE)

87111-463-770

Unavailable

19

LABEL, TRUNK SADDLEBAG CAUTION (NOT AVAILABLE)

87520-463-770

Unavailable

20

COLLAR, REFLECTOR SETTING

90129-463-770

$3.15

21

NUT, CAP (4MM)

94021-04000-0S

Unavailable

22

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

22

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

22

NUT, CAP (6MM)

94021-06020

$1.73

22

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

22

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

WASHER, PLAIN (4MM)

94101-04000

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

26

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
