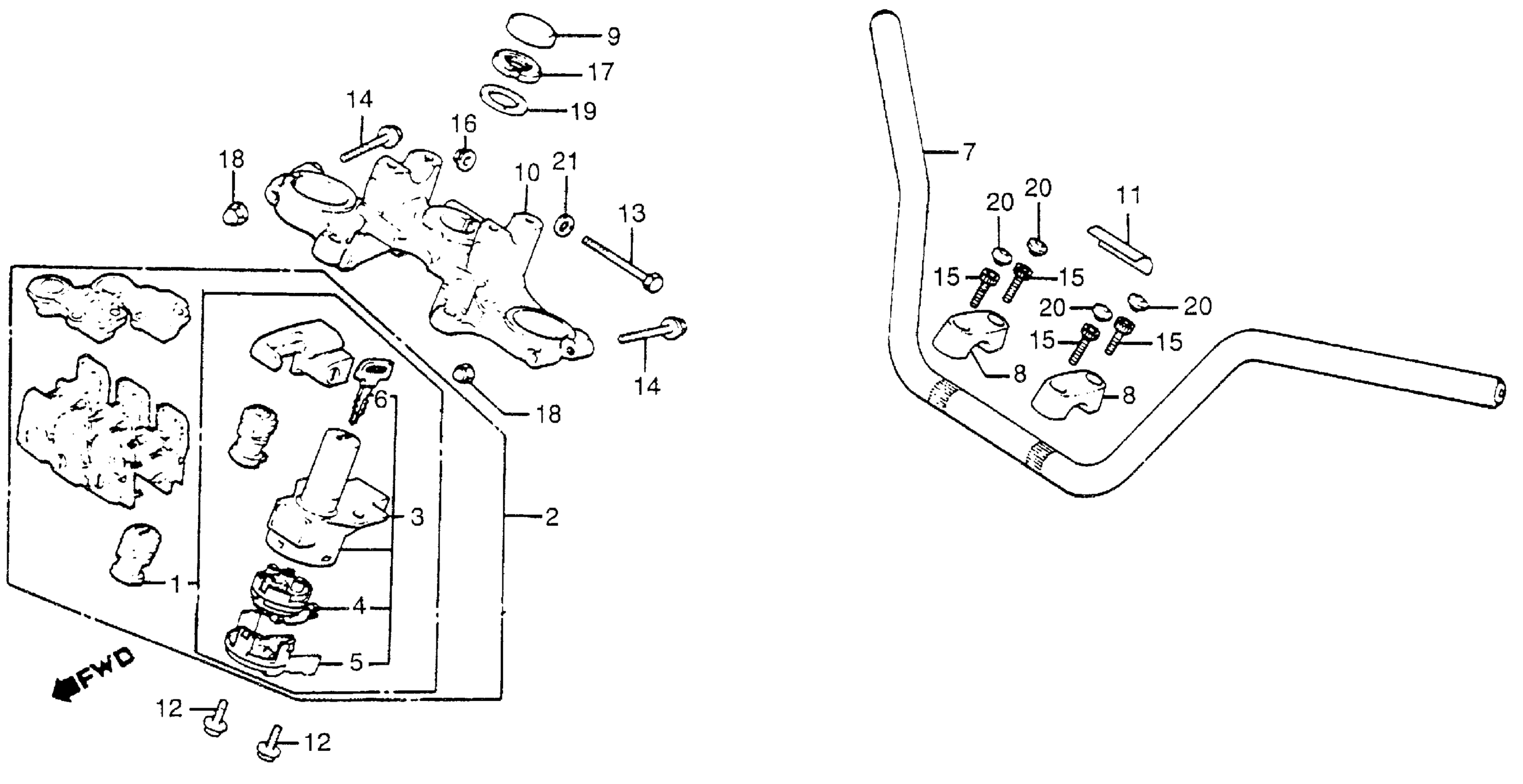

Honda GL1100IA (83) GOLD WING INTERSTATE, USA, VIN# 1HFSC021-DA300101 GL1100I HANDLEBAR + KEY SET Diagram

#

Description
Price

2

LOCK SET (NOT AVAILABLE)

35010-MB9-970

Unavailable

3

SWITCH ASSY., COMBINATION (NOT AVAILABLE)

35100-MB9-010

Unavailable

4

BASE, CONTACT (NOT AVAILABLE)

35101-431-037

Unavailable

5

COVER, SWITCH

35102-431-007

Unavailable

6

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-KW3-771

$10.10

6

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

6

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$10.10

6

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

7

HANDLEBAR (NOT AVAILABLE) This part replaces 53100-MB9-670.

53100-MB9-800

Unavailable

7

HANDLEBAR (NOT AVAILABLE)

53100-MB9-800

Unavailable

8

HOLDER, HANDLEBAR (UPPER)

53131-371-000

$32.20

9

CAP, STEERING STEM (NOT AVAILABLE)

53209-MB9-000

Unavailable

10

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-MB9-780

Unavailable

11

LABEL, FR. FORK CAUTION (NOT AVAILABLE)

87517-463-671

Unavailable

12

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

12

BOLT, FLANGE (8X19) This part replaces 90105-MA6-000.

90104-MJ1-000

$6.31

13

BOLT, HEX. (8X75)

90127-463-000

Unavailable

14

BOLT, FLANGE (7X54)

90155-329-790

Unavailable

15

BOLT, HEX. SOCKET (8X32)

90185-371-000

$6.28

16

NUT, FLANGE (8MM) (NOT AVAILABLE)

90202-425-870

Unavailable

17

NUT, STEERING STEM (NOT AVAILABLE)

90304-371-000

Unavailable

18

NUT, CAP. (7MM) This part replaces 90360-422-000.

90360-428-900

Unavailable

19

WASHER, STEERING STEM

90503-283-000

$4.37

20

CAP, SOCKET BOLT

91456-371-770

$3.47

21

WASHER, FLAT (8MM)

94102-08200

$1.49
