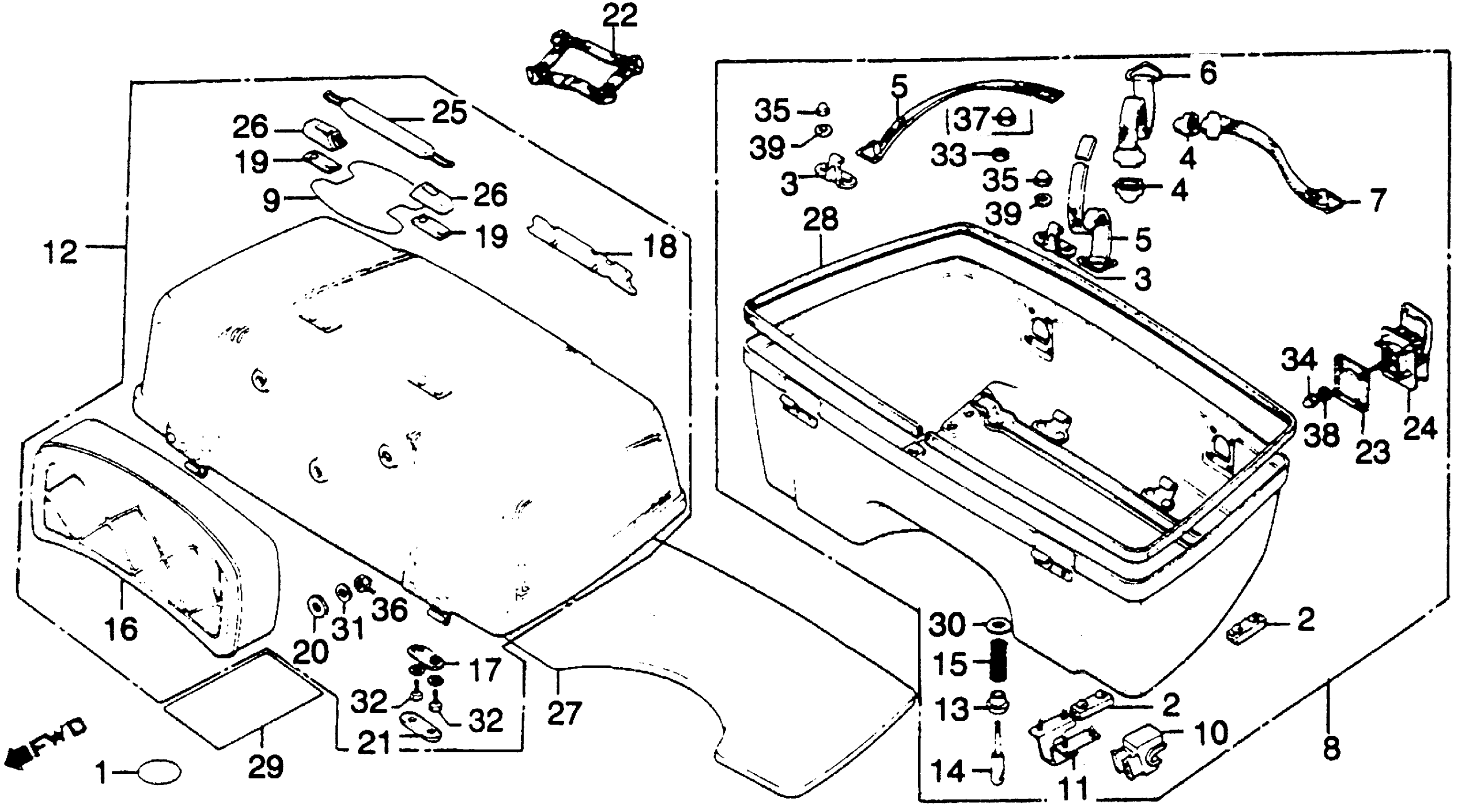

Honda GL1100IA (82) GOLD WING INTERSTATE, USA, VIN# 1HFSC021-CA20010 TO 1HFSC021-CA237630 GL1100I REAR TRUNK Diagram

#

Description
Price

1

SEAL, DOOR HOLE (20MM) (CIRCLE)(BLACK)

75826-605-300

$3.35

1

SEAL, DOOR HOLE (30MM) (BLACK)

91619-SE0-000

$3.35

2

RUBBER, SEAT SETTING

77204-312-000

$5.05

3

BRACKET A, TRUNK BELT (NOT AVAILABLE)

81101-463-770

Unavailable

4

HOOK A, TRUNK BELT (NOT AVAILABLE)

81105-463-770

Unavailable

5

BELT A, TRUNK (NOT AVAILABLE)

81107-463-770

Unavailable

6

BELT B, R. TRUNK (NOT AVAILABLE)

81108-463-770

Unavailable

7

BELT B, L. TRUNK (NOT AVAILABLE)

81109-463-770

Unavailable

8

TRUNK (LOWER) *B100MU* (COSMO BLACK METALLIC)

81110-MB9-770ZA

Unavailable

8

TRUNK (LOWER) *R114CU* (CANDY WINE BERRY RED-U)

81110-MB9-770ZB

Unavailable

8

TRUNK (LOWER) *NH1* (BLACK) (NOT AVAILABLE)

81110-MB9-770ZD

Unavailable

9

PROTECTOR, RR. TRUNK COVER (NOT AVAILABLE)

81111-463-770

Unavailable

10

GUIDE, HOLDER (INNER) (NOT AVAILABLE)

81113-MB9-770

Unavailable

11

PLATE, TRUNK HOLDER

81114-MB9-770

Unavailable

12

TRUNK (UPPER) *B100MU* (COSMO BLACK METALLIC)

81120-MB9-770ZA

Unavailable

12

TRUNK (UPPER) *R114CU* (CANDY WINE BERRY RED-U)

81120-MB9-770ZB

Unavailable

12

TRUNK (UPPER) *NH1* (BLACK) (NOT AVAILABLE)

81120-MB9-770ZD

Unavailable

13

SEAT, LIFT SPRING (NOT AVAILABLE)

81121-463-771

Unavailable

14

BAR, TRUNK SETTING (NOT AVAILABLE)

81122-463-771

Unavailable

15

SPRING, LIFT (NOT AVAILABLE)

81123-463-770

Unavailable

16

BACK, SEAT (NOT AVAILABLE)

81125-MB9-770

Unavailable

17

PLATE, GRIP SETTING

81126-MB9-770

Unavailable

18

EMBLEM, TRUNK (UPPER) (NOT AVAILABLE)

81128-463-770

Unavailable

19

RUBBER, TRUNK GRIP SEAL

81129-463-770

Unavailable

20

SEAL, TRUNK (UPPER)

81131-MB9-770

Unavailable

21

COVER, BOLT (NOT AVAILABLE)

81132-MB9-770

Unavailable

22

BELT C, TRUNK (NOT AVAILABLE)

81133-MB9-770

Unavailable

23

RUBBER, LOCK

81217-463-770

$3.74

24

LOCK ASSY., SIDE BAG

81218-463-770

Unavailable

25

GRIP, TRUNK (NOT AVAILABLE)

81225-463-770

Unavailable

26

HOLDER, TRUNK GRIP (NOT AVAILABLE)

81241-463-770

Unavailable

27

FLOOR MAT, TRUNK (NOT AVAILABLE)

81242-463-770

Unavailable

28

RUBBER, TRUNK SEAL

81420-463-770

Unavailable

29

LABEL, TRUNK SADDLEBAG CAUTION (NOT AVAILABLE)

87520-463-770

Unavailable

30

NUT, HEX. (8MM)

94002-08000-0S

$1.49

31

WASHER, CHAIN CASE SETTING

90504-124-000

Unavailable

32

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

32

BOLT, HEX. (5X12) This part replaces 92100-05012-0A.

92101-05012-0G

$1.49

32

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

32

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

33

NUT, HEX. (8MM)

94001-08000-0S

$1.49

34

NUT, CAP (4MM)

94021-04000-0S

Unavailable

35

NUT, CAP (5MM)

94021-05000-0S

$1.49

36

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

36

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

36

NUT, CAP (6MM)

94021-06020

$1.73

36

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

36

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

38

WASHER, PLAIN (4MM)

94101-04000

$1.49

39

WASHER, SPRING (5MM)

94111-05000

$1.49
