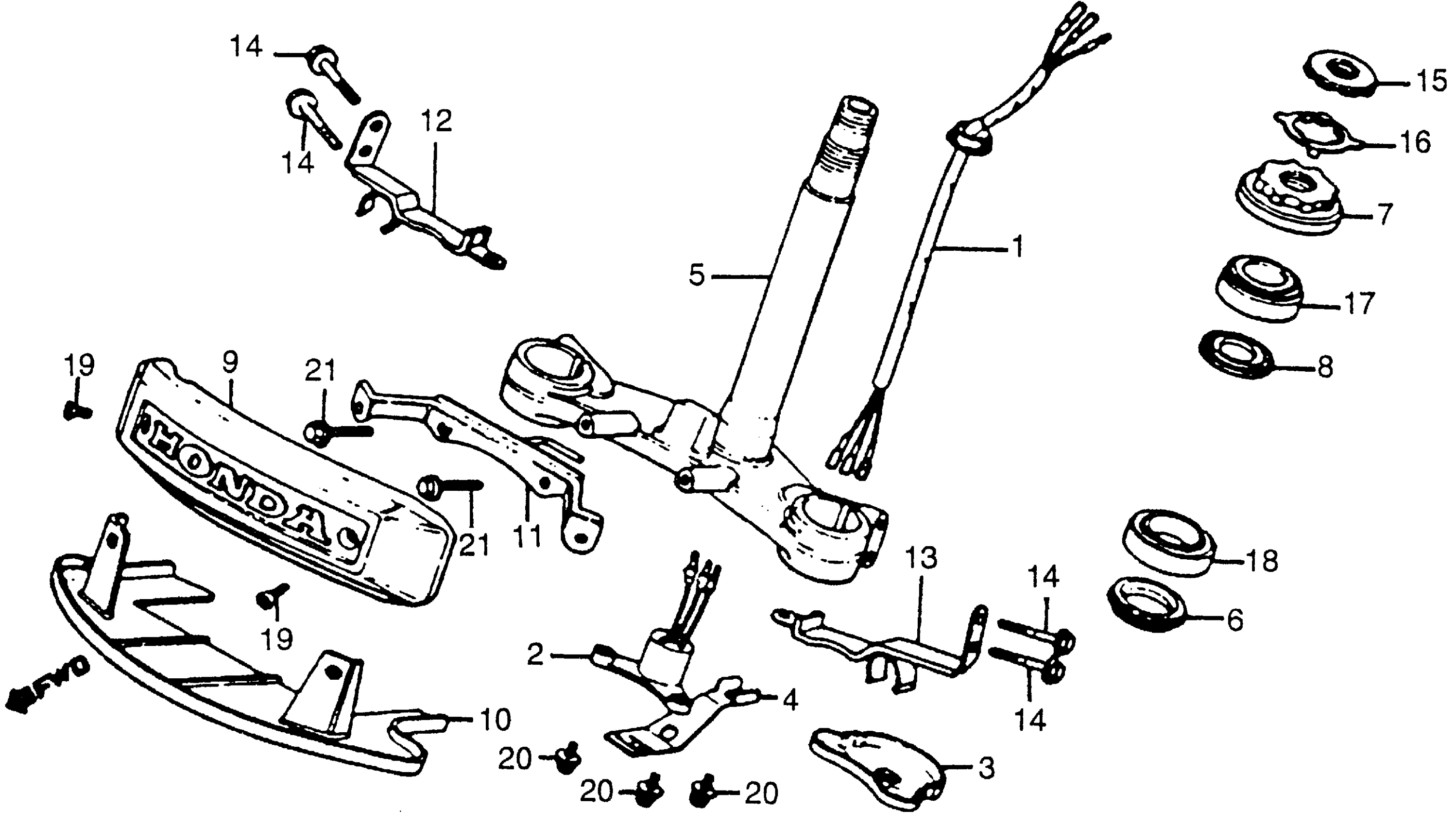

Honda GL1100AA (83) GOLD WING ASPENCADE, USA, VIN# 1HFSC022-DA300101 STEERING STEM Diagram

#

Description
Price

1

SUB-WIRE, ANGLE (NOT AVAILABLE)

32108-MB9-000

Unavailable

2

SENSOR, ANGLE (NOT AVAILABLE)

35230-MB9-007

Unavailable

3

COVER, ANGLE SENSOR (NOT AVAILABLE)

35231-MB9-000

Unavailable

4

SUPPORT, SENSOR This part replaces 50231-MB9-000.

50231-MB9-010

$8.90

4

SUPPORT, SENSOR

50231-MB9-010

$8.90

5

STEM, STEERING (NOT AVAILABLE)

53200-MB9-000

Unavailable

6

DUST SEAL, STEERING HEAD

53214-371-010

$11.28

7

THREAD, STEERING HEAD TOP

53220-422-000

$29.39

8

HOLDER, GREASE

53223-371-010

Unavailable

10

COVER, FR. (NOT AVAILABLE)

61401-MB9-970

Unavailable

11

STAY, FR. COVER (NOT AVAILABLE)

61405-MB9-780

Unavailable

12

GUIDE, R. WIRE HARNESS (NOT AVAILABLE)

61406-MB9-780

Unavailable

13

GUIDE, L. WIRE HARNESS (NOT AVAILABLE)

61407-MB9-780

Unavailable

14

BOLT, FLANGE (8X40)

90118-VM6-000

$4.51

14

BOLT, FLANGE (8X40) This part replaces 90157-422-000.

90118-VM6-000

$4.51

15

THREAD B, STEERING HEAD TOP

90302-425-830

$19.51

16

WASHER, LOCK

90506-425-830

$6.56

17

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$27.84

17

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$27.84

18

BEARING, HEAD PIPE (LOWER)

91016-371-000

$49.50

19

SCREW, FLAT (5X12)

93600-05012-0G

$0.75

19

SCREW, FLAT (5X12) This part replaces 93600-05012-1G.

93600-05012-0G

$0.75

20

SCREW-WASHER (5X20)

93893-05020-08

$1.07

21

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.61

21

BOLT, FLANGE (6X20)

95701-06020-00

$1.61
