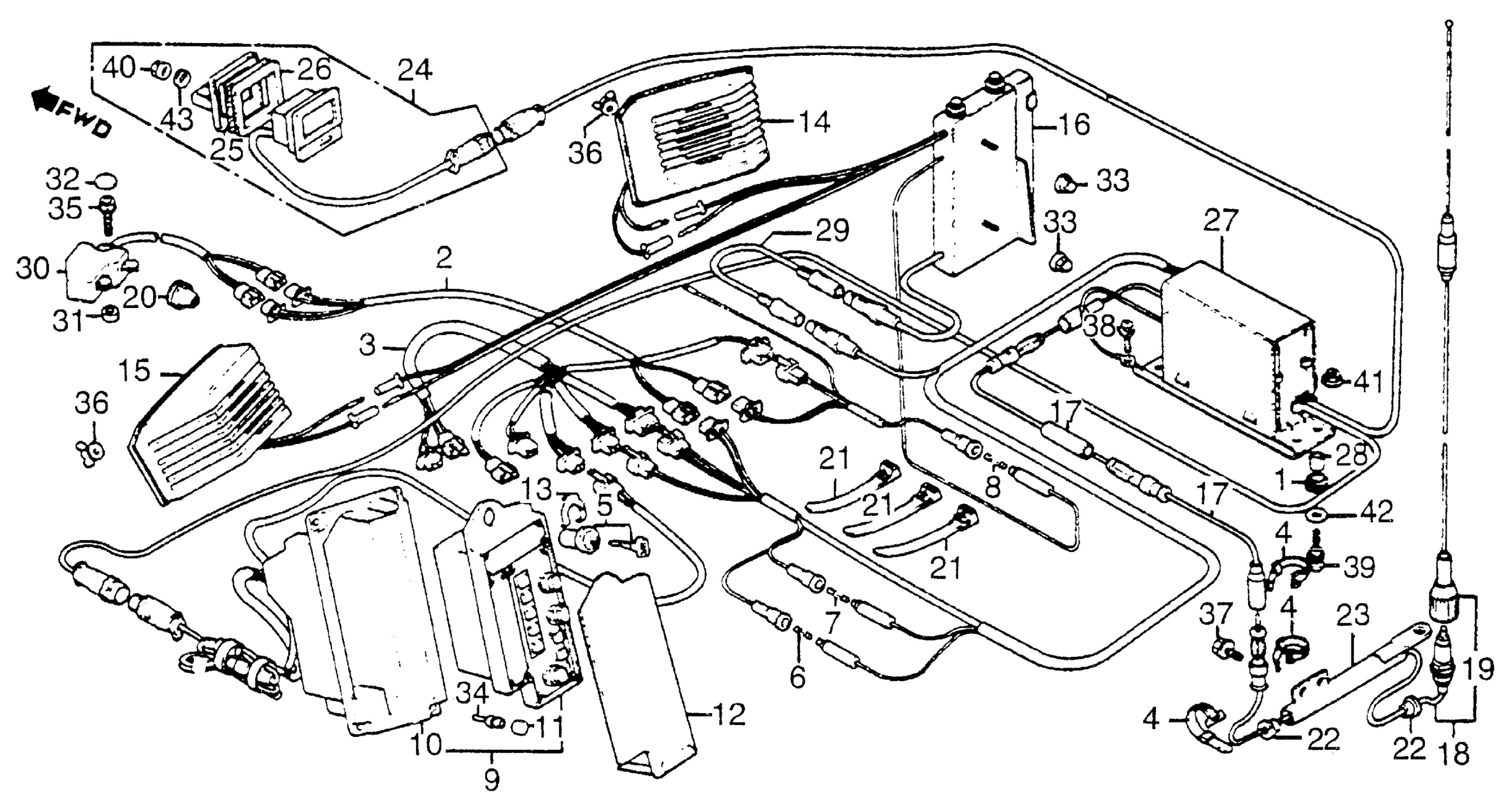

Honda GL1100AA (83) GOLD WING ASPENCADE, USA, VIN# 1HFSC022-DA300101 GL1100A RADIO Diagram

#

Description
Price

1

GROMMET, AIR BYPASS (NOT AVAILABLE)

18624-634-670

Unavailable

2

SUB-WIRE HARNESS, RADIO SWITCH

32113-MB9-871

Unavailable

3

WIRE HARNESS, RADIO (NOT AVAILABLE)

32114-MB9-871

Unavailable

4

BAND B1, WIRE

32161-404-000

$2.23

5

LOCK, FILLER LID

37220-439-007

$54.29

6

FUSE B (2A)

38211-463-890

$3.80

7

FUSE (0.5A)

38212-MB9-871

$2.10

8

FUSE (4A) (NOT AVAILABLE)

38213-MB9-871

Unavailable

9

CONTROLLER, RADIO This part replaces 39100-MB9-871.

39100-MB9-505

Unavailable

10

PLATE, CONTROLLER BASE

39101-MB9-871

Unavailable

11

CAP, SOCKET BOLT (5MM) (NOT AVAILABLE)

39103-MB9-871

Unavailable

12

LID, CONTROLLER

39105-MB9-871

Unavailable

13

SPRING, LOCK (NOT AVAILABLE)

39111-MB9-871

Unavailable

14

SPEAKER ASSY., R.

39130-MB9-871

Unavailable

15

SPEAKER ASSY., L. (NOT AVAILABLE)

39135-MB9-871

Unavailable

16

AMPLIFIER, POWER (NOT AVAILABLE)

39140-MB9-871

Unavailable

17

FEEDER, ANTENNA SUB (NOT AVAILABLE)

39148-MB9-871

Unavailable

18

ANTENNA ASSY. (NOT AVAILABLE) This part replaces 39150-MB9-871.

39150-MB9-872

Unavailable

18

ANTENNA ASSY. (NOT AVAILABLE)

39150-MB9-872

Unavailable

19

ELEMENT, ANTENNA (NOT AVAILABLE) This part replaces 39151-MB9-871.

39151-MB9-872

Unavailable

19

ELEMENT, ANTENNA (NOT AVAILABLE)

39151-MB9-872

Unavailable

20

GROMMET, AUDIO CORD (NOT AVAILABLE)

39156-MB9-871

Unavailable

21

TIE, REPEAT (NOT AVAILABLE)

39157-MB9-871

Unavailable

22

GROMMET, ANTENNA

39158-MB9-871

Unavailable

23

STAY, ANTENNA

39159-MB9-870

Unavailable

24

INDICATOR, RADIO (NOT AVAILABLE)

39160-MB9-871

Unavailable

25

BRACKET, RR. (NOT AVAILABLE)

39163-MB9-871

Unavailable

26

RUBBER, RADIO INDICATOR MOUNTING

39165-MB9-871

Unavailable

27

TUNER, RADIO (NOT AVAILABLE)

39170-MB9-871

Unavailable

27

TUNER, RADIO (NOT AVAILABLE) This part replaces 39172-MB9-871.

39170-MB9-871

Unavailable

28

COLLAR, MOUNTING (NOT AVAILABLE)

39175-MB9-871

Unavailable

29

WIRE, RADIO/POWER AMPLFIER JOINT (NOT AVAILABLE)

39186-MB9-871

Unavailable

30

SWITCH, RADIO SELECT (NOT AVAILABLE)

39200-MB9-871

Unavailable

31

COLLAR, RADIO SWITCH

39220-MB9-870

Unavailable

32

CAP, SOCKET BOLT (NOT AVAILABLE)

39230-MB9-870

Unavailable

33

NUT, FLANGE CAP (5MM)

90106-MB9-871

$2.86

34

BOLT, HEX. SOCKET (5X20) (NOT AVAILABLE)

90180-MB9-871

Unavailable

35

BOLT, HEX. SOCKET (10X25) (NOT AVAILABLE)

90181-MB9-870

Unavailable

36

WINGNUT (5MM) (NOT AVAILABLE)

90302-MB9-871

Unavailable

37

BOLT-WASHER (6X12)

93403-06012-00

$1.74

37

BOLT-WASHER (6X12) This part replaces 93493-06012-00.

93403-06012-00

$1.74

38

SCREW-WASHER (4X10)

93892-04010-08

$1.49

39

SCREW-WASHER (4X20)

93893-04020-08

$1.49

40

NUT, HEX. (4MM)

94001-04080-0S

$1.49

41

NUT, FLANGE (4MM)

94050-04080

$1.49

42

WASHER, PLAIN (4MM)

94103-04800

$1.49

43

WASHER, SPRING (4MM)

94111-04800

$1.49
