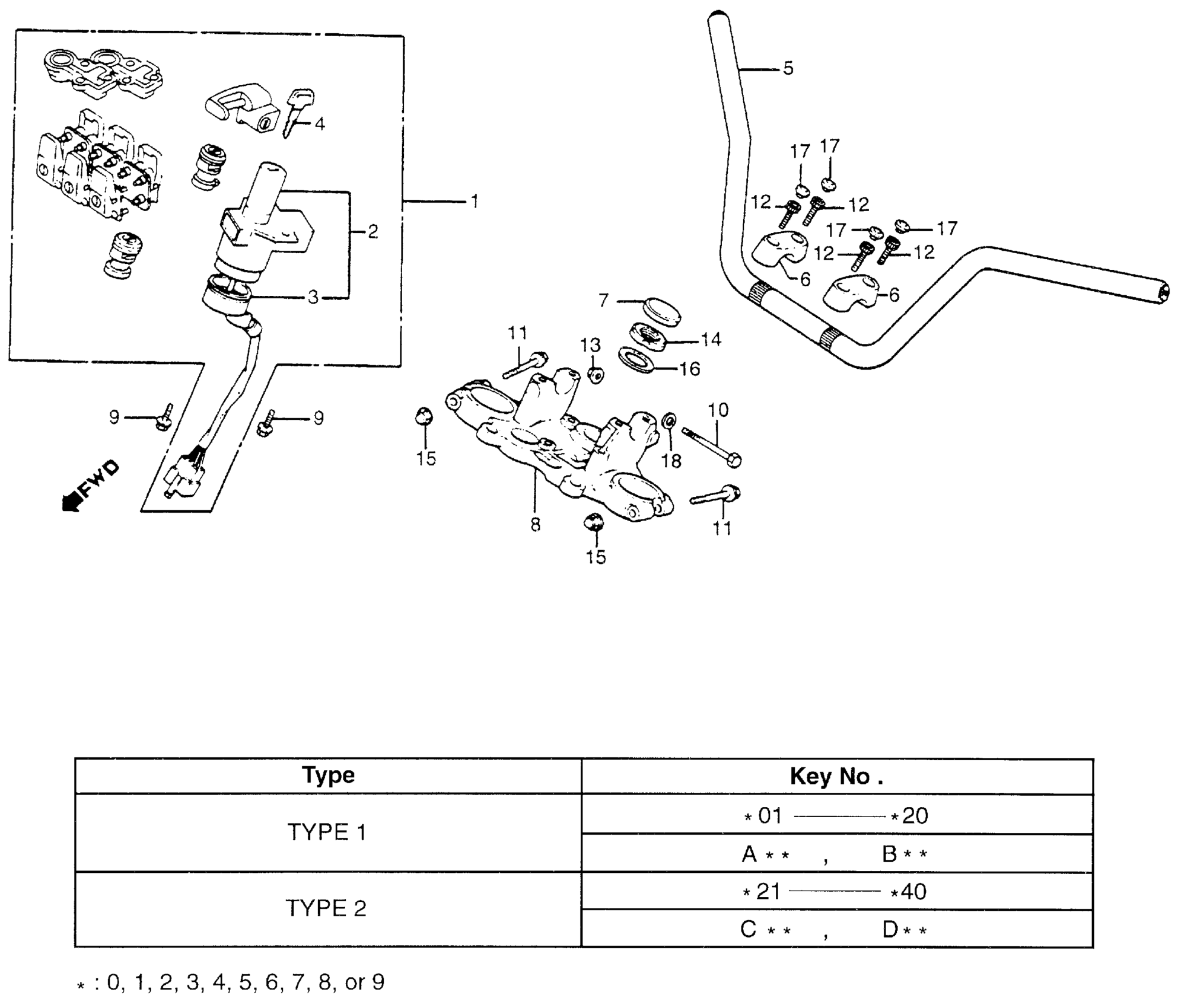

Honda GL1100AA (83) GOLD WING ASPENCADE, USA, VIN# 1HFSC022-DA300101 GL1100A HANDLEBAR + KEY SET Diagram

#

Description
Price

1

LOCK SET (NOT AVAILABLE)

35010-MB9-950

Unavailable

2

SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE)

35100-MB9-951

Unavailable

3

BASE, CONTACT (NOT AVAILABLE)

35101-MB9-951

Unavailable

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-KW3-771

$10.10

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MB9-811.

35121-KW3-771

$10.10

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MG9-810.

35121-KW3-771

$10.10

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$10.10

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MB9-811.

35122-KW3-771

$10.10

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MG9-810.

35122-KW3-771

$10.10

5

HANDLEBAR (NOT AVAILABLE)

53100-MB9-950

Unavailable

6

HOLDER, HANDLEBAR (UPPER)

53131-371-000

$32.20

7

CAP, STEERING STEM (NOT AVAILABLE)

53209-MB9-000

Unavailable

8

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-MB9-950

Unavailable

9

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

9

BOLT, FLANGE (8X19) This part replaces 90105-MA6-000.

90104-MJ1-000

$6.31

10

BOLT, HEX. (8X75)

90127-463-000

Unavailable

11

BOLT, FLANGE (7X54)

90155-329-790

Unavailable

12

BOLT, HEX. SOCKET (8X32)

90185-371-000

$6.28

13

NUT, FLANGE (8MM) (NOT AVAILABLE)

90202-425-870

Unavailable

14

NUT, STEERING STEM (NOT AVAILABLE)

90304-371-000

Unavailable

15

NUT, CAP. (7MM) This part replaces 90360-422-000.

90360-428-900

Unavailable

16

WASHER, STEERING STEM

90503-283-000

$4.37

17

CAP, SOCKET BOLT

91456-371-770

$3.47

18

WASHER, FLAT (8MM)

94102-08200

$1.49
