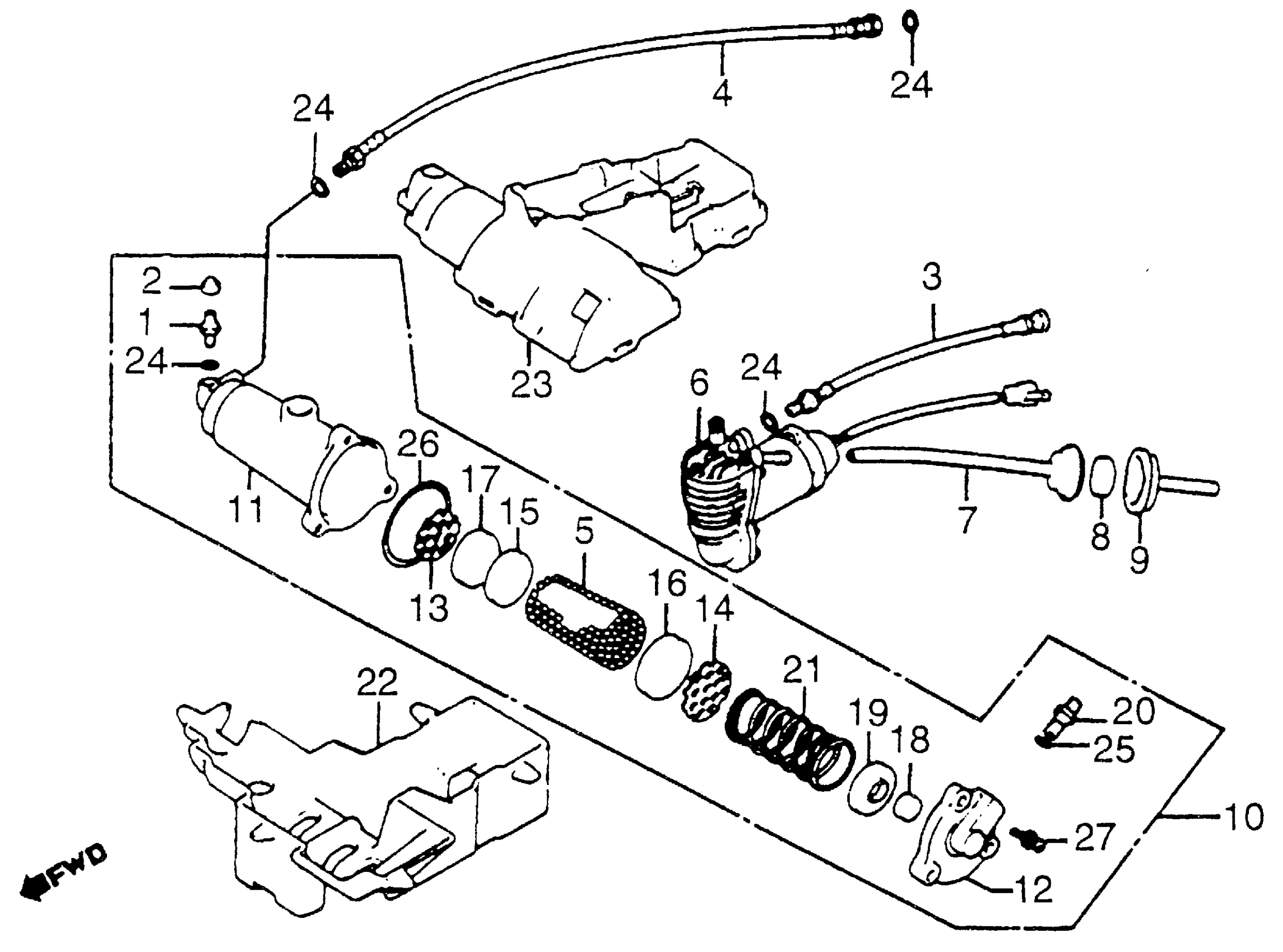

Honda GL1100AA (83) GOLD WING ASPENCADE, USA, VIN# 1HFSC022-DA300101 GL1100A AIR PUMP + DRIER Diagram

#

Description
Price

1

VALVE, AIR (SHOWA)

51456-469-013

$33.69

2

CAP ASSY., AIR VALVE

51457-469-000

Unavailable

3

HOSE C, AIR (NOT AVAILABLE)

52640-MB9-871

Unavailable

4

HOSE E, AIR

52660-MB9-952

Unavailable

5

DESICCANT (NOT AVAILABLE)

527A2-MB9-870

Unavailable

6

PUMP ASSY., AIR (NOT AVAILABLE)

52700-MB9-871

Unavailable

7

TUBE A, AIR (NOT AVAILABLE)

52705-MB9-870

Unavailable

8

ELEMENT, PUMP (NOT AVAILABLE)

52706-MB9-870

Unavailable

9

TUBE B, AIR

52707-MB9-870

Unavailable

10

DRIER ASSY.

52710-MB9-951

Unavailable

11

FRAME, DRIER

52711-MB9-951

Unavailable

12

COVER, DRIER

52712-MB9-951

Unavailable

13

RETAINER (A)

52713-MB9-870

Unavailable

14

RETAINER (B) (NOT AVAILABLE)

52714-MB9-870

Unavailable

15

FILTER (A) (NOT AVAILABLE)

52715-MB9-870

Unavailable

16

FILTER (B) (NOT AVAILABLE)

52716-MB9-870

Unavailable

17

FILTER (C) (NOT AVAILABLE)

52717-MB9-870

Unavailable

18

FILTER (D) (NOT AVAILABLE)

52718-MB9-870

Unavailable

19

RETAINER (C) (NOT AVAILABLE)

52719-MB9-870

Unavailable

20

CONNECTOR (A)

52721-MB9-951

Unavailable

21

SPRING, RETAINER SETTING (NOT AVAILABLE)

52722-MB9-870

Unavailable

22

CASE, PUMP (NOT AVAILABLE)

52756-MB9-870

Unavailable

23

COVER, PUMP (NOT AVAILABLE)

52758-MB9-870

Unavailable

24

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

24

O-RING (5.8X1.9)

91305-323-000

$2.92

24

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

25

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

25

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

26

O-RING (49.7X3.5) (NOT AVAILABLE)

91360-MB9-870

Unavailable

27

SCREW-WASHER (4X20)

93893-04020-08

$1.49
