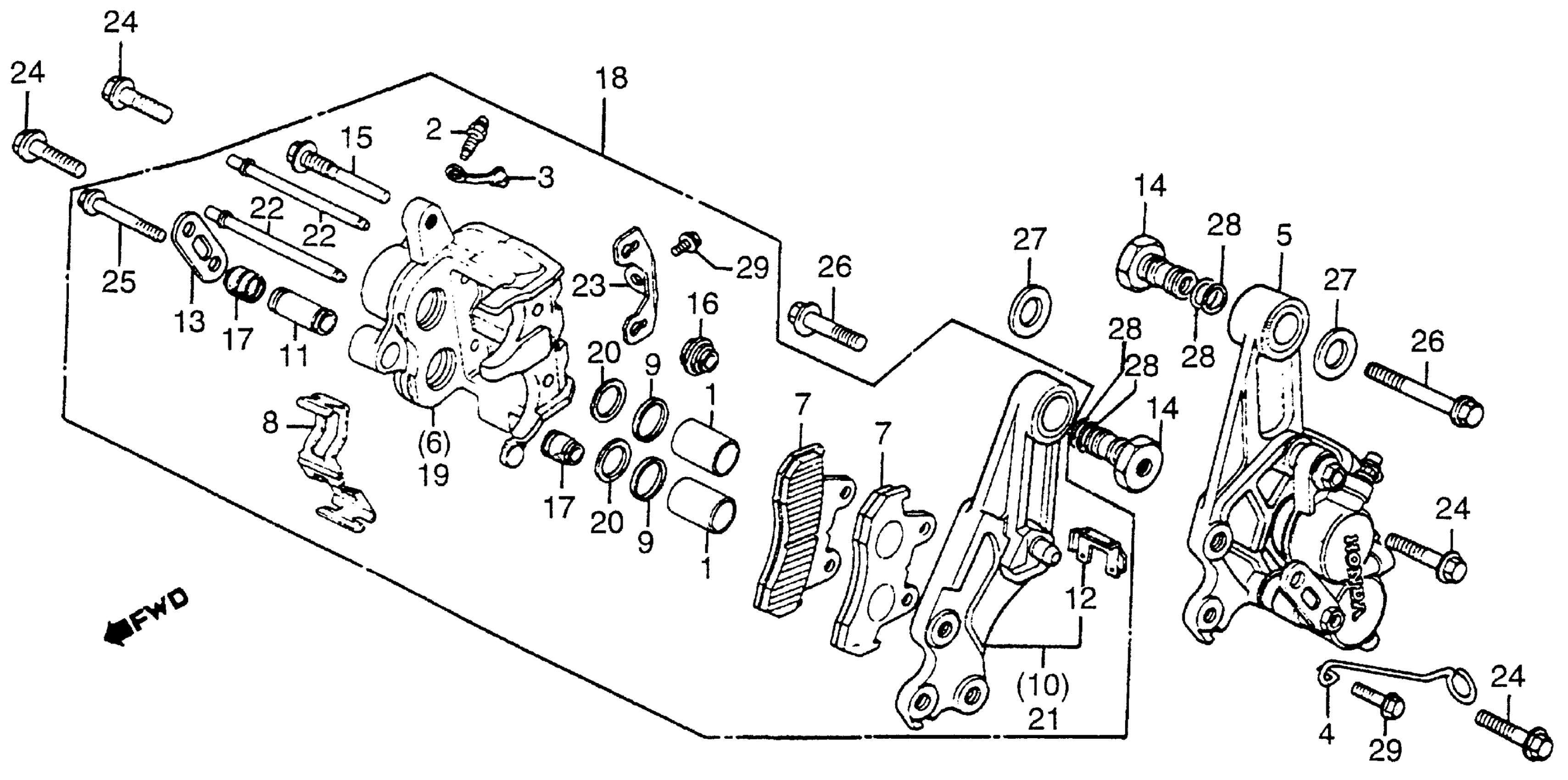

Honda GL1100AA (83) GOLD WING ASPENCADE, USA, VIN# 1HFSC022-DA300101 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET This part replaces 451A0-MC7-670.

06435-MC7-405

Unavailable

NI

DUST SEAL (RIGHT SIDE)

45109-GE2-006

$5.31

1

PISTON (32MM) (LEFT SIDE)

43107-MA7-006

$45.55

1

PISTON (25.4MM) (RIGHT SIDE)

45107-MB9-781

$39.51

2

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

3

CAP, BLEEDER

43353-461-771

$5.05

5

CALIPER ASSY., L. FR. (JB) (NISSHIN) (NOT AVAILABLE)

45100-MB9-951

Unavailable

5

CALIPER ASSY., L. FR. (ASK) (NISSHIN) (NOT AVAILABLE)

45100-MB9-952

Unavailable

6

CALIPER, L. (NOT AVAILABLE)

45101-MB9-951

Unavailable

7

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-KL8-004.

45105-KL8-014

Unavailable

7

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-KL8-014

Unavailable

7

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-004.

45105-KL8-014

Unavailable

7

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-007.

45105-KL8-014

Unavailable

7

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-014.

45105-KL8-014

Unavailable

8

SPRING, PAD

43108-MB9-781

Unavailable

9

DUST SEAL

45109-GE2-006

$5.31

9

DUST SEAL (LEFT SIDE/ FOR RIGHT SIDE SEE REF.NI PN. 43109-GE2-006)

45109-MA7-006

$5.31

10

BRACKET, L. (NOT AVAILABLE)

45110-MA3-641

Unavailable

11

SLEEVE

45111-MA3-006

$13.38

12

RETAINER, FR. BRACKET (NOT AVAILABLE)

45112-MB9-871

Unavailable

13

BRIDGE, CALIPER BRACKET (NOT AVAILABLE)

45113-MA3-770

Unavailable

14

SLEEVE, FR. CALIPER BRACKET (NOT AVAILABLE)

45114-MB7-610

Unavailable

15

BOLT, PIN

45131-MA3-006

$17.59

16

BOOT B

45133-MA3-006

$5.46

17

BOOT, PIN

45133-166-016

$3.85

18

CALIPER ASSY., R. FR. (JB) (NISSHIN) (NOT AVAILABLE)

45200-MB9-951

Unavailable

18

CALIPER ASSY., R. FR. (ASK) (NISSHIN) (NOT AVAILABLE)

45200-MB9-952

Unavailable

19

CALIPER, R. This part replaces 45201-MB9-951.

45201-MB9-953

Unavailable

20

SEAL, PISTON

45209-GE2-006

$6.91

21

BRACKET, R. (NOT AVAILABLE)

45210-MA3-641

Unavailable

22

PIN, HANGER

45215-MA2-006

Unavailable

23

PLATE

45217-MA3-006

$4.45

24

BOLT, FR. CALIPER (NOT AVAILABLE)

90123-MB9-870

Unavailable

25

BOLT, FLANGE (8X55)

90180-MA3-660

$4.72

26

BOLT, FLANGE (10X53)

90154-KT7-000

Unavailable

26

BOLT, FLANGE (10X53) (NOT AVAILABLE) This part replaces 90188-ME1-670.

90154-KT7-000

Unavailable

27

WASHER (10.3X25) (NOT AVAILABLE)

90502-ME1-670

Unavailable

28

O-RING (16.8X1.9) This part replaces 91302-MC7-611.

91347-PY3-000

$2.68

28

O-RING (16.8X1.9)

91347-PY3-000

$2.68

29

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

29

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

30

PISTON (25.4MM)

45107-MB9-781

$39.51

32

SEAL, PISTON

45209-MA7-006

$6.61
