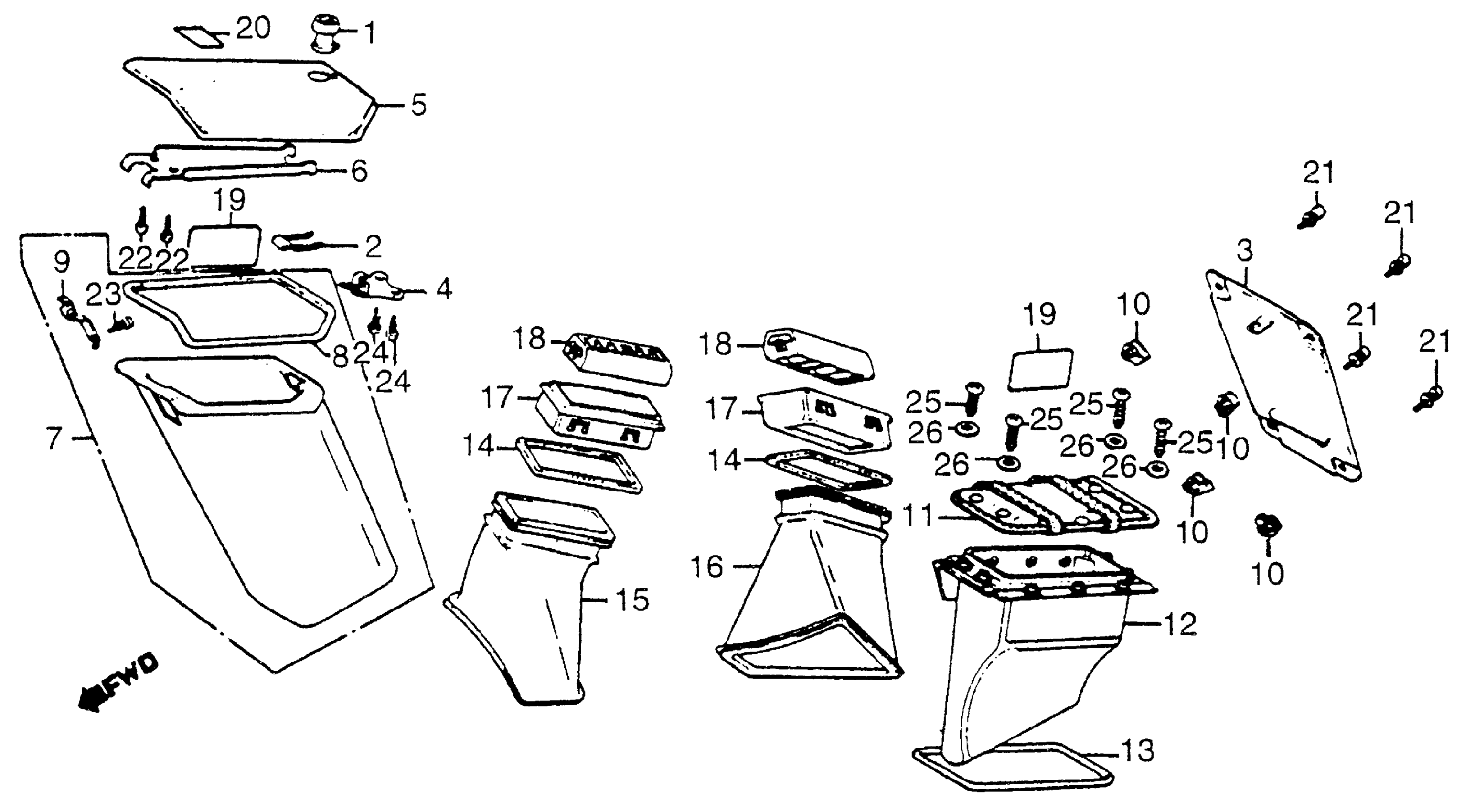

Honda GL1100AA (83) GOLD WING ASPENCADE, USA, VIN# 1HFSC022-DA300101 FAIRING POCKET + AIR DUCT Diagram

#

Description
Price

1

LOCK, FILLER LID

37220-439-007

$54.29

2

SPRING, LOCK KEY SETTING

37222-463-000

$8.05

4

PLATE, R. POCKET COVER MOUNT (NOT AVAILABLE)

64233-463-770

Unavailable

5

COVER, R. POCKET (NOT AVAILABLE)

64236-463-770

Unavailable

6

STAY, R. POCKET COVER (NOT AVAILABLE)

64237-463-770

Unavailable

7

POCKET, R. (NOT AVAILABLE)

64238-MB9-870

Unavailable

8

RUBBER, R. POCKET SEAL (NOT AVAILABLE)

64239-463-770

Unavailable

9

PLATE, POCKET MOUNT (NOT AVAILABLE)

64240-463-770

Unavailable

10

NUT, PLATE

64241-463-770

Unavailable

11

COVER, L. POCKET

64245-MB9-770

Unavailable

12

POCKET, L. (NOT AVAILABLE)

64246-463-771

Unavailable

13

RUBBER, L. POCKET SEAL

64249-463-770

Unavailable

14

GASKET, AIR DUCT (NOT AVAILABLE)

64274-463-770

Unavailable

15

TUBE, R. AIR DUCT (NOT AVAILABLE)

64275-463-770

Unavailable

16

TUBE, L. AIR DUCT (NOT AVAILABLE)

64276-463-770

Unavailable

17

DUCT, AIR

64277-463-770

Unavailable

18

OUTLET ASSY., FRESH AIR

64490-463-770

Unavailable

19

LABEL, FAIRING POCKET CAUTION (NOT AVAILABLE)

87523-MB9-870

Unavailable

20

LABEL, R. POCKET CAUTION (NOT AVAILABLE)

87524-463-770

Unavailable

22

SCREW, TAPPING (5X12)

93901-35210

$1.49

23

SCREW, TAPPING (4X8)

93903-34180

$1.49

24

SCREW, TAPPING (5X10)

93903-35180

$1.49

25

SCREW, TAPPING (5X20)

93903-35480

Unavailable

26

WASHER, PLAIN (5MM)

94101-05700

$1.49
