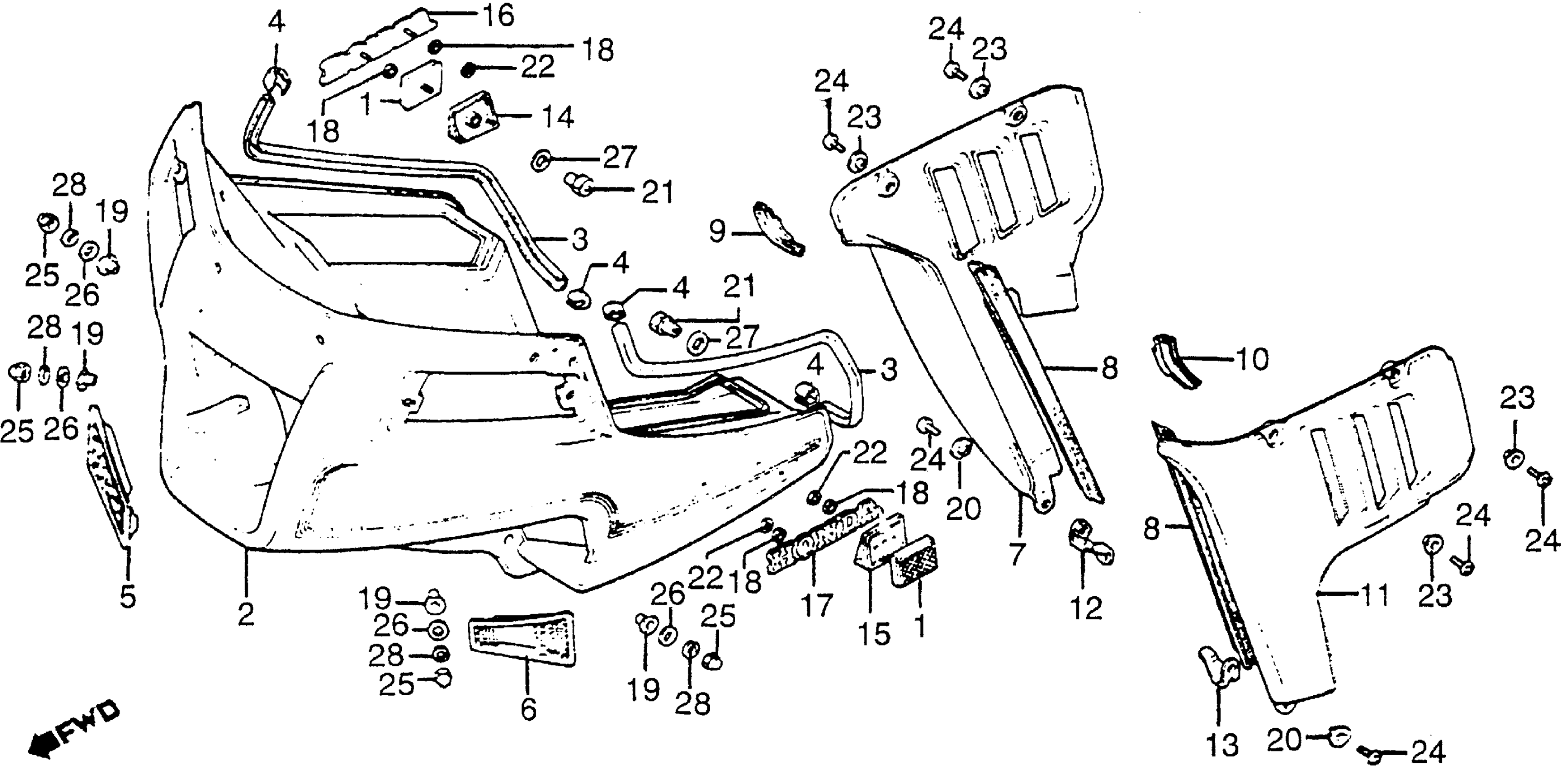

Honda GL1100AA (83) GOLD WING ASPENCADE, USA, VIN# 1HFSC022-DA300101 FAIRING Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33741-449-000

Unavailable

2

FAIRING *NH125MU* (NIMBUS GRAY METALLIC)

64200-MB9-950ZA

Unavailable

2

FAIRING *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

64200-MB9-950ZB

Unavailable

2

FAIRING *YR116MU* (SORREL BROWN METALLIC-U) (NOT AVAILABLE)

64200-MB9-950ZC

Unavailable

3

MOLDING, COWL TRIM

64205-463-770

Unavailable

4

CAP, MOLDING END

64207-MB9-770

Unavailable

5

COVER, R. AIR DUCT

64278-463-771

Unavailable

6

COVER, L. AIR DUCT (NOT AVAILABLE)

64279-463-771

Unavailable

7

COWL, R. (LOWER) *YR116MU* (SORREL BROWN METALLIC-U) (NOT AVAILABLE)

64280-463-770ZG

Unavailable

7

COWL, R. (LOWER) *NH125MU* (NIMBUS GRAY METALLIC) (NOT AVAILABLE)

64280-463-770ZJ

Unavailable

7

COWL, R. (LOWER) *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

64280-463-770ZE

Unavailable

8

SEAL, COWL (LOWER) (NOT AVAILABLE)

64281-463-770

Unavailable

9

RUBBER, R. COWL (LOWER) (NOT AVAILABLE)

64282-MB9-770

Unavailable

10

RUBBER, L. COWL (LOWER) (NOT AVAILABLE)

64283-MB9-770

Unavailable

11

COWL, L. (LOWER) *YR116MU* (SORREL BROWN METALLIC-U) (NOT AVAILABLE)

64290-463-770ZG

Unavailable

11

COWL, L. (LOWER) *NH125MU* (NIMBUS GRAY METALLIC) (NOT AVAILABLE)

64290-463-770ZJ

Unavailable

11

COWL, L. (LOWER) *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

64290-463-770ZE

Unavailable

12

STAY, R. COWL (LOWER) (NOT AVAILABLE)

64291-463-770

Unavailable

13

STAY, L. COWL (LOWER) (NOT AVAILABLE)

64391-463-770

Unavailable

14

BASE, R. FR. REFLECTOR (NOT AVAILABLE)

64520-463-770

Unavailable

15

BASE, L. FR. REFLECTOR (NOT AVAILABLE)

64530-463-770

Unavailable

16

EMBLEM, R. FAIRING SIDE

87108-MB9-770

Unavailable

17

EMBLEM, L. FAIRING SIDE

87109-MB9-770

$35.18

18

RUBBER, RR. EMBLEM SETTING

87411-538-910

$7.16

19

COLLAR, COWL SETTING (NOT AVAILABLE)

90120-463-770

Unavailable

20

COLLAR, COWL SETTING (LOWER)

90122-463-770

$4.40

21

NUT, SPECIAL (6MM) (NOT AVAILABLE)

90201-463-770

Unavailable

22

NUT, SPEED (3MM)

90313-567-000

$3.97

23

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

24

SCREW, PAN (6X16)

93500-06016-0G

$1.49

25

NUT, CAP (6MM) This part replaces 90301-KW8-900.

94021-06070-0S

$1.62

25

NUT, CAP (6MM) This part replaces 94021-06070.

94021-06070-0S

$1.62

25

NUT, CAP (6MM)

94021-06070-0S

$1.62

26

WASHER, PLAIN (6MM)

94101-06700

$1.49

27

WASHER, PLAIN (10MM)

94101-10000

$1.49

28

WASHER, SPRING (6MM)

94111-06700

$1.49
