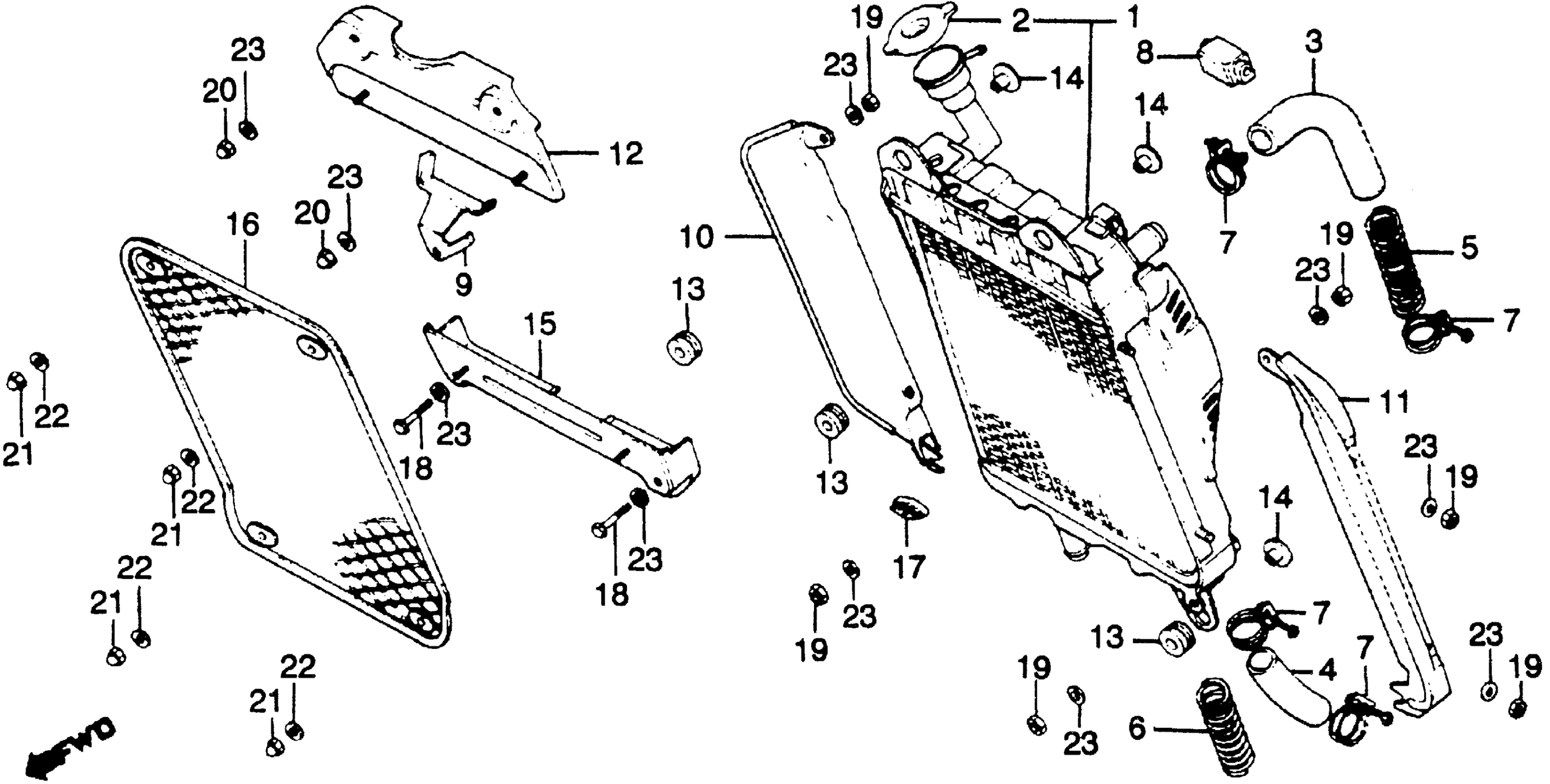

Honda GL1100AA (82) GOLD WING ASPENCADE, USA, VIN# 1HFSC022-CA209501 TO 1HFSC022-CA237741 RADIATOR Diagram

#

Description
Price

1

RADIATOR (NOT AVAILABLE)

19010-463-003

Unavailable

2

CAP, RADIATOR (DENSO) This part replaces 19045-PA0-014.

19045-692-003

$37.56

2

CAP, RADIATOR (DENSO) This part replaces 19045-449-770.

19045-692-003

$37.56

2

CAP, RADIATOR (DENSO) This part replaces 19045-634-003.

19045-692-003

$37.56

2

CAP, RADIATOR (DENSO)

19045-692-003

$37.56

3

HOSE, WATER (UPPER)

19501-431-000

Unavailable

4

HOSE, WATER (LOWER)

19502-431-000

Unavailable

5

GUARD A, WIRE (NOT AVAILABLE) This part replaces 19511-371-000.

19511-371-980

Unavailable

6

GUARD B, WIRE (NOT AVAILABLE) This part replaces 19512-371-000.

19512-371-980

Unavailable

7

BAND A, HOSE

19515-431-003

Unavailable

8

COVER, HOSE BAND

19519-431-000

Unavailable

12

COVER, RADIATOR (UPPER) (NOT AVAILABLE)

85200-463-000

Unavailable

13

RUBBER, RADIATOR SETTING (NOT AVAILABLE)

85201-371-000

Unavailable

14

COLLAR, RADIATOR SETTING (NOT AVAILABLE)

85202-371-000

Unavailable

15

COVER, RADIATOR (LOWER) (NOT AVAILABLE)

85300-371-000

Unavailable

16

GRILLE, RADIATOR (NOT AVAILABLE)

85400-371-000

Unavailable

17

GROMMET, RADIATOR GRILLE (NOT AVAILABLE)

85401-371-000

Unavailable

18

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

18

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

20

NUT, CAP (6MM) This part replaces 90301-KW8-900.

94021-06070-0S

$1.62

20

NUT, CAP (6MM) This part replaces 94021-06070.

94021-06070-0S

$1.62

20

NUT, CAP (6MM)

94021-06070-0S

$1.62

21

NUT, CAP (6MM) This part replaces 94021-06220.

94021-06220-0S

$1.61

21

NUT, CAP (6MM)

94021-06220-0S

$1.61

22

WASHER, PLAIN (6MM)

94101-06200

$1.49

23

WASHER, PLAIN (6MM)

94101-06700

$1.49
