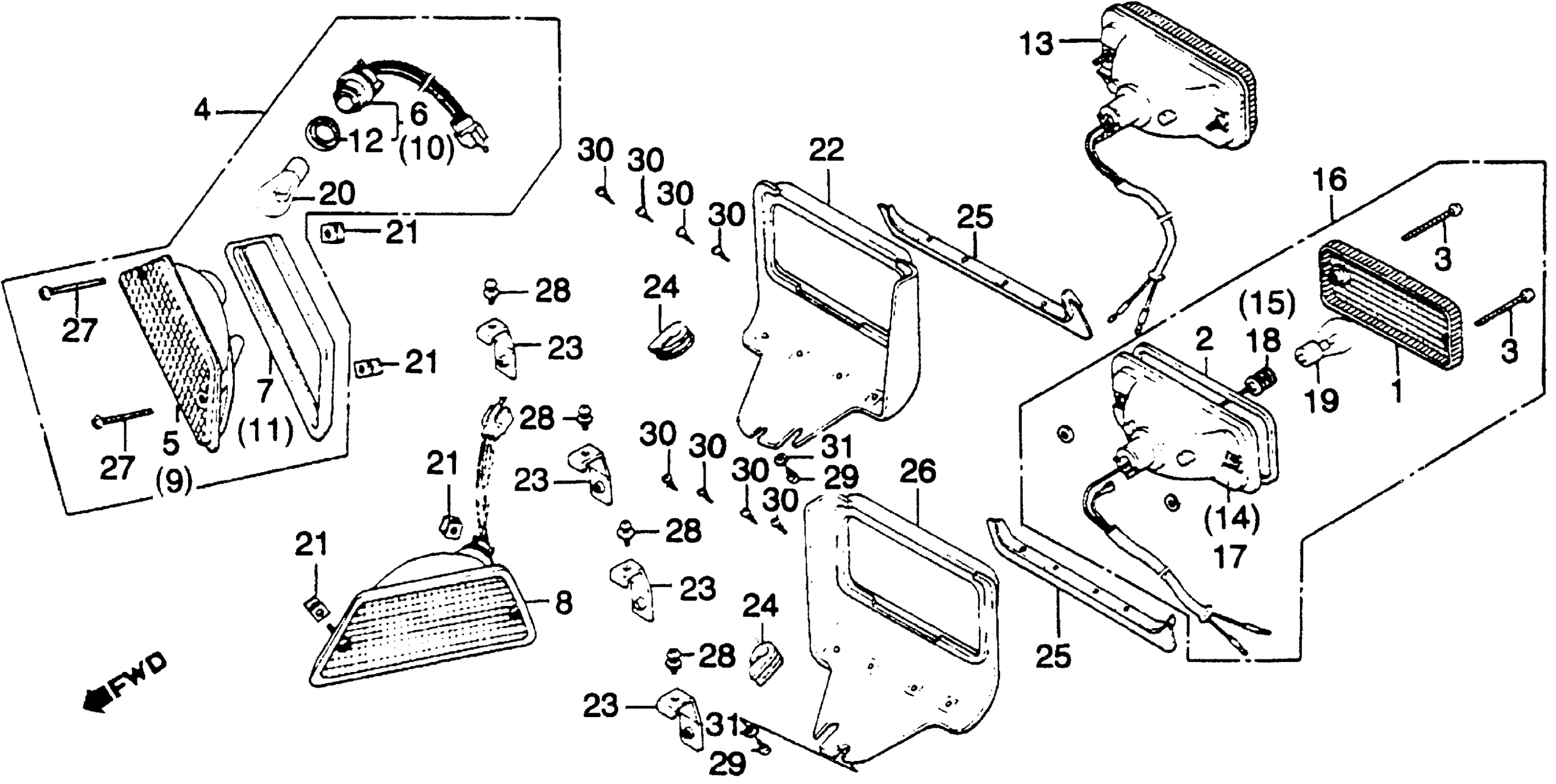

Honda GL1100AA (82) GOLD WING ASPENCADE, USA, VIN# 1HFSC022-CA209501 TO 1HFSC022-CA237741 GL110I/ATURN SIGNAL Diagram

#

Description
Price

1

LENS, FR. COMBINATION LIGHT This part replaces 33302-692-671.

33302-692-672

Unavailable

1

LENS, FR. COMBINATION LIGHT

33302-692-672

Unavailable

2

GASKET, FR. COMBINATION LIGHT (NOT AVAILABLE)

33303-692-671

Unavailable

3

SCREW, PAN (4X35) (NOT AVAILABLE)

33304-692-003

Unavailable

4

TURN SIGNAL ASSY., R. FR. (12V 23/8W)

33400-463-773

$45.47

5

CASE, R. TURN SIGNAL

33401-463-773

Unavailable

6

SOCKET, R. TURN SIGNAL (NOT AVAILABLE)

33405-463-771

Unavailable

7

GASKET, R. TURN SIGNAL SEAL

33406-463-771

Unavailable

8

TURN SIGNAL ASSY., L. FR. (12V 23/8W)

33450-463-773

Unavailable

9

CASE, L. TURN SIGNAL

33451-463-773

Unavailable

10

SOCKET, L. TURN SIGNAL

33455-463-771

Unavailable

11

GASKET, L. TURN SIGNAL SEAL

33456-463-771

Unavailable

12

GASKET, SEAL

33518-SA2-003

$4.38

13

TURN SIGNAL, R. RR. (12V 23W) (NOT AVAILABLE)

33600-463-771

Unavailable

14

BASE, R. TURN SIGNAL (NOT AVAILABLE)

33601-463-771

Unavailable

15

WIRE, R. TURN SIGNAL (NOT AVAILABLE)

33610-463-771

Unavailable

16

TURN SIGNAL ASSY., L. RR. (12V 23W) (NOT AVAILABLE)

33650-463-771

Unavailable

17

BASE, L. TURN SIGNAL (NOT AVAILABLE)

33651-463-771

Unavailable

18

WIRE, L. TURN SIGNAL (NOT AVAILABLE)

33660-463-771

Unavailable

19

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

20

BULB, TURN SIGNAL (12V23/8W) (1034HD) (STANLEY)

34905-425-671

$6.67

21

NUT, INSTRUMENT PANEL

66872-671-000

Unavailable

22

BASE, R. TURN SIGNAL *NH118MU* (STERLING SILVER METALLIC)

81215-463-771ZG

Unavailable

22

BASE, R. TURN SIGNAL *YR116MU* (SORREL BROWN METALLIC-U) (NOT AVAILABLE)

81215-463-771ZH

Unavailable

23

BRACKET, TURN SIGNAL (NOT AVAILABLE)

81223-463-770

Unavailable

24

GROMMET, WIRE (NOT AVAILABLE)

81224-463-770

Unavailable

25

SPLASH GUARD, RR. TURN SIGNAL (NOT AVAILABLE)

81240-463-770

Unavailable

26

BASE, L. TURN SIGNAL *NH118MU* (STERLING SILVER METALLIC) (NOT AVAILABLE)

81415-463-771ZG

Unavailable

26

BASE, L. TURN SIGNAL *YR116MU* (SORREL BROWN METALLIC-U)

81415-463-771ZH

Unavailable

27

SCREW, PAN (4X25) This part replaces 90192-377-671.

93500-04025-0A

$1.93

27

SCREW, PAN (4X25)

93500-04025-0A

$1.93

28

SCREW-WASHER (5X12)

93891-05012-08

$1.49

28

SCREW-WASHER (5X12) This part replaces 93891-05012-18.

93891-05012-08

$1.49

29

SCREW, TAPPING (5X12)

93901-35210

$1.49

30

SCREW, TAPPING (3X10)

93903-22220

$1.49

31

WASHER, PLAIN (5MM)

94101-05000

$1.49
