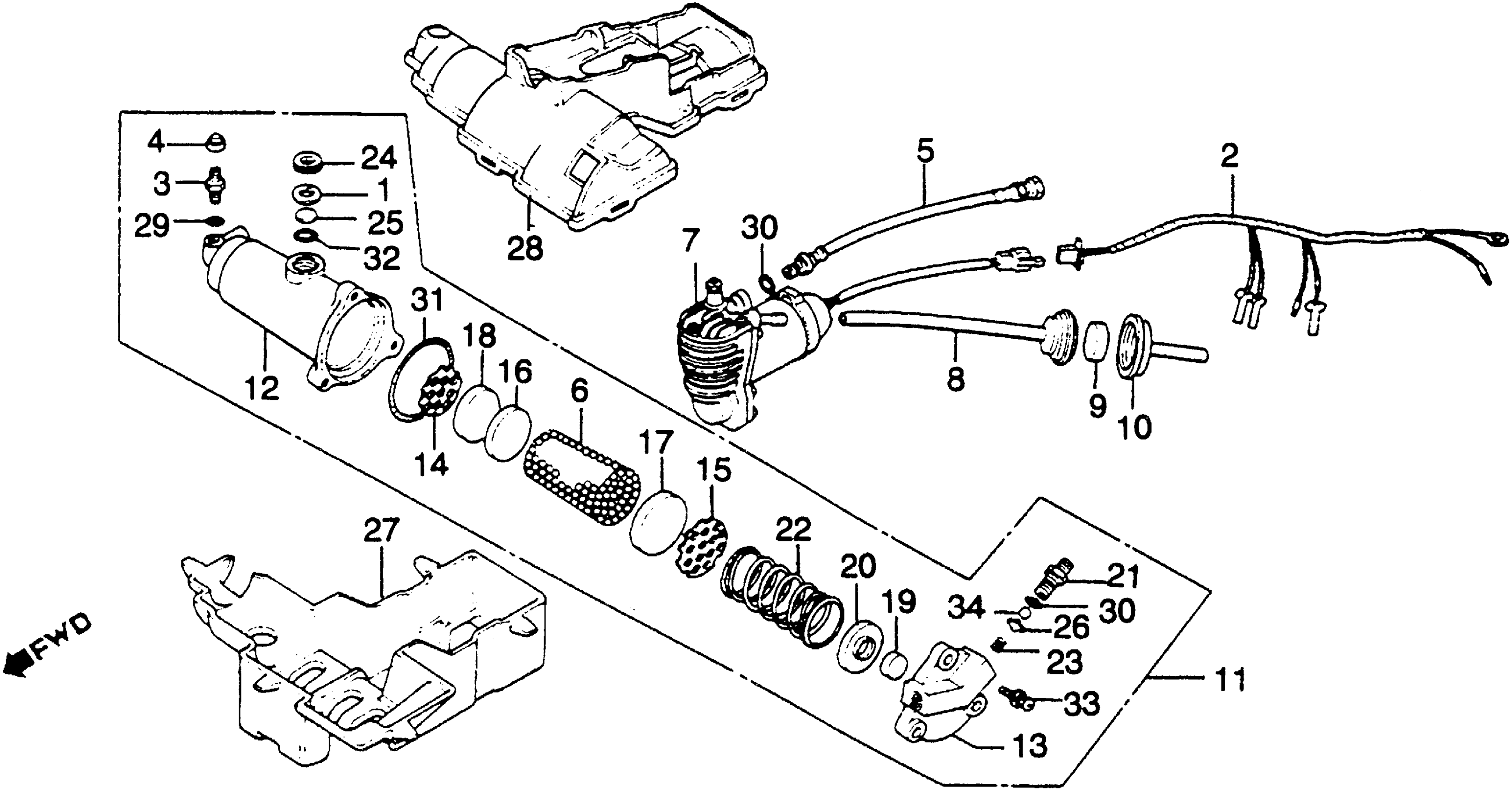

Honda GL1100AA (82) GOLD WING ASPENCADE, USA, VIN# 1HFSC022-CA209501 TO 1HFSC022-CA237741 GL1100A AIR PUMP + DRIER Diagram

#

Description
Price

1

WASHER, CHOKE CABLE (NOT AVAILABLE)

17958-679-000

Unavailable

2

SUB-WIRE HARNESS, PUMP (NOT AVAILABLE)

32109-MB9-870

Unavailable

3

VALVE, AIR (SHOWA)

51456-469-013

$33.69

4

CAP ASSY., AIR VALVE

51457-469-000

Unavailable

5

HOSE C, AIR (NOT AVAILABLE)

52640-MB9-871

Unavailable

6

DESICCANT

527A2-MB9-870

Unavailable

7

PUMP ASSY., AIR (NOT AVAILABLE)

52700-MB9-871

Unavailable

8

TUBE A, AIR (NOT AVAILABLE)

52705-MB9-870

Unavailable

9

ELEMENT, PUMP

52706-MB9-870

Unavailable

10

TUBE B, AIR

52707-MB9-870

Unavailable

11

DRIER ASSY. (NOT AVAILABLE) This part replaces 52710-MB9-870.

52710-MB9-871

Unavailable

11

DRIER ASSY. (NOT AVAILABLE)

52710-MB9-871

Unavailable

12

FRAME, DRIER

52711-MB9-870

Unavailable

13

COVER, DRIER

52712-MB9-870

Unavailable

14

RETAINER (A)

52713-MB9-870

Unavailable

15

RETAINER (B) (NOT AVAILABLE)

52714-MB9-870

Unavailable

16

FILTER (A) (NOT AVAILABLE)

52715-MB9-870

Unavailable

17

FILTER (B) (NOT AVAILABLE)

52716-MB9-870

Unavailable

18

FILTER (C)

52717-MB9-870

Unavailable

19

FILTER (D)

52718-MB9-870

Unavailable

20

RETAINER (C) (NOT AVAILABLE)

52719-MB9-870

Unavailable

21

CONNECTOR This part replaces 52721-MB9-870.

52721-MB9-871

Unavailable

21

CONNECTOR

52721-MB9-871

Unavailable

22

SPRING, RETAINER SETTING

52722-MB9-870

Unavailable

23

SPRING, VALVE (NOT AVAILABLE)

52723-MB9-870

Unavailable

24

NUT, CAP (NOT AVAILABLE) This part replaces 52724-MB9-870.

52724-MB9-871

Unavailable

24

NUT, CAP (NOT AVAILABLE)

52724-MB9-871

Unavailable

25

GLASS, PEEK HOLE (NOT AVAILABLE)

52725-MB9-870

Unavailable

26

WASHER, CAP This part replaces 52726-MB9-870.

52726-MB9-871

Unavailable

26

WASHER, CAP

52726-MB9-871

Unavailable

27

CASE, PUMP (NOT AVAILABLE)

52756-MB9-870

Unavailable

28

COVER, PUMP (NOT AVAILABLE)

52758-MB9-870

Unavailable

29

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

29

O-RING (5.8X1.9)

91305-323-000

$2.92

29

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

30

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

30

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

31

O-RING (49.7X3.5) (NOT AVAILABLE)

91360-MB9-870

Unavailable

32

O-RING (13.8X2.4) This part replaces 91304-PL9-005.

91304-P69-000

$5.85

32

O-RING (13.8X2.4)

91304-P69-000

$5.85

32

O-RING (13.8X2.4) This part replaces 91361-MB9-870.

91304-P69-000

$5.85

33

SCREW-WASHER (4X20)

93893-04020-08

$1.49

34

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
