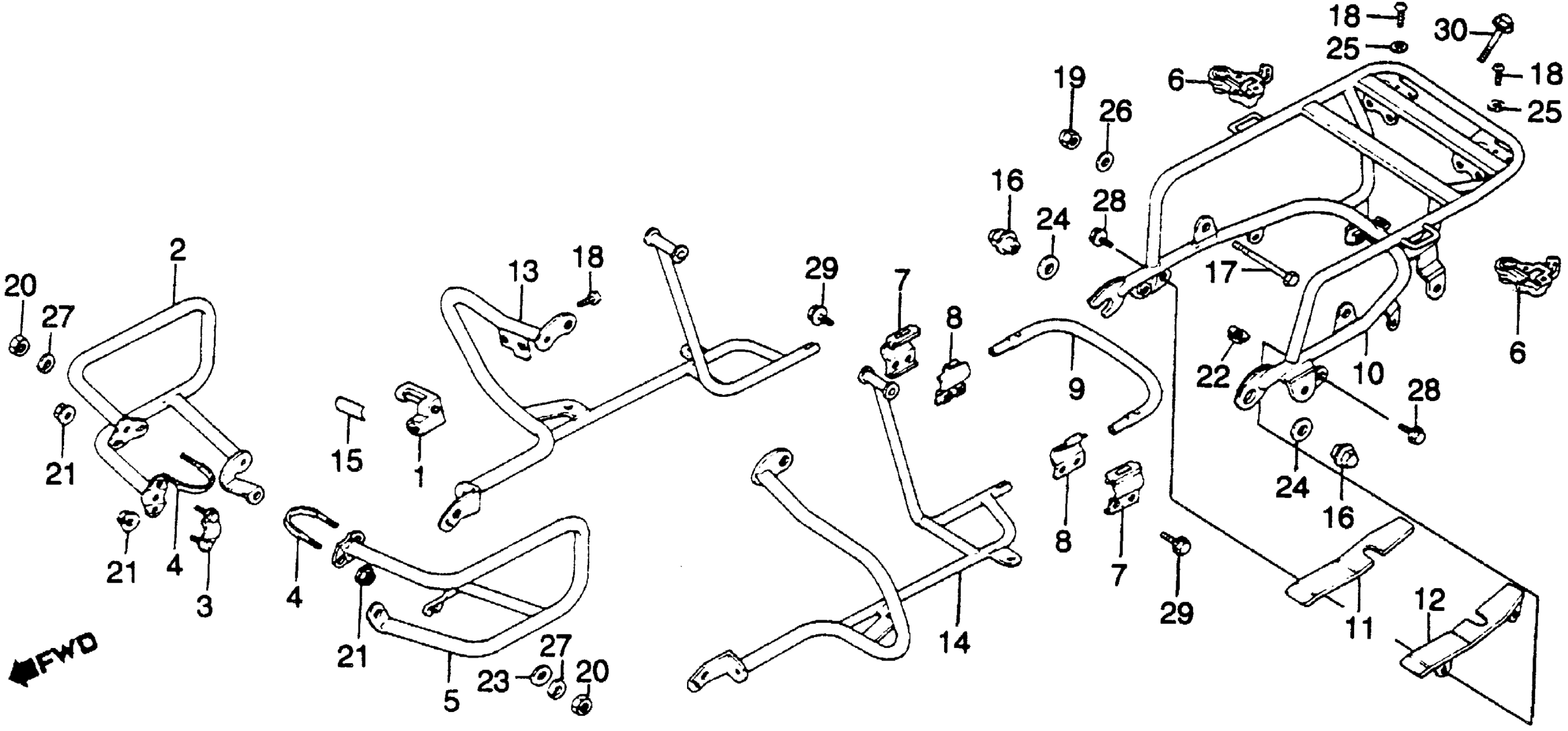

Honda GL1100AA (82) GOLD WING ASPENCADE, USA, VIN# 1HFSC022-CA209501 TO 1HFSC022-CA237741 ENGINE GUARD + SADDLEBAG STAY Diagram

#

Description
Price

1

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

1

HOLDER ASSY., HELMET (HONDALOCK) This part replaces 50710-371-007.

50710-086-007

$70.34

2

GUARD, R. ENGINE (NOT AVAILABLE)

62501-MB9-770

Unavailable

3

BAND, ENGINE GUARD

62502-463-770

Unavailable

4

BOLT, ENGINE GUARD SETTING

62503-463-770

Unavailable

5

GUARD, L. ENGINE (NOT AVAILABLE)

62601-MB9-770

Unavailable

6

LOCK ASSY., SEAT (HONDALOCK)

77230-399-007

Unavailable

7

BAND A, RR. BUMPER

81235-463-770

Unavailable

8

BAND B, RR. BUMPER

81236-463-770

Unavailable

9

PIPE, RR. JOINT (NOT AVAILABLE)

81237-463-770

$42.52

10

STAY, RR. TRUNK

84101-MB9-870

Unavailable

11

COVER, R. FENDER SIDE (NOT AVAILABLE)

84110-463-770

Unavailable

12

COVER, L. FENDER SIDE (NOT AVAILABLE)

84120-463-770

Unavailable

13

STAY, R. SADDLEBAG (NOT AVAILABLE)

84250-MB9-770

Unavailable

14

STAY, L. SADDLEBAG (NOT AVAILABLE)

84350-463-770

Unavailable

15

LABEL, HELMET HOLDER

87511-323-670

$2.72

16

NUT, RR. CUSHION SETTING

90310-463-770

Unavailable

17

BOLT, HEX. (8X65) This part replaces 92000-08065-0A.

92101-08065-0A

$2.25

17

BOLT, HEX. (8X65)

92101-08065-0A

$2.25

18

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

18

SCREW, PAN (6X12)

93500-06012-0A

$1.49

18

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

19

NUT, CAP (8MM)

94021-08000-0S

$1.55

20

NUT, HEX. (12MM)

94030-12200

$1.66

21

NUT, FLANGE (6MM)

94050-06000

$1.49

22

NUT, FLANGE (8MM)

94050-08000

$1.49

23

WASHER, PLAIN (12MM)

94101-12000

$1.49

24

WASHER, FLAT (14MM) (NOT AVAILABLE)

94102-14200

Unavailable

25

WASHER, SPRING (6MM)

94111-06000

$1.49

26

WASHER, SPRING (8MM)

94111-08000

$1.49

27

WASHER, SPRING (12MM)

94111-12000

$1.49

28

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

28

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

29

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

29

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

30

BOLT, HEX. (8X40) This part replaces 92000-08040-0B.

92101-08040-0B

Unavailable

30

BOLT, HEX. (8X40)

92101-08040-0B

Unavailable
