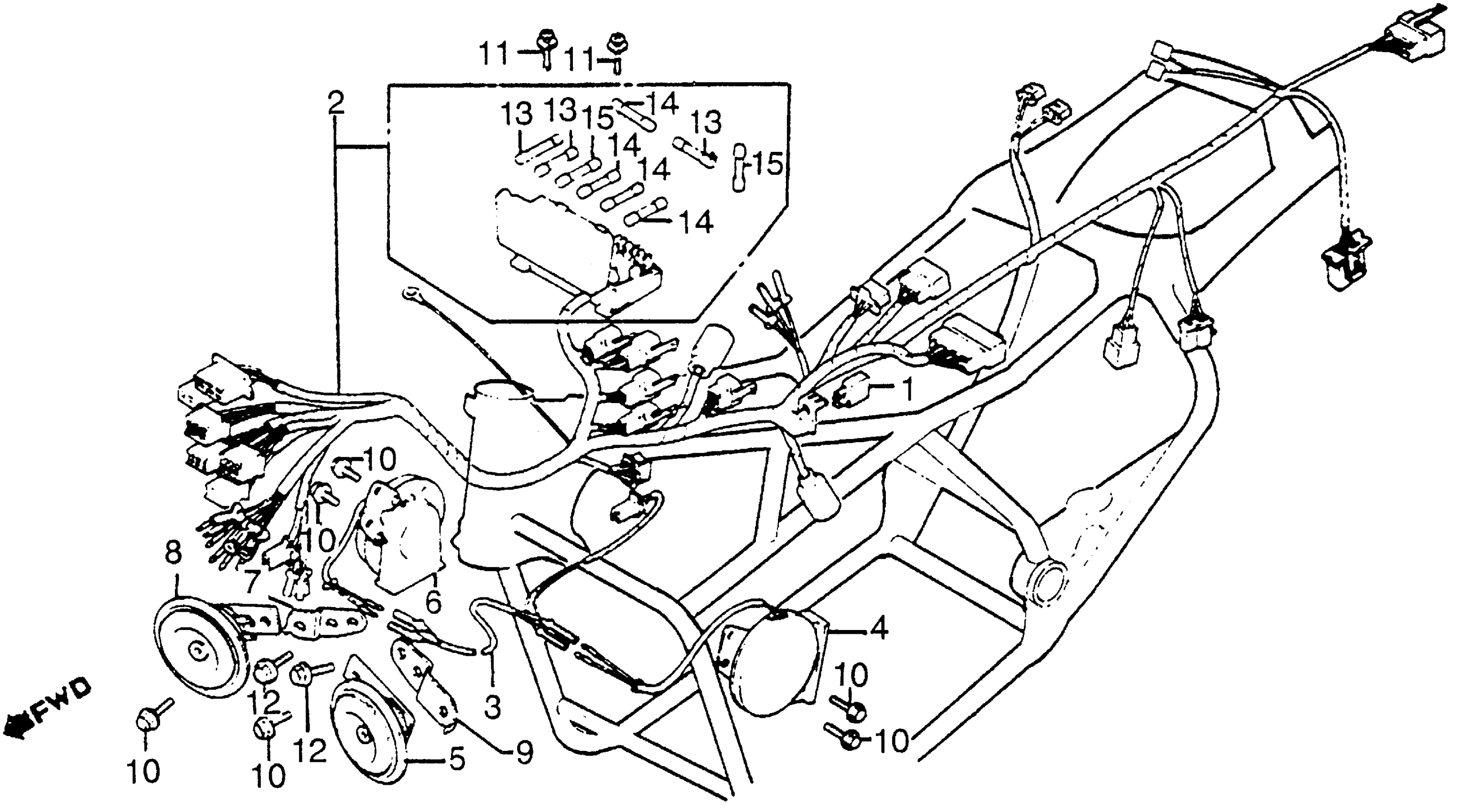

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 WIRE HARNESS + HORN Diagram

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

WIRE HARNESS (NOT AVAILABLE)

32100-MB9-780

Unavailable

SUB-WIRE HARNESS C (NOT AVAILABLE)

32103-463-000

Unavailable

HORN ASSY. (MITSUBA)

38100-300-023

Unavailable

HORN ASSY. (HIGH) (NOT AVAILABLE)

38110-431-004

Unavailable

BOLT, FLANGE (6X12) This part replaces 91582-371-980.

95701-06012-08

$1.67

BOLT, FLANGE (6X12) This part replaces 95700-06012-0B.

95701-06012-08

$1.67

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

BOLT, FLANGE (6X12) This part replaces 95700-06012-18.

95701-06012-08

$1.67

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X12) This part replaces 95701-06012-18.

95701-06012-08

$1.67

SCREW-WASHER (5X10)

93893-05010-00

Unavailable

FUSE B (5A)

98200-20500

$1.49

FUSE B (10A)

98200-21000

$1.49

FUSE B (15A)

98200-21500

$1.49
