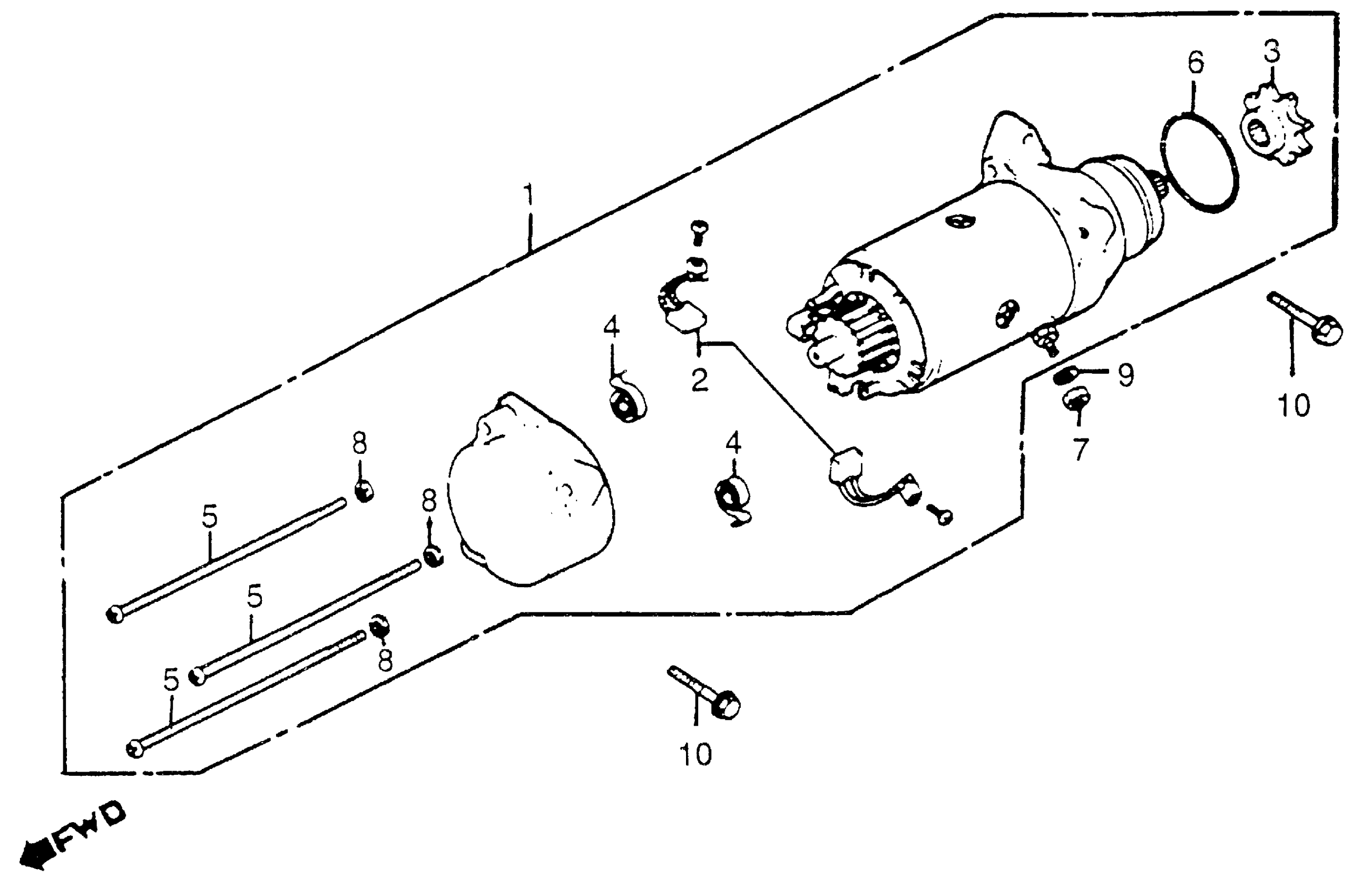

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 STARTER MOTOR Diagram

#

Description

Price

1

STARTER MOTOR This part replaces 31200-463-008.

31200-463-405

Unavailable

1

STARTER MOTOR

31200-463-405

Unavailable

2

BRUSH SET, CARBON

31201-292-158

$23.48

3

SPROCKET (MITSUBA) (NOT AVAILABLE)

31202-371-005

Unavailable

4

SPRING, CARBON BRUSH

31204-292-158

$3.57

5

BOLT, SETTING (NOT AVAILABLE)

31205-371-005

Unavailable

6

O-RING

91309-MA6-000

$3.69

6

O-RING This part replaces 91309-283-005.

91309-MA6-000

$3.69

7

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.19

7

NUT, HEX. (6MM)

94002-06000-0S

$1.19

8

WASHER, SPRING (5MM)

94111-05000

$1.03

9

WASHER, SPRING (6MM)

94111-06000

$0.86

10

BOLT, FLANGE (6X28) This part replaces 96000-06028-02.

96001-06028-02

$1.78

10

BOLT, FLANGE (6X28)

96001-06028-02

$1.78
