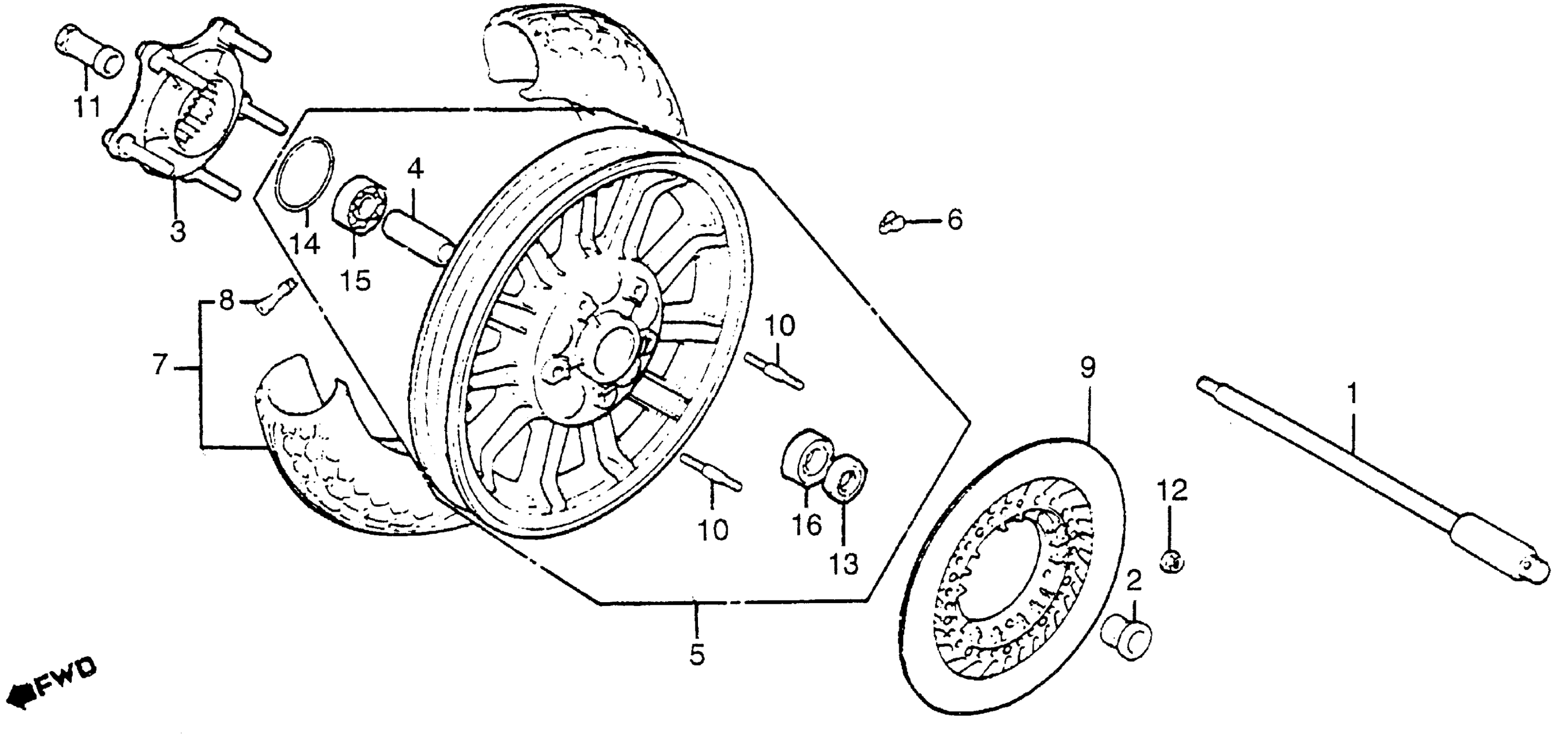

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 REAR WHEEL Diagram

#

Description
Price

1

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-MB9-780

Unavailable

2

COLLAR, RR. BRAKE PANEL SIDE

42313-422-000

$38.23

3

FLANGE, FINAL DRIVEN This part replaces 42615-MB9-000.

42615-463-305

Unavailable

3

FLANGE, FINAL DRIVEN This part replaces 42615-463-000.

42615-463-305

Unavailable

3

FLANGE, FINAL DRIVEN

42615-463-305

Unavailable

4

COLLAR A, RR. DISTANCE

42620-MB4-405

Unavailable

4

COLLAR A, RR. DISTANCE This part replaces 42620-431-670.

42620-MB4-405

Unavailable

5

WHEEL, RR. (NOT AVAILABLE)

42650-MB9-780

Unavailable

6

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

6

WEIGHT, BALANCE (30G) (NOT AVAILABLE)

42706-410-000

$11.69

7

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MB4-672.

42710-MB4-773

Unavailable

7

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP) (NOT AVAILABLE)

42710-MB4-773

Unavailable

7

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MB9-673.

42710-MB4-773

Unavailable

7

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP) (NOT AVAILABLE)

42710-MB9-784

Unavailable

7

TIRE ASSY., RR. (140/90-16) (BS) (NOT AVAILABLE)

42710-ME1-671

Unavailable

7

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-ME1-672.

42710-MB4-773

Unavailable

8

VALVE, RIM (BS)

42753-425-003

$11.00

8

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

9

DISK, RR. BRAKE (NOT AVAILABLE)

43120-MB9-000

Unavailable

10

BOLT, STUD (8X45)

90125-329-010

$3.26

11

NUT, FLANGE (18MM) This part replaces 90305-MA2-003.

90305-MB4-003

$12.52

11

NUT, U (18MM)

90305-MB4-003

$12.52

12

NUT, HEX. (8MM)

90309-357-000

$3.40

13

DUST SEAL (30X52X7)

91253-442-003

$13.96

13

DUST SEAL (30X52X7) This part replaces 91253-442-004.

91253-442-003

$13.96

14

O-RING (63X3.0)

91359-371-003

$5.69

15

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

16

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03
