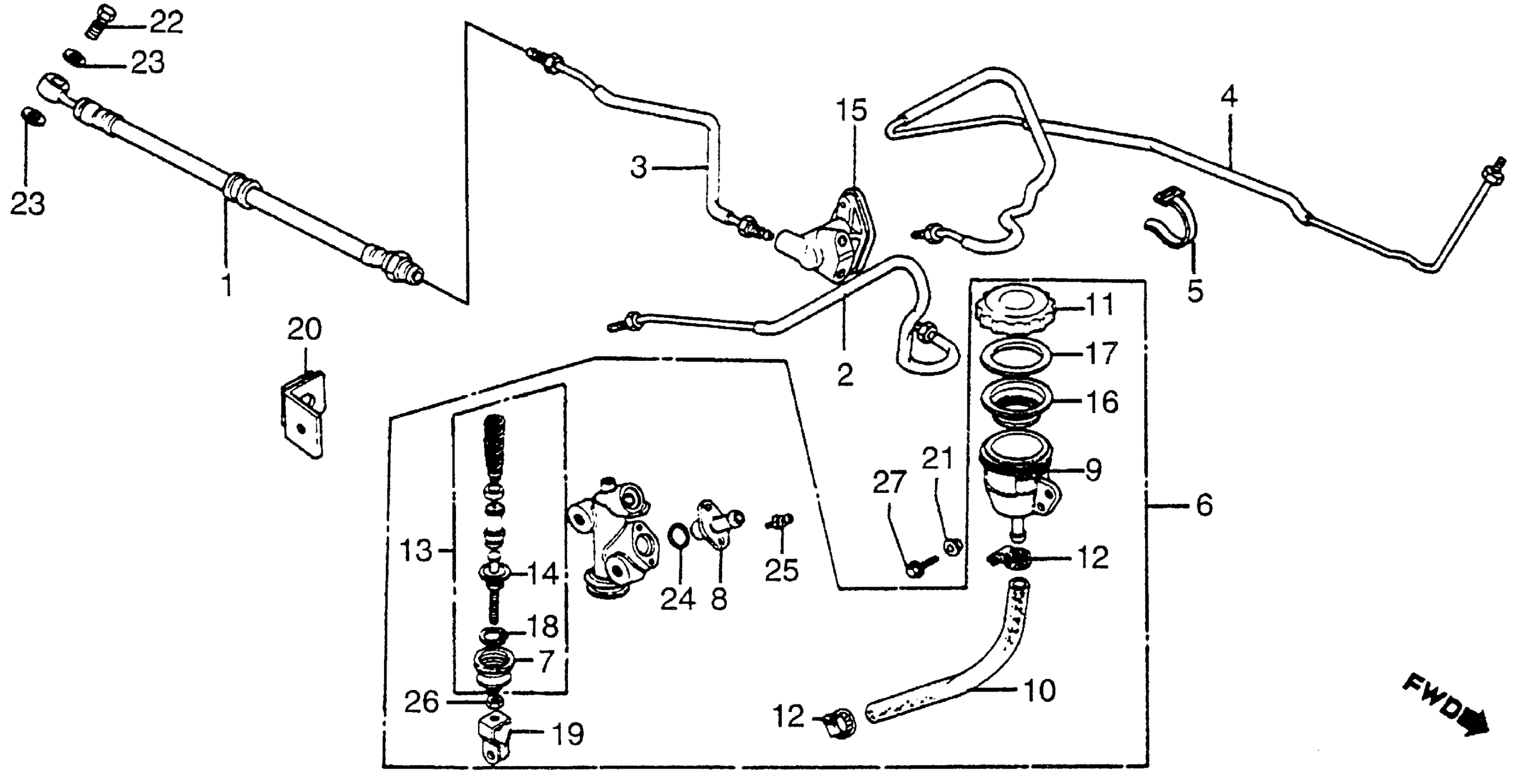

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 REAR BRAKE MASTER CYL Diagram

#

Description
Price

1

HOSE, RR. BRAKE (NOT AVAILABLE) This part replaces 43310-MB9-781.

43310-MB9-782

Unavailable

1

HOSE, RR. BRAKE (NOT AVAILABLE)

43310-MB9-782

Unavailable

2

PIPE A, RR. BRAKE MASTER CYLINDER (NOT AVAILABLE) This part replaces 43311-MB9-780.

43311-MB9-781

Unavailable

2

PIPE A, RR. BRAKE MASTER CYLINDER (NOT AVAILABLE)

43311-MB9-781

Unavailable

3

PIPE B, RR. BRAKE CALIPER (NOT AVAILABLE) This part replaces 43312-MB9-780.

43312-MB9-781

Unavailable

3

PIPE B, RR. BRAKE CALIPER (NOT AVAILABLE)

43312-MB9-781

Unavailable

4

PIPE C, RR. BRAKE POWER CONTROL VALVE (NOT AVAILABLE) This part replaces 43313-MB9-780.

43313-MB9-781

Unavailable

4

PIPE C, RR. BRAKE POWER CONTROL VALVE (NOT AVAILABLE)

43313-MB9-781

Unavailable

5

BAND, WIRE

43315-MB9-780

Unavailable

6

MASTER CYLINDER ASSY., RR. BRAKE (NA USE ALT:43510-MB9-P10) This part replaces 43500-MB9-781.

43500-MB9-782

Unavailable

6

MASTER CYLINDER ASSY., RR. BRAKE (NA USE ALT:43510-MB9-P10)

43500-MB9-782

Unavailable

7

BOOT, MASTER CYLINDER

43504-371-013

$9.54

8

CONNECTOR, MASTER CYLINDER (NOT AVAILABLE)

43505-463-006

Unavailable

9

CUP, MASTER CYLINDER OIL (NOT AVAILABLE)

43511-MB9-781

Unavailable

10

HOSE, MASTER CYLINDER (NOT AVAILABLE)

43512-463-006

Unavailable

11

CAP, OIL CUP

43513-MJ6-006

Unavailable

11

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

12

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

13

PISTON SET, MASTER CYLINDER

43520-MB9-781

Unavailable

14

ROD, PUSH (NOT AVAILABLE)

43530-MB9-781

Unavailable

15

VALVE ASSY. A, PRESSURE CONTROL (NOT AVAILABLE)

43560-MB9-781

Unavailable

16

DIAPHRAGM

45520-300-000

$9.05

17

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

17

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$4.06

18

CIRCLIP

46182-500-013

$4.90

19

JOINT, BRAKE ROD (NOT AVAILABLE)

46504-445-771

Unavailable

20

STAY, RR. BRAKE HOSE (NOT AVAILABLE)

61402-MB9-780

Unavailable

21

COLLAR, REFLECTOR SETTING

90129-463-770

$3.15

22

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

22

BOLT, OIL

90145-300-010

$9.68

23

WASHER, OIL BOLT

90545-300-000

$3.99

24

O-RING (14.8X2.4)

91212-422-006

$2.56

25

SCREW-WASHER (4X12)

93893-04012-08

$1.49

25

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

26

NUT, HEX. (8MM)

94001-08000-0S

$1.49

27

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

27

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
