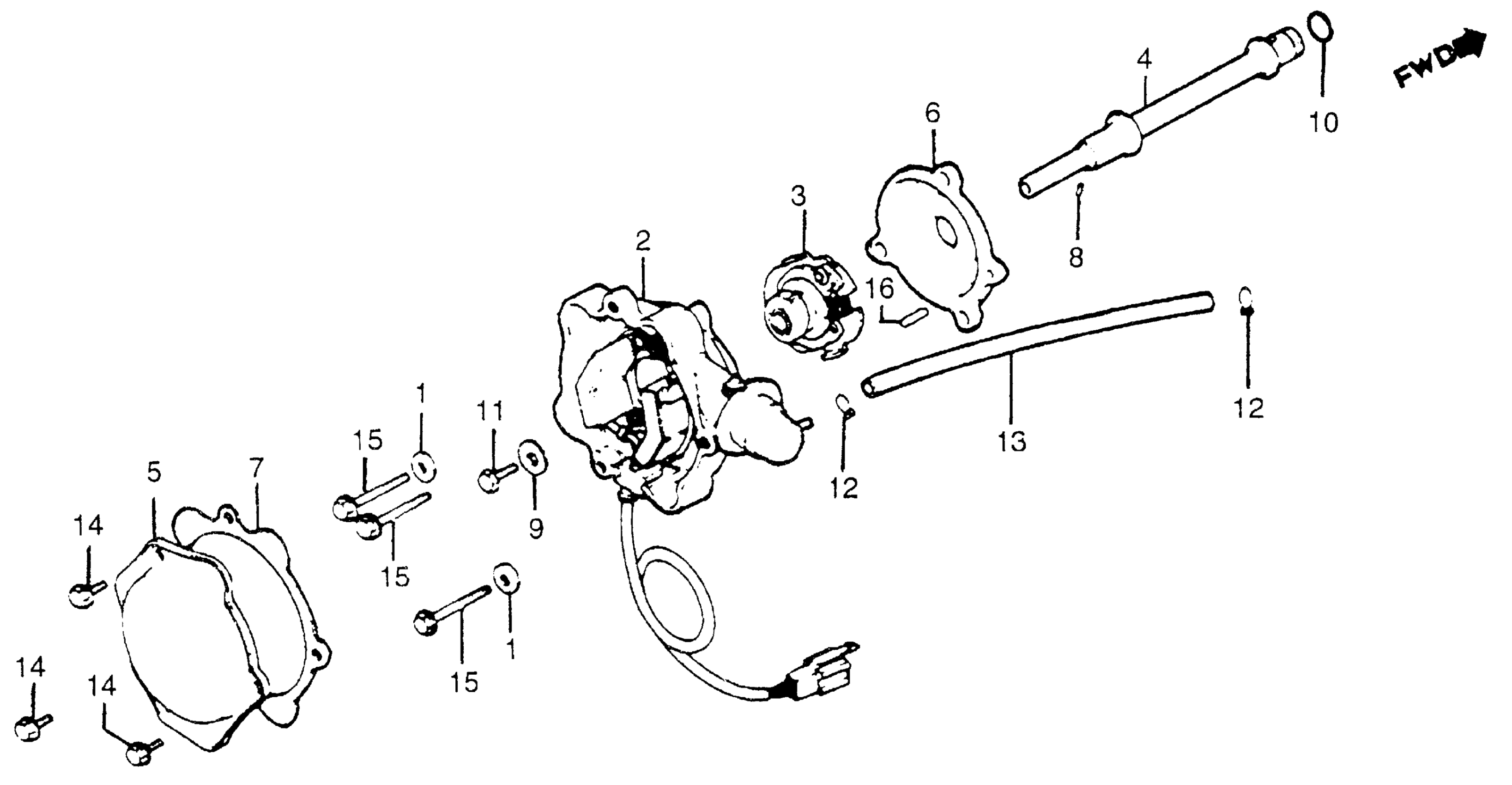

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 PULSE GENERATOR + ADVANCER Diagram

WASHER (6.5MM) (NOT AVAILABLE)

22415-551-000

Unavailable

ALTERNATOR SET This part replaces 30100-463-771.

30100-463-701

Unavailable

ADVANCER ASSY., SPARK (NOT AVAILABLE)

30220-MB9-154

Unavailable

SHAFT, PULSER (NOT AVAILABLE)

30373-463-000

Unavailable

COVER, PULSER (NOT AVAILABLE)

30375-463-000

Unavailable

INSULATOR, PULSER (NOT AVAILABLE)

30376-463-000

Unavailable

GASKET, PULSER COVER (AS) This part replaces 30379-463-000.

30379-463-306

Unavailable

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

O-RING (9.8X2.4)

91305-422-000

$2.47

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

CLIP, TUBE (B6.5)

95002-02650

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X350)

95005-35001-20M

$9.67

BOLT, FLANGE (6X10) This part replaces 96000-06010-02.

96001-06010-02

$1.54

BOLT, FLANGE (6X10)

96001-06010-02

$1.54

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

ROLLER (4X17.8)

96220-40178

$1.49
