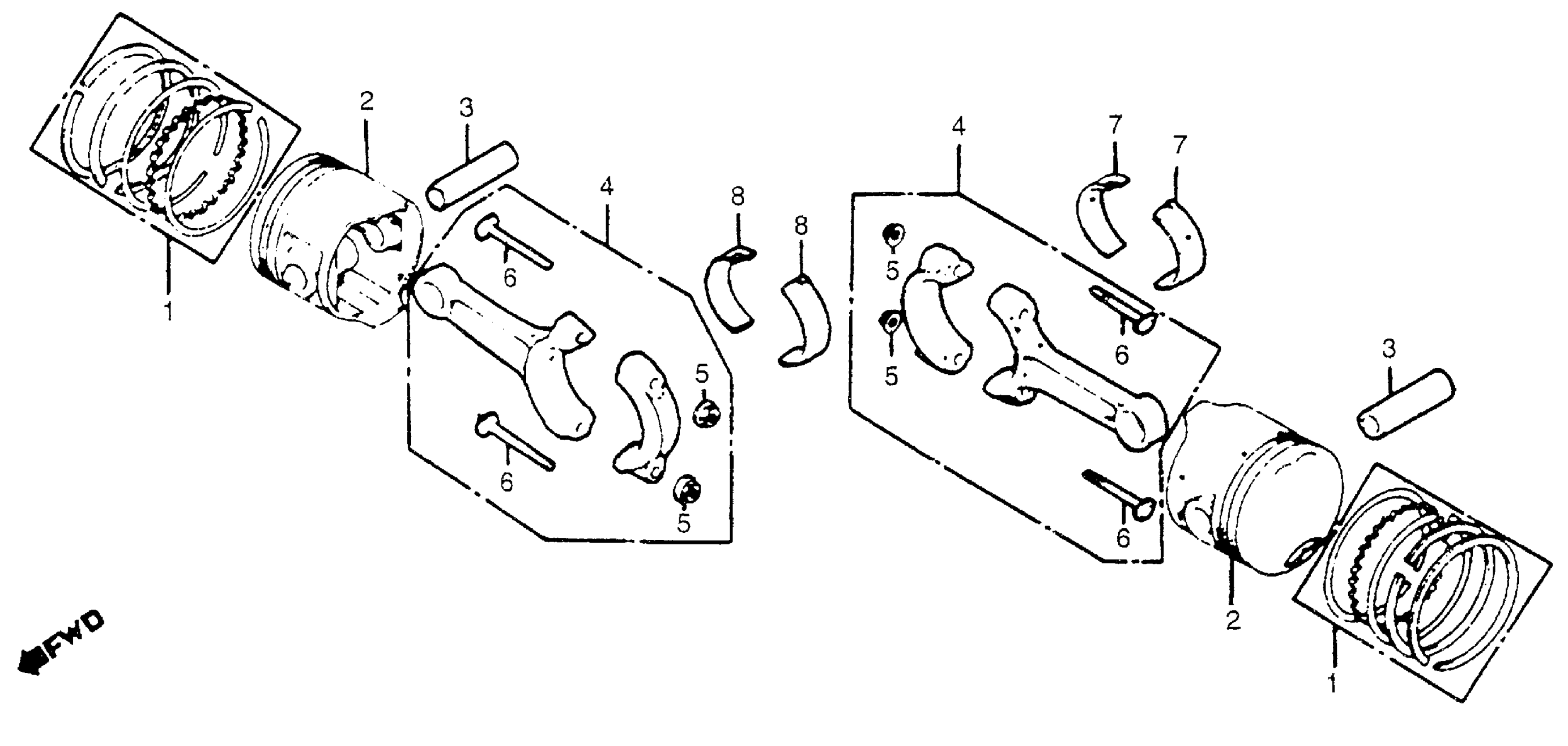

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD)

13011-463-000

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13021-463-000

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE) | (Optional).

13031-463-000

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE) | (Optional).

13041-463-000

Unavailable

1

RING SET, PISTON (1.00) (NOT AVAILABLE) | (Optional).

13051-463-000

Unavailable

2

PISTON (STD) (NOT AVAILABLE)

13101-463-004

Unavailable

2

PISTON (OVER SIZE) (0.25) | (Optional).

13102-463-004

Unavailable

2

PISTON (OVER SIZE) (0.50) (NOT AVAILABLE) | (Optional).

13103-463-004

Unavailable

2

PISTON (OVER SIZE) (0.75) (NOT AVAILABLE) | (Optional).

13104-463-004

Unavailable

2

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-463-004

Unavailable

3

PIN, PISTON

13112-634-000

$17.13

4

ROD ASSY., CONNECTING This part replaces 13201-463-000.

13204-463-405

Unavailable

4

ROD ASSY., CONNECTING This part replaces 13202-463-000.

13204-463-405

Unavailable

4

ROD ASSY., CONNECTING This part replaces 13203-463-000.

13204-463-405

Unavailable

4

ROD ASSY., CONNECTING This part replaces 13204-463-000.

13204-463-405

Unavailable

4

ROD ASSY., CONNECTING

13204-463-405

Unavailable

4

ROD ASSY., CONNECTING This part replaces 13205-463-000.

13204-463-405

Unavailable

4

ROD ASSY., CONNECTING This part replaces 13206-463-000.

13204-463-405

Unavailable

5

NUT, CONNECTING ROD

13205-634-010

$5.26

5

NUT, CONNECTING ROD This part replaces 13205-689-004.

13205-634-010

$5.26

6

BOLT, CONNECTING ROD (NAGOYA RASHI)

13213-463-003

$16.11

6

BOLT, CONNECTING ROD (NAGOYA RASHI) This part replaces 13213-463-004.

13213-463-003

$16.11

7

BEARING A, CONNECTING ROD (2&4 BLUE) (NOT AVAILABLE)

13215-463-003

Unavailable

7

BEARING B, CONNECTING ROD (2&4 BLACK) (NOT AVAILABLE)

13216-463-003

Unavailable

7

BEARING C, CONNECTING ROD (2&4 BROWN)

13217-463-003

Unavailable

7

BEARING D, CONNECTING ROD (2&4 GREEN)

13218-463-003

Unavailable

7

BEARING E, CONNECTING ROD (2&4 YELLOW) (NOT AVAILABLE)

13219-463-003

Unavailable

8

BEARING A, CONNECTING ROD (1&3 BLUE) (NOT AVAILABLE)

13221-463-003

Unavailable

8

BEARING B, CONNECTING ROD (1&3 BLACK) (NOT AVAILABLE)

13222-463-003

Unavailable

8

BEARING C, CONNECTING ROD (1&3 BROWN)

13223-463-003

Unavailable

8

BEARING D, CONNECTING ROD (1&3 GREEN)

13224-463-003

Unavailable

8

BEARING E, CONNECTING ROD (1&3 YELLOW) (NOT AVAILABLE)

13225-463-003

Unavailable
