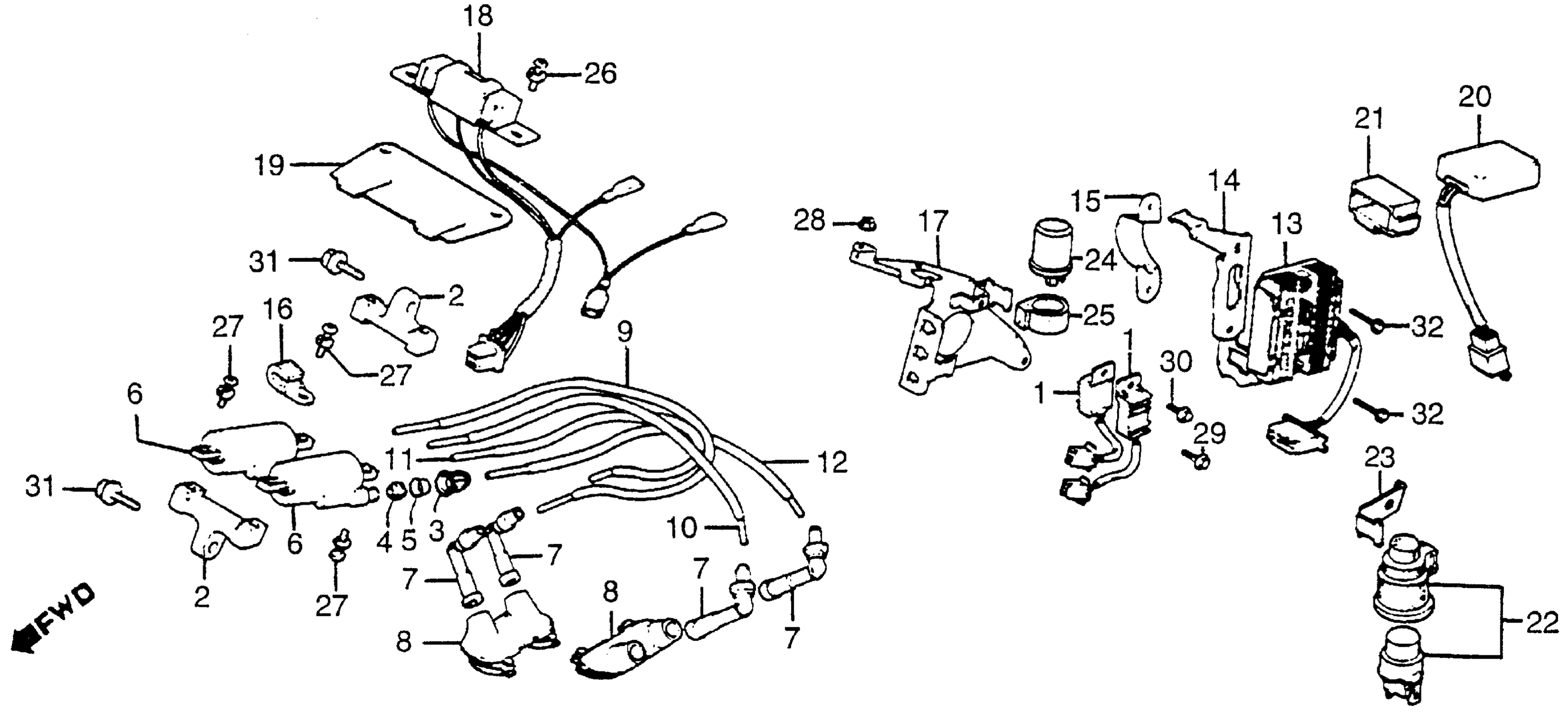

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 IGNITION COIL + RECTIFIER Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30400-MB9-951

Unavailable

1

MODULE, IGNITION CONTROL (CDI) (OKI) (NOT AVAILABLE) This part replaces 30400-461-155.

30400-MA4-601

Unavailable

2

STAY A, IGNITION COIL (NOT AVAILABLE)

30501-MB9-000

Unavailable

3

CAP, SCREW

30501-428-003

Unavailable

4

SEAL, RUBBER

30502-428-003

Unavailable

5

WASHER, CAP

30503-428-003

Unavailable

6

COIL, IGNITION (NOT AVAILABLE)

30505-MB9-003

Unavailable

7

CAP ASSY. This part replaces 30700-KR3-670.

30700-KR3-671

$17.79

7

CAP ASSY. This part replaces 30700-MB9-153.

30700-KR3-671

$17.79

8

SEAL, SUPPRESSOR (NOT AVAILABLE)

30705-463-000

Unavailable

9

WIRE, IGNITION (1-1)

30750-MG9-P00

$21.78

9

WIRE SET, IGNITION (1-1) This part replaces 30751-463-741.

30750-MG9-P00

$21.78

10

WIRE, IGNITION (2-2)

30750-MG9-P00

$21.78

10

WIRE SET, IGNITION (1-1) This part replaces 30752-463-741.

30750-MG9-P00

$21.78

11

WIRE, IGNITION (3-3)

30750-MG9-P00

$21.78

11

WIRE SET, IGNITION (1-1) This part replaces 30753-463-741.

30750-MG9-P00

$21.78

12

WIRE, IGNITION (4-4)

30750-MG9-P00

$21.78

12

WIRE SET, IGNITION (1-1) This part replaces 30754-463-741.

30750-MG9-P00

$21.78

13

RECTIFIER ASSY., REGULATE

31600-MG9-010

Unavailable

13

RECTIFIER ASSY., REGULATE This part replaces 31600-463-008.

31600-MG9-010

Unavailable

14

BAND A, REGULATOR RECTIFIER (NOT AVAILABLE)

31605-MB9-000

Unavailable

15

BAND B, REGULATOR RECTIFIER (NOT AVAILABLE)

31606-463-000

Unavailable

16

CLAMP, CABLE

32111-323-000

$3.71

17

PLATE, ELECTRIC (NOT AVAILABLE)

32405-MB9-780

Unavailable

18

RESISTOR ASSY. (NOT AVAILABLE)

34930-MB9-003

Unavailable

19

STAY, RESISTOR (NOT AVAILABLE)

34931-MB9-000

Unavailable

20

CANCEL UNIT, TURN SIGNAL (NOT AVAILABLE)

35220-MB9-781

Unavailable

21

RUBBER

35229-MB9-781

Unavailable

24

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MB0-004.

38301-KK9-952

$65.61

24

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MG9-681.

38301-KK9-952

$65.61

25

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.51

26

SCREW-WASHER (6X12)

93892-06012-08

$1.16

27

SCREW-WASHER (6X25)

93892-06025-08

Unavailable

28

NUT, FLANGE (6MM)

94050-06080

$0.59

29

BOLT, FLANGE (6X10)

95700-06010-08

$1.46

29

BOLT, FLANGE (6X10)

95701-06010-08

$1.46

30

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.32

30

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

31

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$0.35

31

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

32

BOLT, FLANGE (6X40) This part replaces 95700-06040-08.

95701-06040-08

$1.67

32

BOLT, FLANGE (6X40)

95701-06040-08

$1.67
