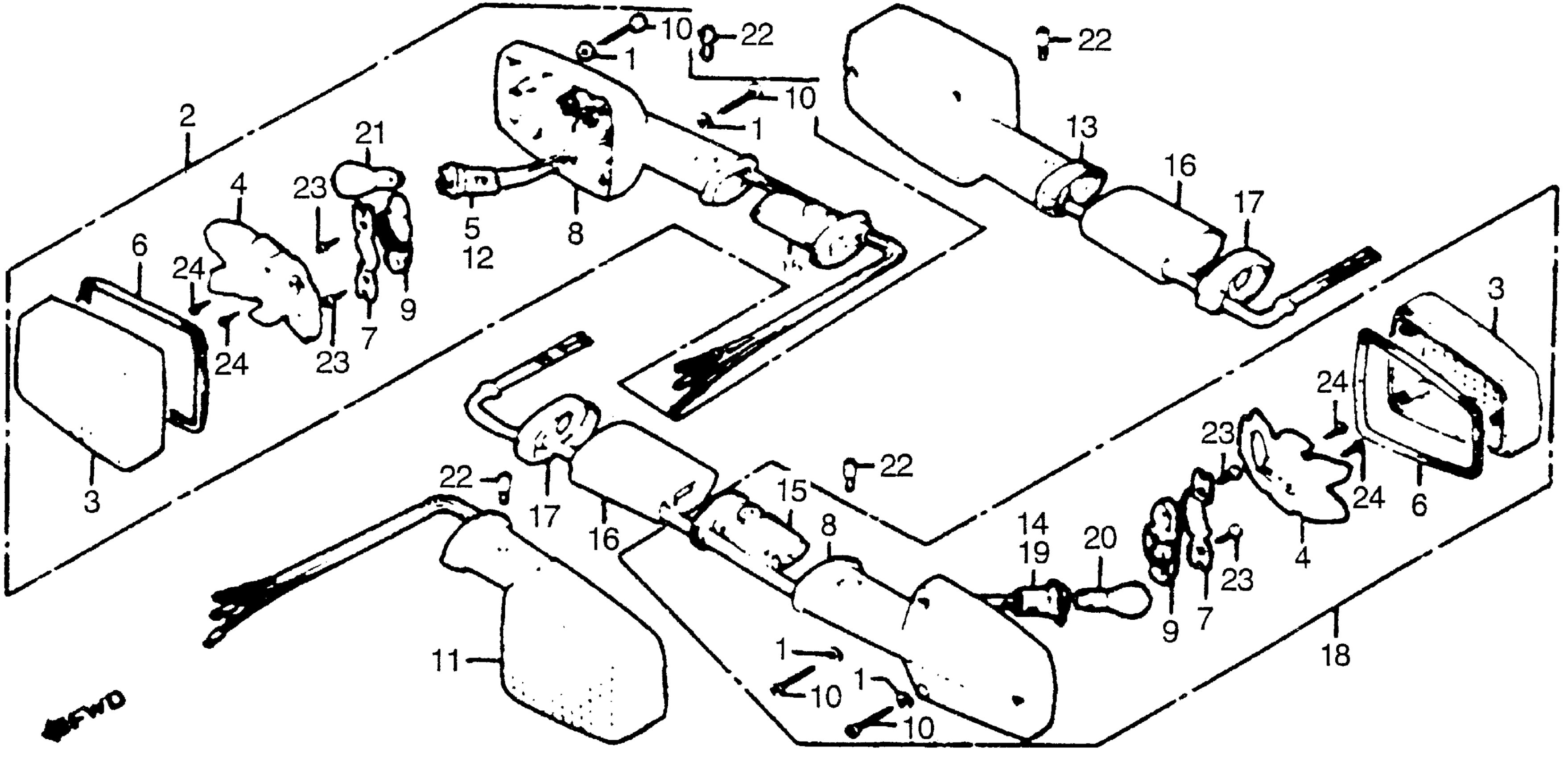

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 GL1100 TURN SIGNAL Diagram

#

Description
Price

1

WASHER

33318-567-003

$1.58

2

TURN SIGNAL, R. FR.

33400-MA1-679

Unavailable

2

TURN SIGNAL, R. FR. This part replaces 33400-MB9-672.

33400-MA1-679

Unavailable

3

LENS, TURN SIGNAL

33402-431-782

Unavailable

4

REFLECTOR, TURN SIGNAL (NOT AVAILABLE)

33403-431-782

Unavailable

5

SOCKET, R. FR. TURN SIGNAL

33405-425-672

Unavailable

6

GASKET, TURN SIGNAL LENS

33406-431-781

Unavailable

7

HOLDER, SOCKET (NOT AVAILABLE)

33407-431-781

Unavailable

8

BASE, TURN SIGNAL (NOT AVAILABLE)

33409-MA1-671

Unavailable

9

RUBBER, SOCKET

33411-431-782

Unavailable

10

SCREW, TAPPING (4X25)

33420-431-780

Unavailable

11

TURN SIGNAL, R. FR.

33400-MA1-679

Unavailable

11

TURN SIGNAL, R. FR. This part replaces 33450-MB9-672.

33400-MA1-679

Unavailable

12

SOCKET, L. FR. TURN SIGNAL

33455-425-672

Unavailable

13

TURN SIGNAL, L. RR. (NOT AVAILABLE) This part replaces 33600-MB9-672.

33650-MA1-679

Unavailable

14

SOCKET, R. RR. TURN SIGNAL

33605-431-782

$14.18

15

RUBBER, RR. TURN SIGNAL MOUNT (NOT AVAILABLE)

33609-445-631

Unavailable

16

COVER, RR. TURN SIGNAL (NOT AVAILABLE)

33611-MB9-000

Unavailable

17

RUBBER, RR. TURN SIGNAL (NOT AVAILABLE)

33612-463-000

Unavailable

18

TURN SIGNAL, L. RR. (NOT AVAILABLE) This part replaces 33650-MB9-672.

33650-MA1-679

Unavailable

19

SOCKET COMP.L.RR. This part replaces 33655-431-782.

33655-MA1-671

Unavailable

20

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

21

BULB (12V 23/8W) (STANLEY)

34905-425-671

$6.67

22

SCREW, OVAL (5X8)

90380-445-630

Unavailable

23

SCREW, TAPPING (3X6)

93901-22020

$1.49

24

SCREW, TAPPING (4X8)

93901-24120

$2.30
