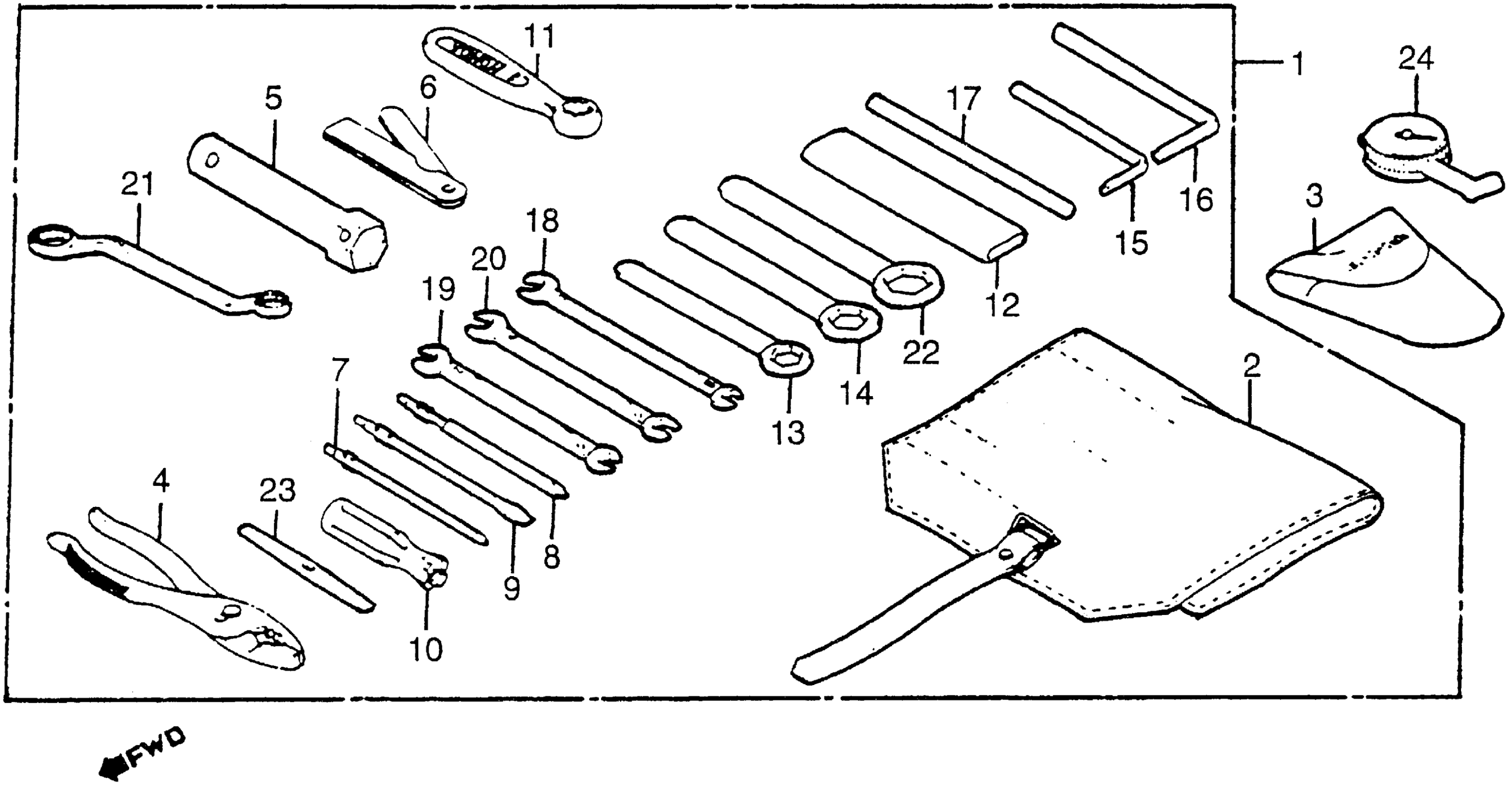

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 GL1100/ITOOLS Diagram

#

Description
Price

1

TOOL SET (NOT AVAILABLE)

89010-MB9-000

Unavailable

2

BAG, TOOL (NOT AVAILABLE)

89101-431-671

Unavailable

3

BAG, AIR PRESSURE GAUGE

89102-469-003

$6.57

4

PLIERS (150) (NOT AVAILABLE)

89210-431-670

Unavailable

5

WRENCH, PLUG BOX (NOT AVAILABLE)

89211-431-671

Unavailable

6

GAUGE, THICKNESS

89212-MB9-000

Unavailable

7

SCREWDRIVER 2, PHILLIPS This part replaces 89213-431-670.

89227-422-000

$8.74

7

SCREWDRIVER 2, PHILLIPS

89227-422-000

$8.74

8

SCREWDRIVER 3, PHILLIPS (NOT AVAILABLE)

89214-431-670

Unavailable

9

SCREWDRIVER 2, STRAIGHT SLOT

89215-431-670

$7.72

9

SCREWDRIVER 2, STRAIGHT SLOT

89229-422-000

Unavailable

10

GRIP (NOT AVAILABLE)

89216-431-670

Unavailable

11

WRENCH, EYE (14)

89217-MB9-000

Unavailable

12

HANDLE, EYE WRENCH (120MM) (NOT AVAILABLE) This part replaces 89217-431-670.

89217-422-000

Unavailable

13

WRENCH, EYE (17) This part replaces 89218-MB9-870.

89218-MN8-000

$18.72

13

WRENCH, EYE (17) This part replaces 89218-431-670.

89218-MN8-000

$18.72

14

WRENCH, EYE (19) (NOT AVAILABLE)

89219-431-670

Unavailable

15

WRENCH, HEX. (6MM)

89221-371-000

$4.28

16

WRENCH, HEX. (8MM) (NOT AVAILABLE)

89222-371-000

Unavailable

17

BAR A, HANDLE (NOT AVAILABLE)

89223-431-670

Unavailable

18

WRENCH (8X12) (OPEN END) This part replaces 89224-431-670.

99001-08120

$2.75

18

SPANNER (8X12)

99001-08120

$2.75

19

SPANNER (10X12) (NOT AVAILABLE)

89225-431-670

Unavailable

20

SPANNER (10X14)

89226-431-670

Unavailable

21

WRENCH, EYE (10X12) (NOT AVAILABLE)

89227-431-670

Unavailable

22

WRENCH, EYE (24)

89229-463-770

$8.51

23

LEVER, TIRE This part replaces 89231-463-000.

99003-40000

$1.49

23

LEVER

99003-40000

$1.49

24

GAUGE, AIR PRESSURE This part replaces 89301-MG9-951.

89301-MN5-003

$28.98

24

GAUGE, AIR PRESSURE

89301-MN5-003

$28.98

24

GAUGE, AIR PRESSURE This part replaces 89301-463-771.

89301-MN5-003

$28.98
