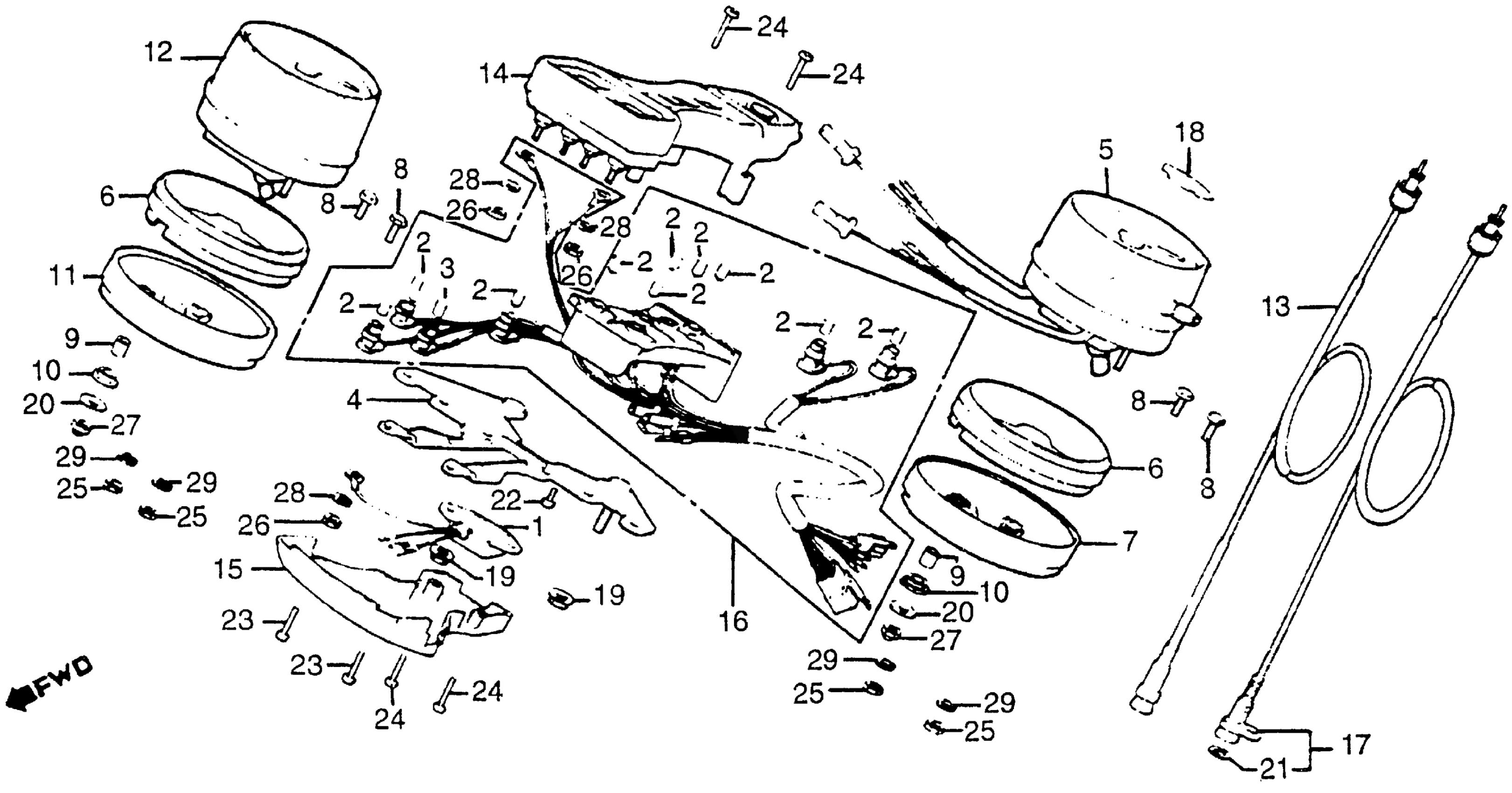

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 GL1100/IINSTRUMENTS Diagram

#

Description
Price

1

REGULATOR (7V)

31410-463-008

Unavailable

2

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

2

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

2

BULB (14V 3.4W) (NS)

37237-SA5-003

$4.17

2

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

3

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

34908-MB9-871

$2.78

4

STAY, INSTRUMENT SETTING (NOT AVAILABLE) This part replaces 37120-463-008.

37120-MG9-671

Unavailable

5

SPEEDOMETER ASSY. (MPH/KPH) (NOT AVAILABLE)

37200-MB9-780

Unavailable

6

RUBBER, SPEEDOMETER

37235-323-700

$22.28

7

PLATE, SPEEDOMETER (LOWER)

37236-426-000

Unavailable

8

BOLT, INSTRUMENT SETTING (6MM) (NOT AVAILABLE)

37238-323-700

Unavailable

9

COLLAR, INSTRUMENT SETTING

37243-323-700

Unavailable

10

RUBBER, METER SETTING

37244-307-670

$2.67

11

PLATE, TACHOMETER (LOWER)

37246-426-000

Unavailable

12

TACHOMETER ASSY. This part replaces 37250-MB9-780.

37250-MB9-640

Unavailable

13

CABLE ASSY., TACHOMETER

37260-463-000

Unavailable

14

COVER ASSY., PILOT (UPPER) (NOT AVAILABLE)

37610-463-741

Unavailable

15

COVER, PILOT (LOWER)

37617-463-008

Unavailable

16

WIRE, PILOT

37619-MB9-780

Unavailable

17

CABLE ASSY., SPEEDOMETER

44830-MB9-780

Unavailable

18

LABEL, BREAK IN CAUTION (NOT AVAILABLE)

87523-410-790

Unavailable

19

NUT, HEX. (8MM)

90309-357-000

$3.40

20

WASHER (6.5X18)

90545-323-700

$1.89

21

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

21

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

21

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

22

SCREW, PAN (4X6)

93500-04006-0A

$1.49

23

SCREW, PAN (4X20)

93500-04020-0G

$1.49

24

SCREW, PAN (4X25)

93500-04025-0G

$1.49

25

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

26

NUT, HEX. (4MM)

94002-04000-0S

$1.49

27

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

27

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

27

NUT, CAP (6MM)

94021-06020

$1.73

27

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

27

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

28

WASHER, SPRING (4MM)

94111-04000

$1.49

29

WASHER, SPRING (6MM)

94111-06000

$1.49
