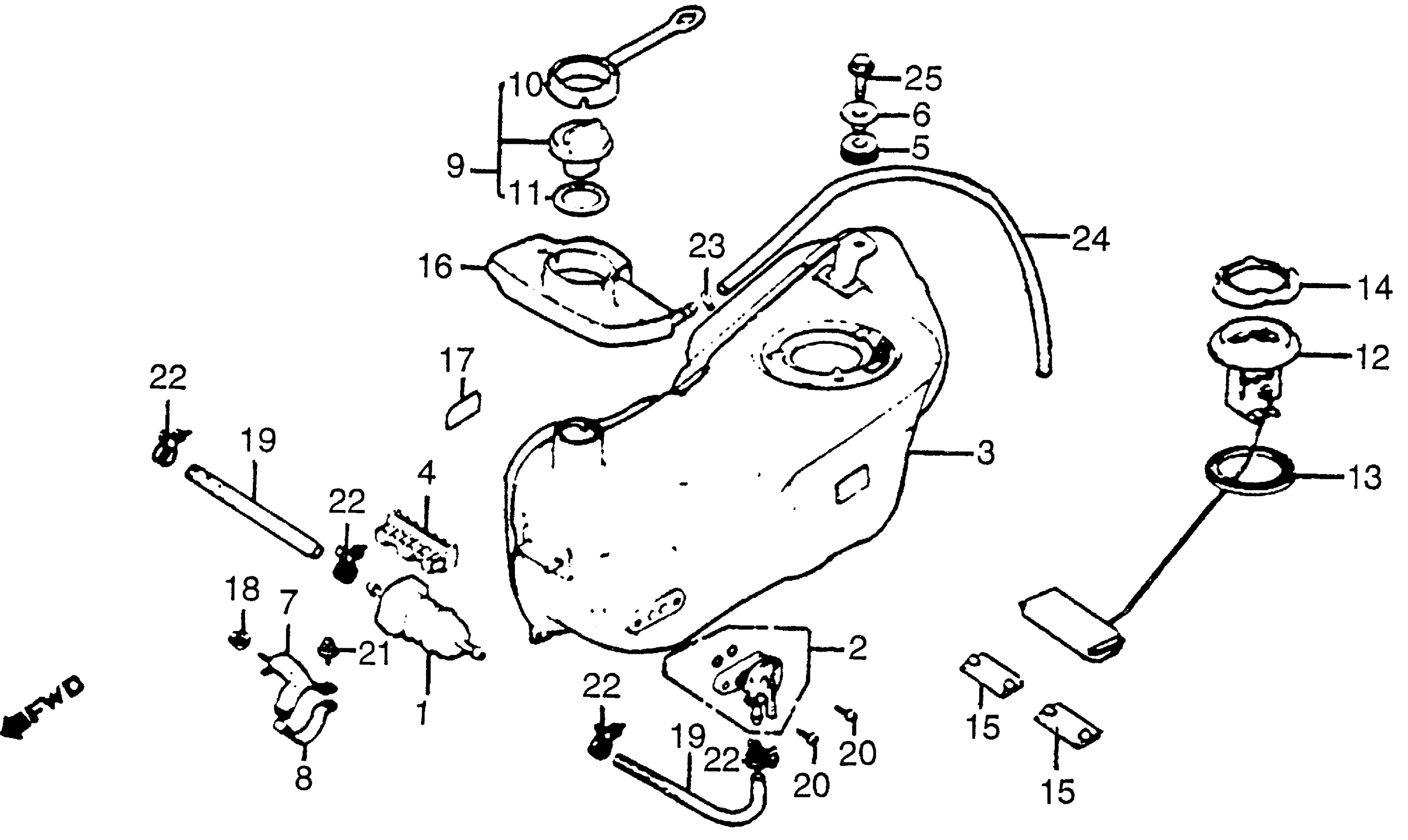

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 FUEL TANK Diagram

#

Description
Price

1

FILTER, FUEL

16900-371-004

$30.23

2

PETCOCK ASSY.

16950-371-025

$58.67

3

TANK, FUEL (NOT AVAILABLE)

17510-463-000

Unavailable

4

RUBBER B, FUEL TANK MOUNT (NOT AVAILABLE)

17615-463-000

Unavailable

5

RUBBER C, FUEL TANK SETTING (NOT AVAILABLE)

17616-371-000

Unavailable

6

COLLAR, TANK SET (FUEL)

17618-371-000

Unavailable

7

STAY A, STRAINER (NOT AVAILABLE)

17626-371-000

Unavailable

8

STAY B, STRAINER

17628-371-000

Unavailable

9

CAP, FUEL FILLER This part replaces 17660-MB9-000.

17660-MB9-505

Unavailable

10

RING, FUEL FILLER CAP (NOT AVAILABLE)

17671-463-000

Unavailable

11

GASKET, FUEL FILLER CAP (NOT AVAILABLE)

17682-MB9-300

Unavailable

12

FUEL UNIT (NOT AVAILABLE)

37800-MB9-950

Unavailable

13

GASKET, BASE

37801-689-000

$4.90

14

RETAINER, FUEL UNIT (NOT AVAILABLE)

37802-371-000

Unavailable

15

RUBBER, SEAT SETTING

77204-312-000

$5.05

16

BOX, FUEL TANK (NOT AVAILABLE)

83502-463-000

Unavailable

17

LABEL, HELMET HOLDER

87511-323-670

$2.72

18

NUT, FLANGE (5MM) This part replaces 90117-371-003.

94050-05000

$1.49

18

NUT, FLANGE (5MM)

94050-05000

$1.49

19

HOSE, FUEL (5.5X150)

91455-371-000

$14.04

20

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

20

SCREW, PAN (6X12)

93500-06012-0A

$1.49

20

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

21

SCREW-WASHER (5X12)

93893-05012-00

$1.49

22

CLIP, TUBE (A12)

95002-01120

$2.75

23

CLIP, TUBE (B12.5)

95002-02130

$1.49

24

BULK HOSE, VINYL (8X12X8000) (8X12X770)

95003-23008-60M

Unavailable

25

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$2.06

25

BOLT, FLANGE (8X28)

95701-08028-08

$2.06
